Operation and installation manual SOLIVIA 2.5 EU G3

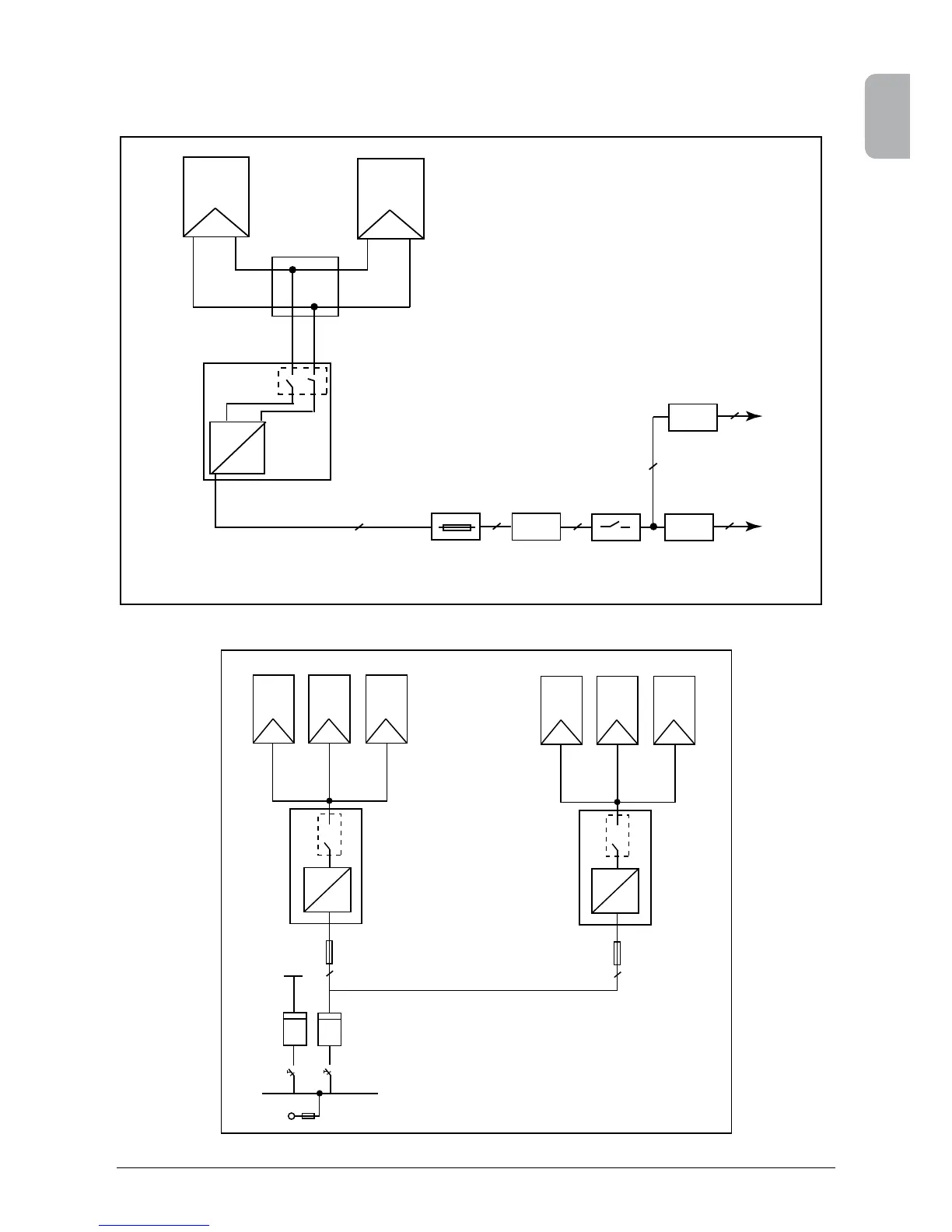

10.2 Overview of connection diagrams
+
-
DC terminal strip
DC disconnector
-
~
Solivia 2.5
3 3
Z
Meter for
power feed-in
3
Z
3
3
3
Meter for
power
consumption
House
connection
box
Selective
main line
circuit breaker
House
connection
line
Consumer
equipment
Automatic
circuit breaker
type B 16 A
+
-
PV generator
PV generator
+
-
DC disconnector
-
~
Solivia 2.5
Automatic circuit
breaker
type B 16 A
PV generator
DC disconnector
-
~
Automatic
circuit breaker
type B 16 A
PV generator
kWh
kWh
Customer
Meter for
power feed-in
Meter for
power
consumption
Solivia 2.5
