Delta VFD-EL-W Series - NPN and PNP Mode Wiring

To Next Page

To Previous Page

Chapter 2 Installation and Wiring



VFD-EL-W

2-3

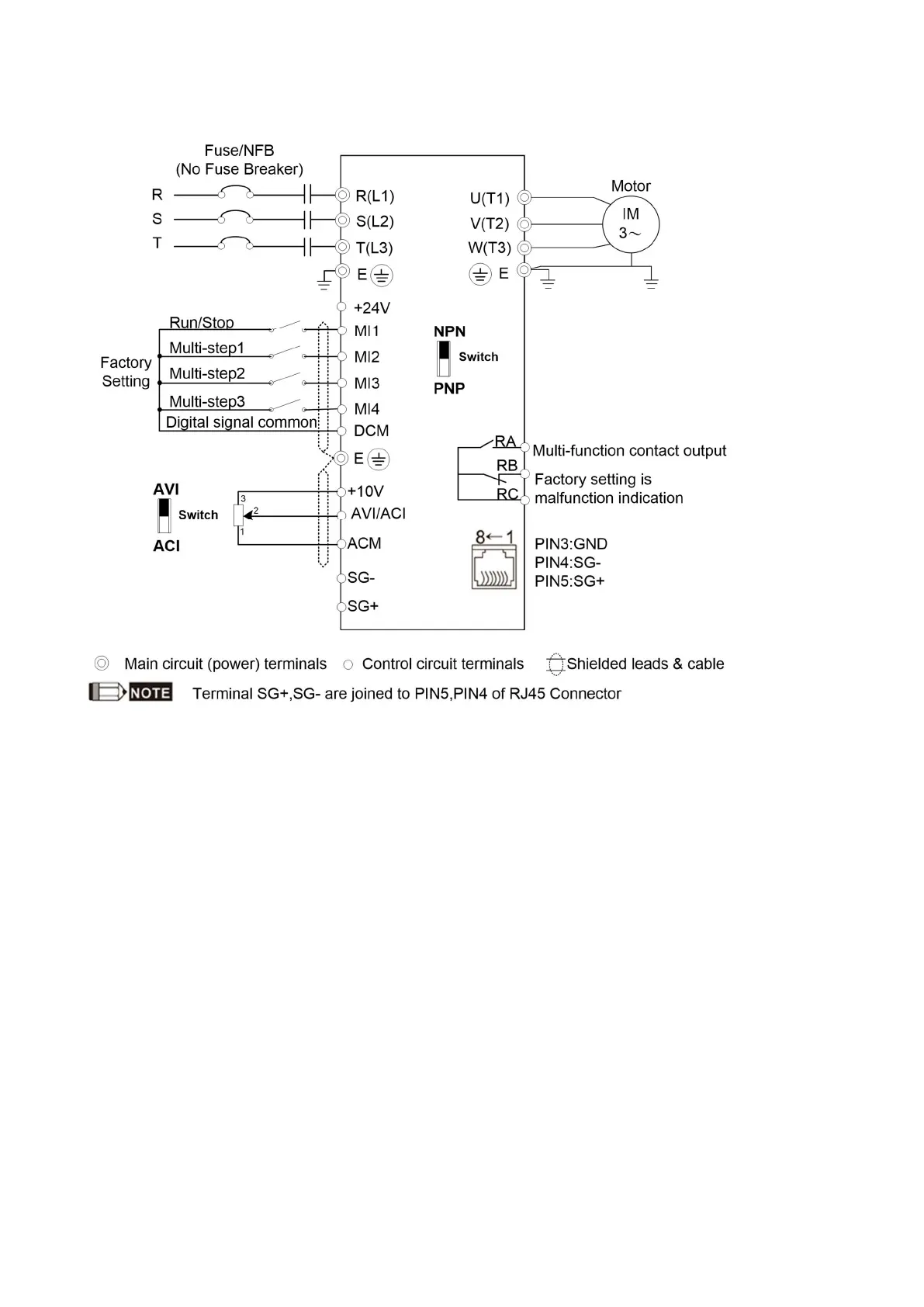

 460V Three-phase

VFD004EL43W(-1), VFD007EL43W(-1), VFD015EL43W(-1), VFD022EL43W(-1), VFD040EL43W(-1)
