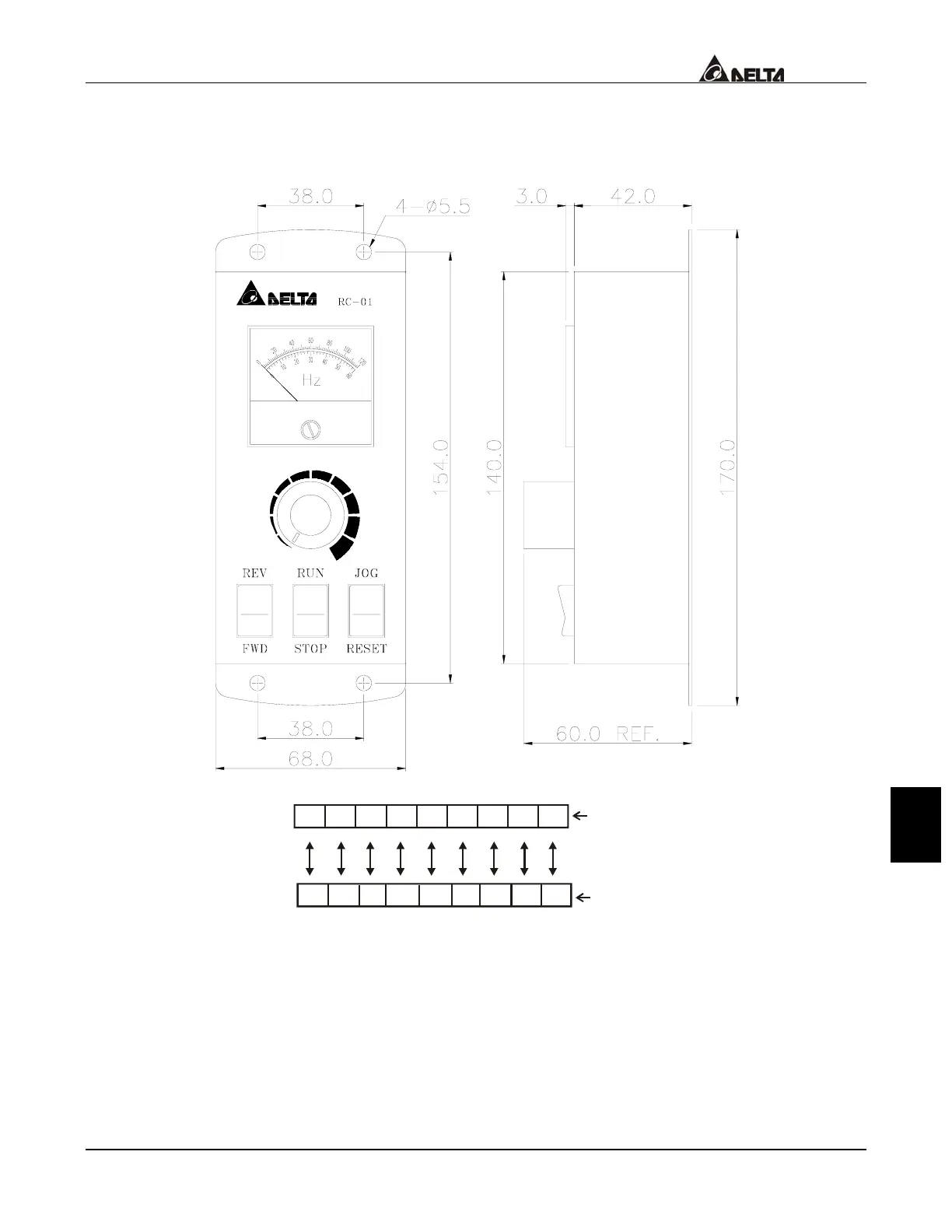

B.5 Remote Controller RC-01
Unit: mm (inches)
AFM ACM +10VAVI DCMMI5 FWD REV JOG
86
5
41615141311
RC-01
Termina l
block
(Wiring
connections)
VFD-B
I/O
Bloc
k
VFD-B Programming:
Pr.02-00 set to 1
Pr.02-01 set to 1 (external controls)
Pr.02-05 set to 1 (setting Run/Stop and Fwd/Rev controls)
Pr.04-08 (MI5) set to 8 (External reset)
