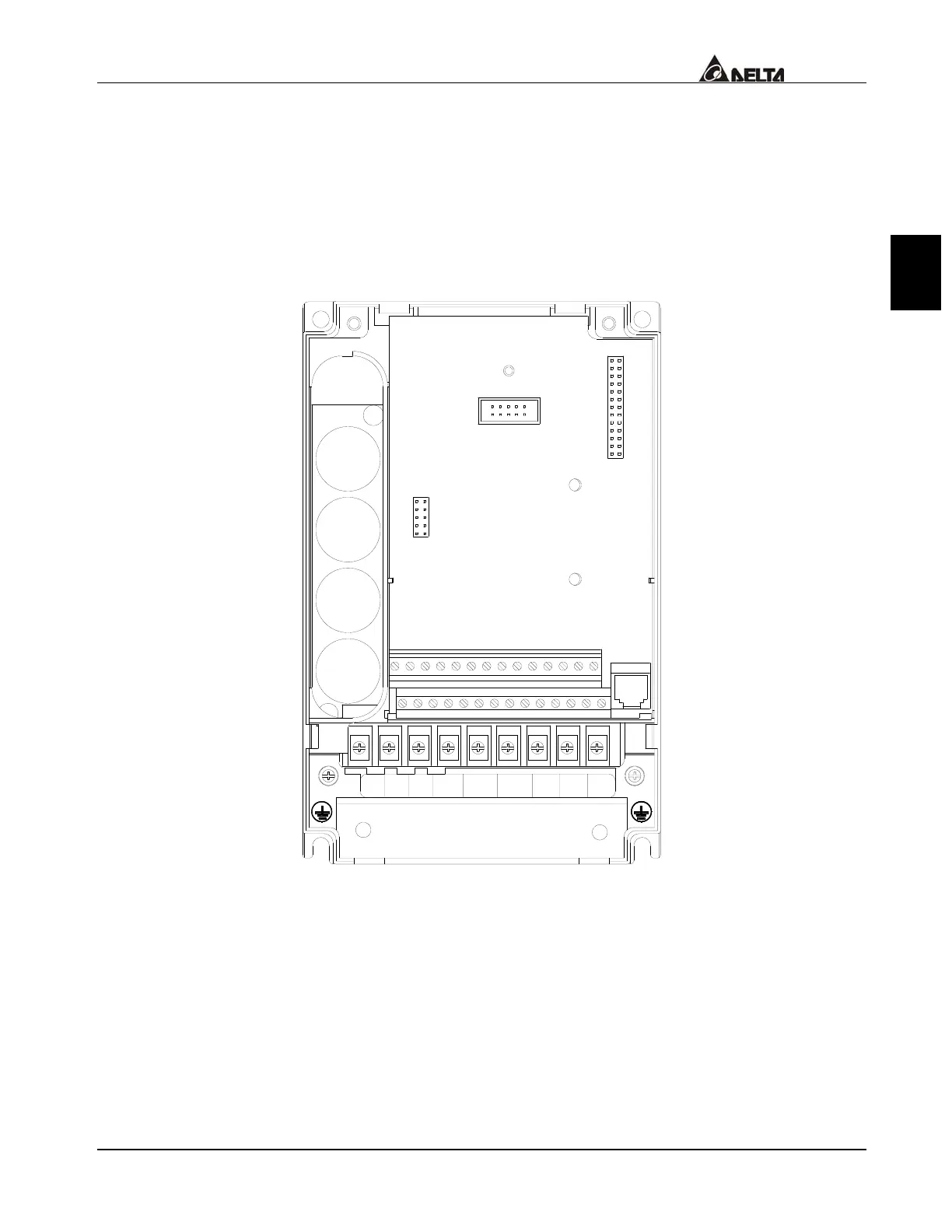

3.5 Main Circuit Wiring
1HP to 3HP (VFD007B23A, VFD007B43A, VFD007B21A, VFD015B21A,
VFD015B23A, VFD015B43A, VFD015B21B, VFD015B23B,
VFD022B23B, VFD022B43B)
L1
/
T
S
/
/
U
V
W
/
/
/
T3
T2
T1
+2
/
B1
R
L2
L3
+1 B2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG stranded wire, 12-18 AWG solid wire
Wire Type: Copper only, 75°
C
