Chapter 7 Optional AccessoriesMS300

7-9 NEMA 1 / UL Type 1 Kit

Conduit boxes installation

Frame A (A1, A2)

Conduit box model: MKM-CBA0

Frame A (A3–A5)

Conduit box model: MKM-CBA

Unit: mm (inch)

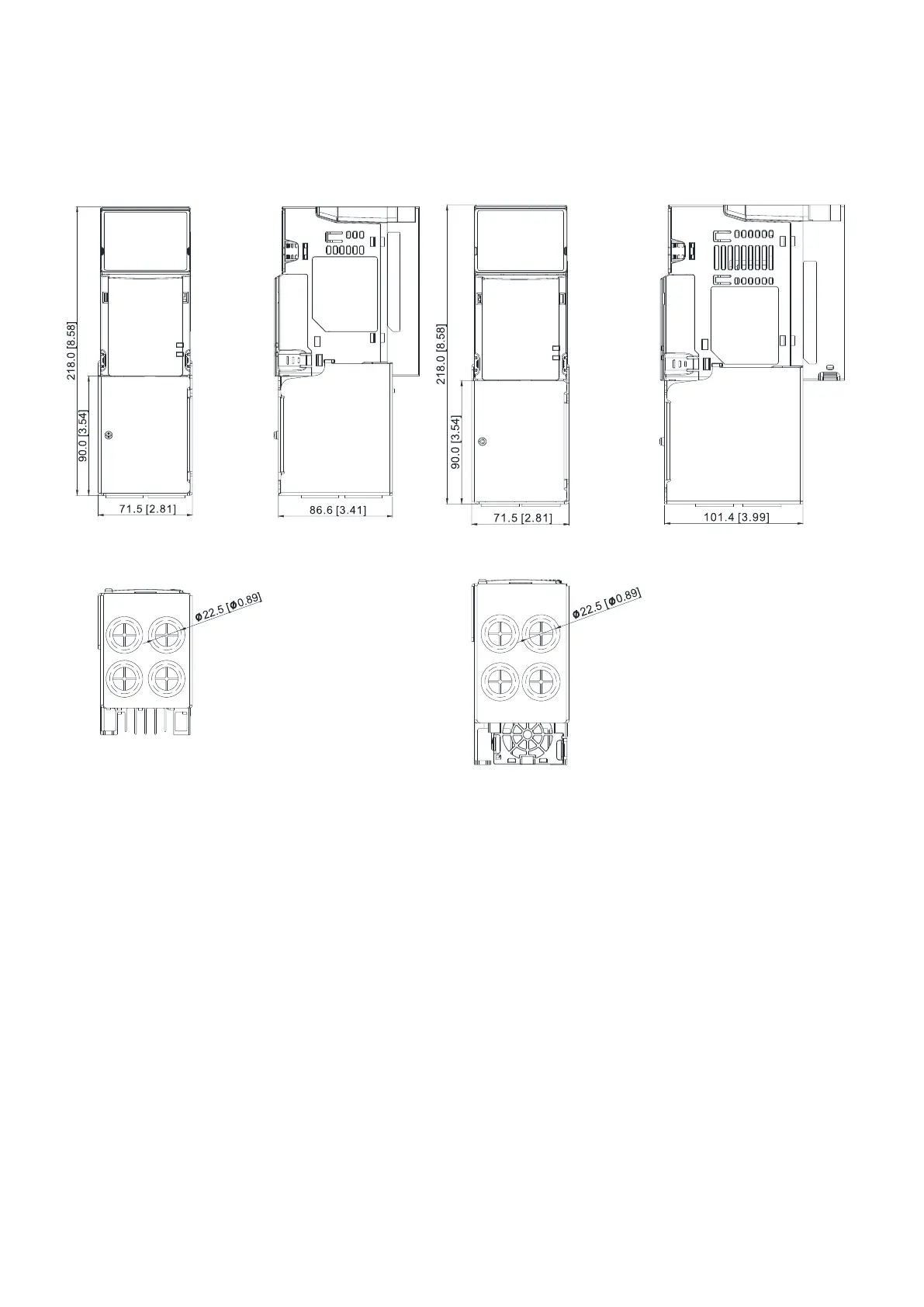

Figure 7-49

Figure 7-50
