Chapter 2 DimensionsMS300
16

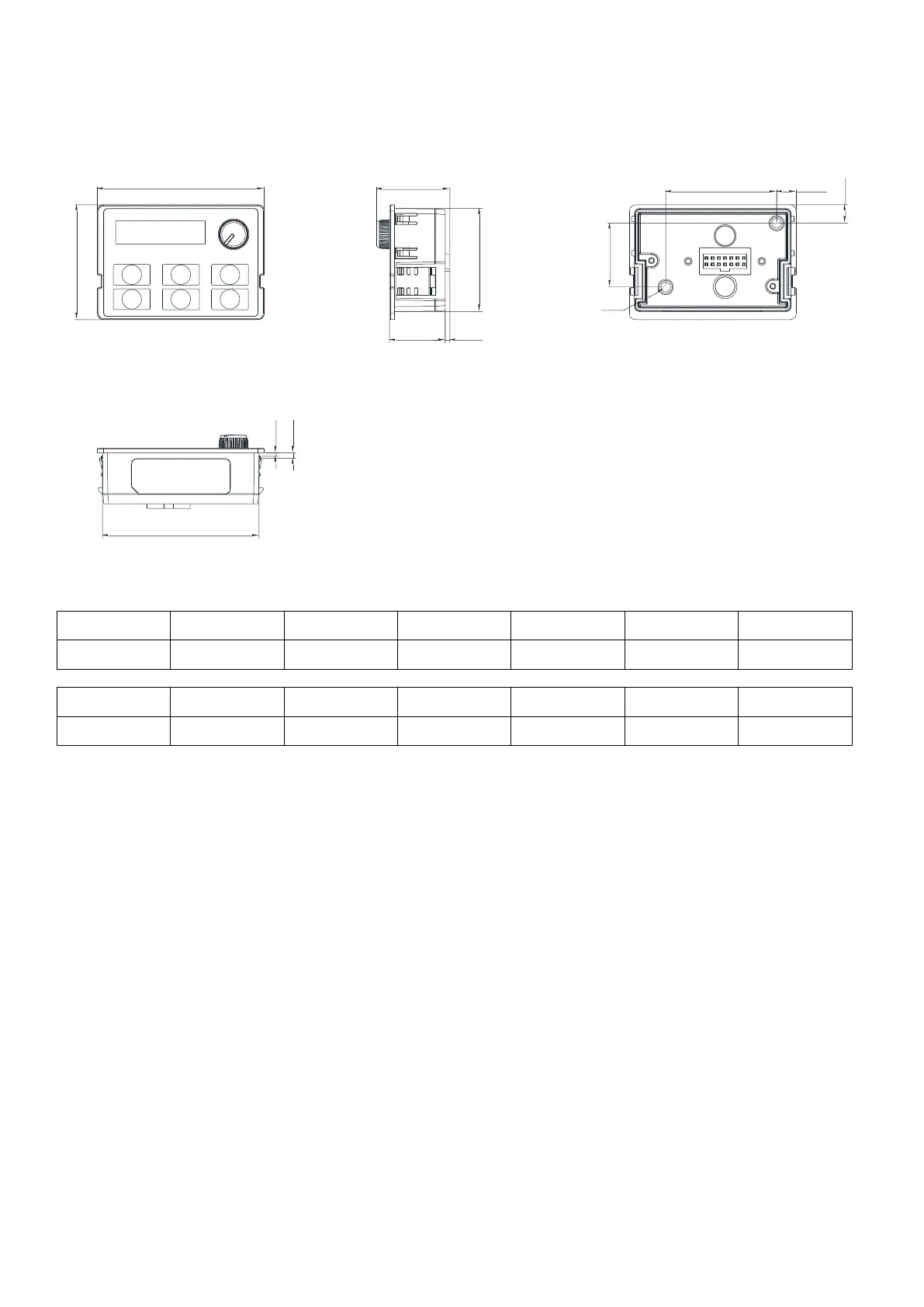

2-7 Digital Keypad
KPMS-LE01
Figure 2-7
Unit: mm (inch)
W
W1
W2
W3
H
H1
H2
68.0 (2.67)
63.8 (2.51)
45.2 (1.78)
8.0 (0.31)
46.8 (1.84)
42.0 (1.65)
26.0 (1.02)
H3
D
D1
D2
D3
D4
S1
7.5 (0.31)
30.0 (1.18)
22.7 (0.89)
2.0 (0.08)
2.2 (0.09)
1.3 (0.05)
M3*0.5(2X)
Table 2-7
W
H
D
D1 D2
W2
W3
H3
S1
D4
D3
H1
W1
W
H
D
D1
D2
S1
W2
W3
H3
D4
D3
W1
H1
KPMS-LE01
KPMH-LC01
H2
H2
