Chapter 7 Optional AccessoriesMS300
104
7-10 Fan Kit
Frame
Fan Model
Fan Kit
A
MKM-FKMA
Figure 7-66
B
MKM-FKMB
C
MKM-FKMC
D
MKM-FKMD
E
MKM-FKME
F
MKM-FKMF

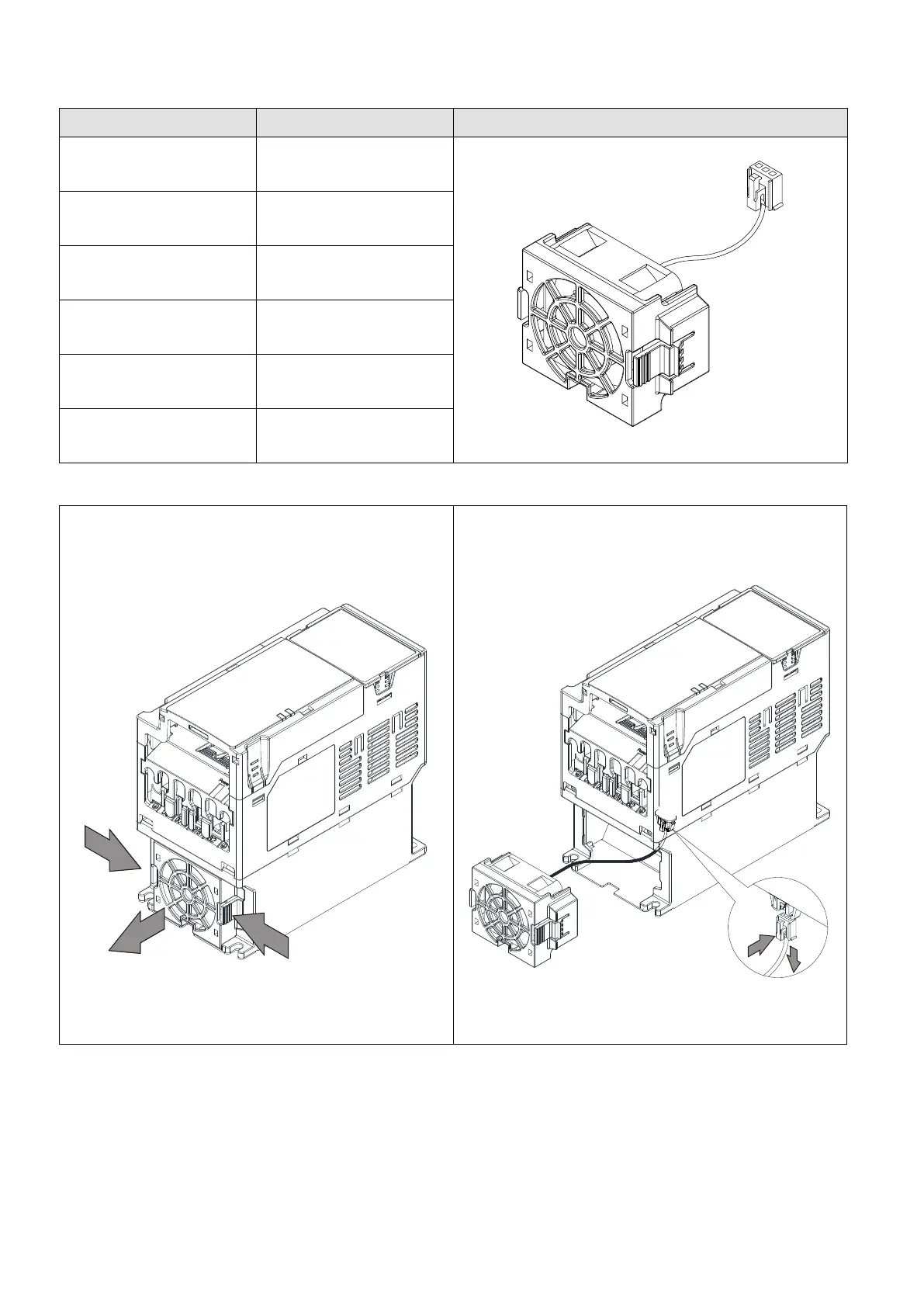

Fan Removal
1. As shown in the figure below, press the tabs
on both sides of the fan to remove it.
2. Disconnect the power cable while removing
the fan.
Figure 7-67
Figure 7-68
FAN KIT MODEL NAME:
FRAME A: MKM-FKMA
FRAME B: MKM-FKMB
FRAME C: MKM-FKMC
FRAME D: MKM-FKMD
FRAME E/F: MKM-FKMF
