8-7 CMM-EC02 – Communication Extension Card, EtherCAT
8-7-1 Product Profile

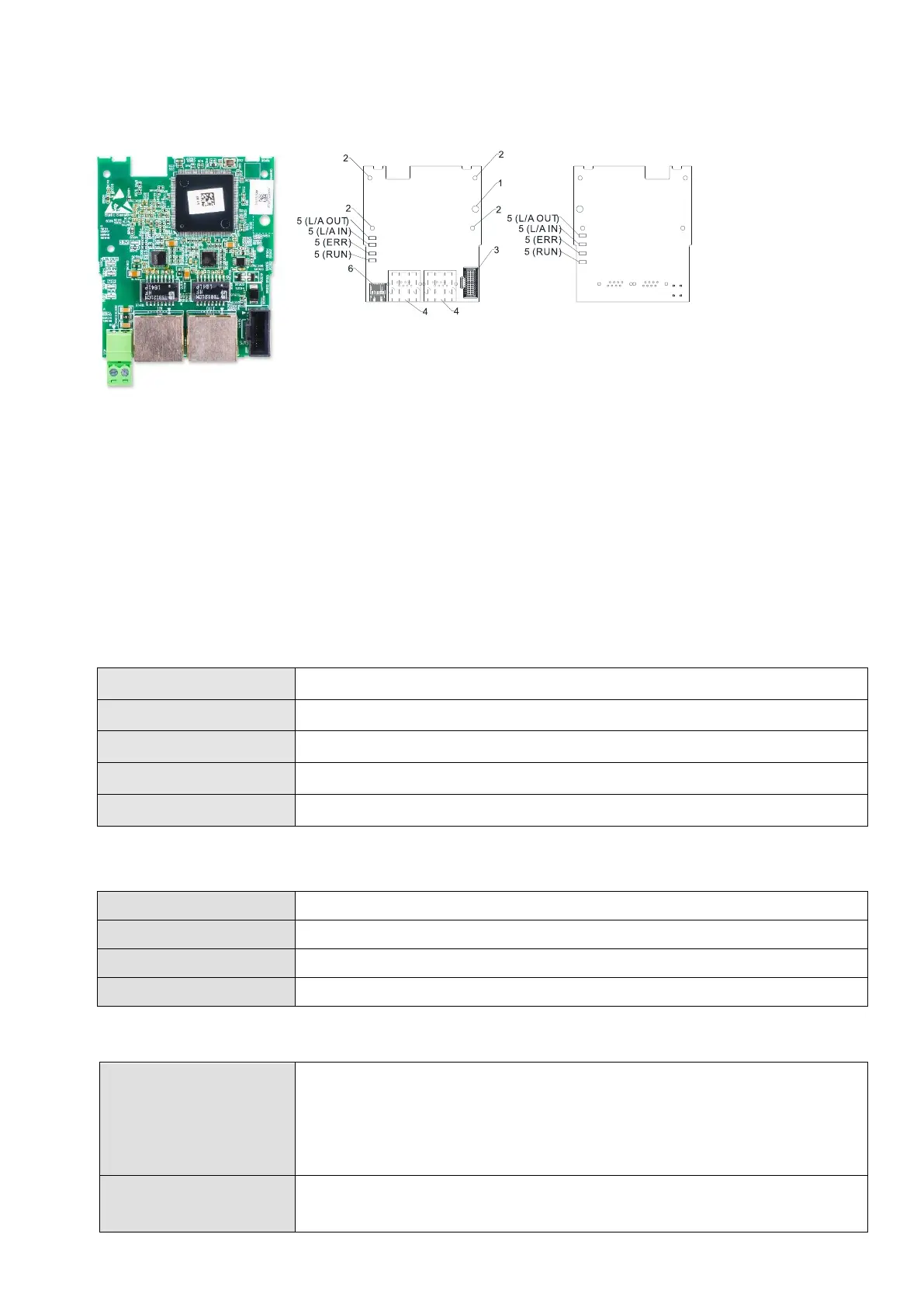

Figure 8-43
Figure 8-44
Wire gauge: 0.25–0.5 mm
2
(24–20 AWG)
Stripping length: 7–8 mm
Screw torque: 2 kg-cm / (1.7 Ib-in.) / (0.2 Nm)
1. Screw fixing
hole
2. Positioning hole
3. AC motor drive
connection port
4. Communication
port
5. Indicator
6. Ground terminal
block
8-7-2 Features
1. Supports speed mode
2. Supports standard CANopen CiA 402 decoding (CoE)
3. Supports reading and writing parameters
4. Supports stop during disconnection
8-7-3 Specifications
Network Interface
Interface
RJ45
Number of Ports
2 ports
Transmission Method
IEEE 802.3, IEEE 802.3u
Transmission Cable
Category 5e shielding 100M
Transmission Speed
100 Mbps
Table 8-38
Electrical Specification
Power Supply Voltage
15 V
DC
Power Consumption
0.8 W
Insulation Voltage
500 V
DC
Weight
27 g
Table 8-39
Environment
Noise Immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Test (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 6100-4-6)
Operation / Storage
Operation: -10–50º C (temperature), 90% (humidity)
Storage: -25–70º C (temperature), 95% (humidity)
