Chapter 15 CANopen OverviewMS300

637

15-2 Wiring for CANopen

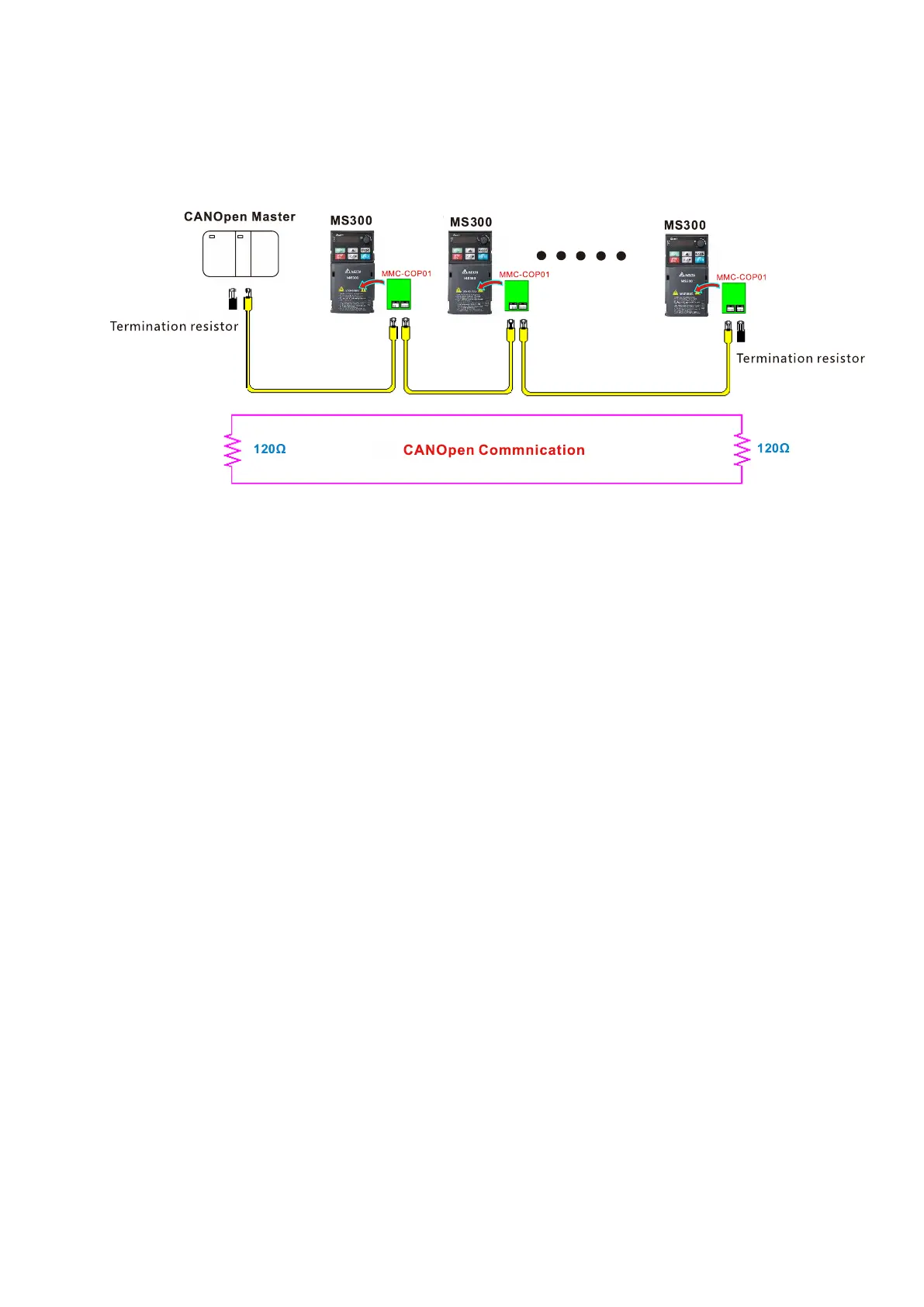

Use an external CANopen communication card CMM-COP01 for CANopen wiring to connect the

CANopen to the MS300 drive. The link uses an RJ45 cable. You must wire the two farthest ends with

120 Ω terminating resistors as shown in the picture below.
