Delta VFD13AMS43ANSAA

Chapter 16 PLC Function ApplicationsMS300
669

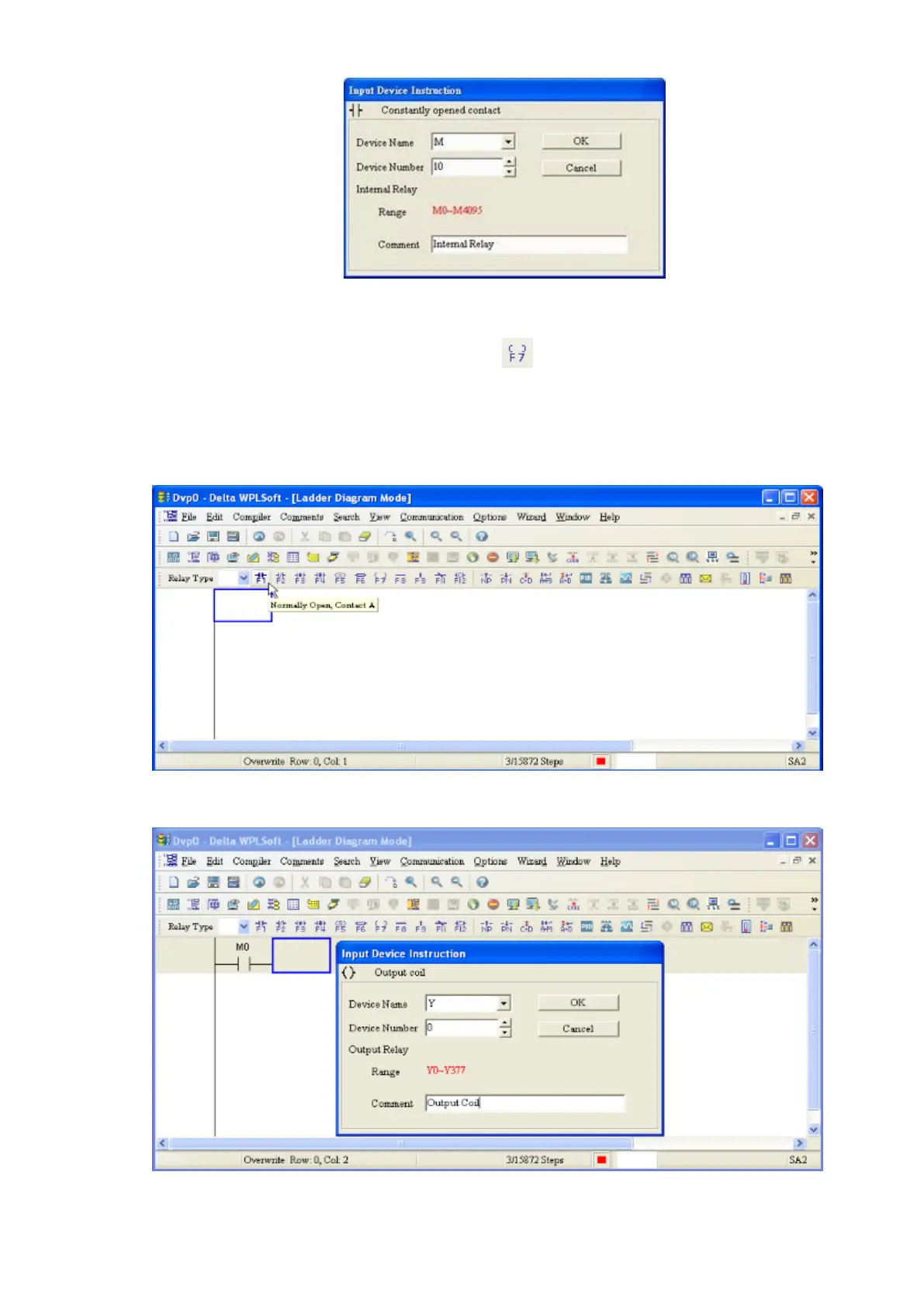

Figure 16-20
Step 3. Add an output coil. Click the output coil button or press F7.
In the Input Device Instruction dialog box, select the device name (such as Y), the device
number (such as 0) and enter comments (such as output coil).Click OK when finished. (See
Figure 16-21 and Figure 16-22.)
Figure 16-21
Figure 16-22
