Chapter 7 Optional AccessoriesMS300
69

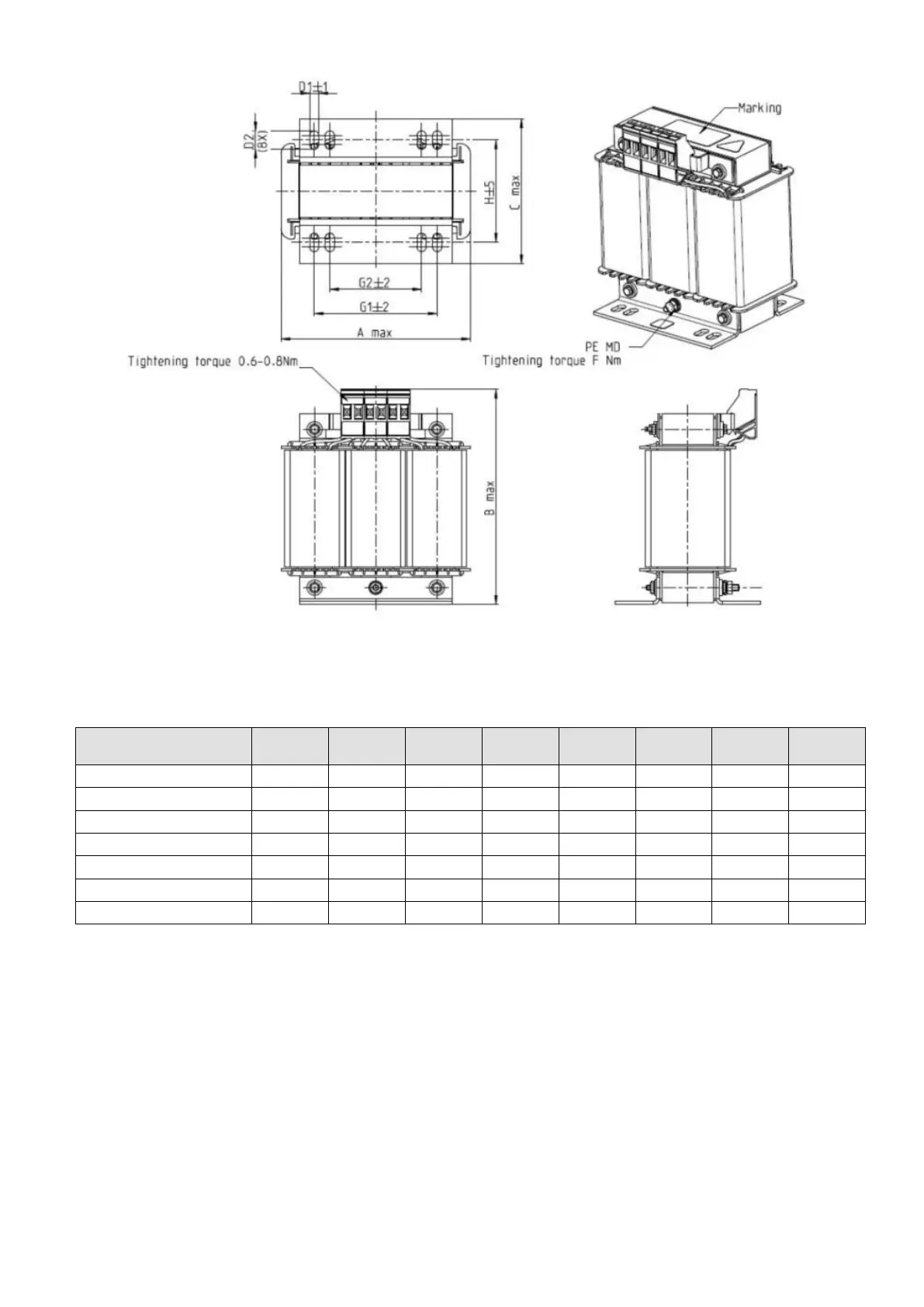

Figure 7-11
Unit: mm
AC Input Reactors
Delta Part #
A
B
C
D1*D2
H
G1
G2
PE D
DR003A0810
100
125
65
6*9
43
60
40
M4
DR004A0607
100
125
65
6*9
43
60
40
M4
DR006A0405
130
15
95
6*12
60
80.5
60
M4
DR009A0270
160
160
105
6*12
75
107
75
M4
DR010A0231
160
160
115
6*12
90
107
75
M4
DR012A0202
160
160
115
6*12
90
107
75
M4
DR018A0117
160
160
115
6*12
90
107
75
M4
Table 7-27
