Chapter 1 IntroductionC2000 Series
1-10

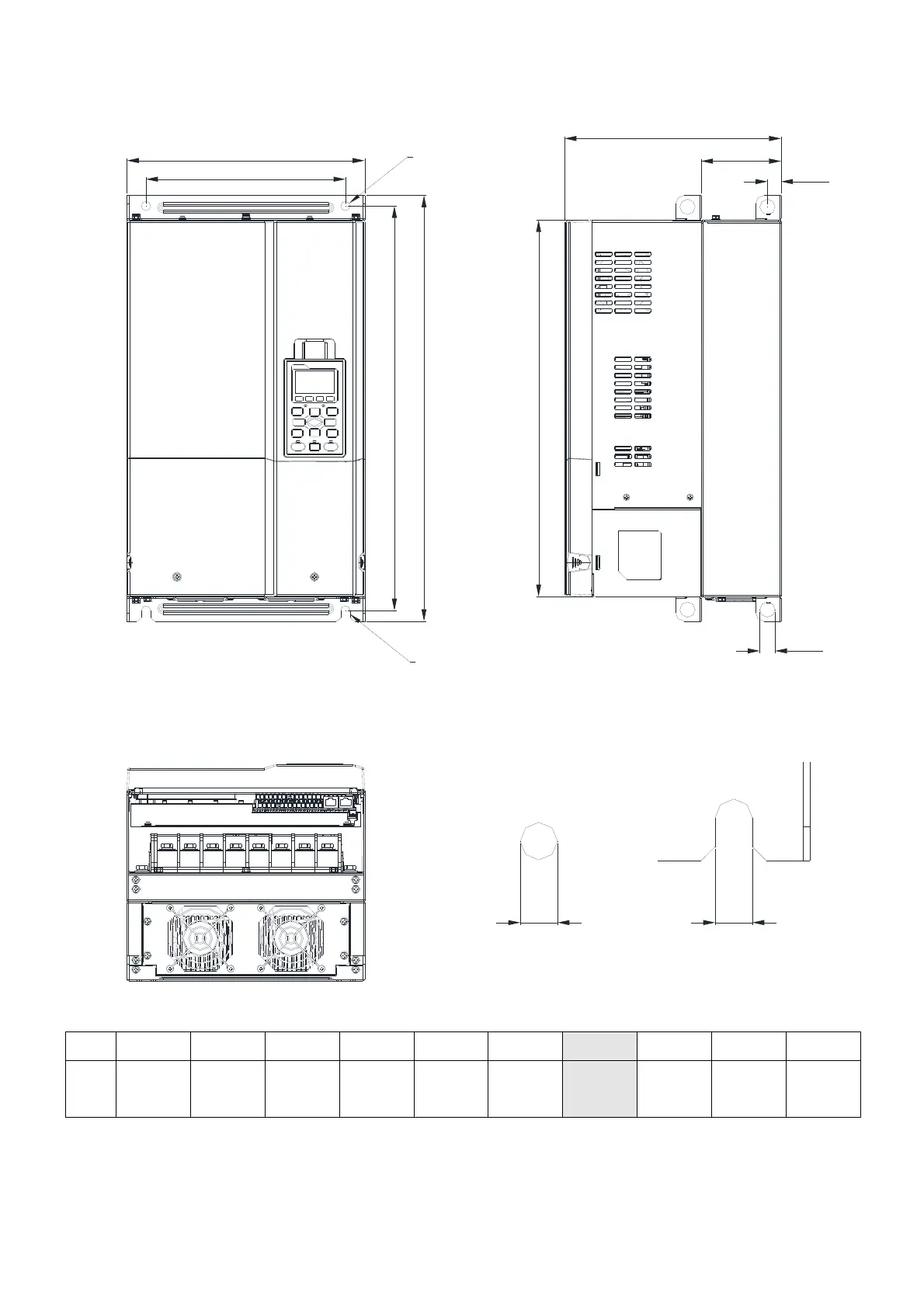

Frame D0
D0-1: VFD370C43S; VFD450C43S;
S1S1
DETAIL A
(MOUNTING HOLE)
DETAIL B
(MOUNTING HOLE)
W
W1
H1
H2
SEE DETAIL A
SEE DETAIL B
D
D1
S2
D2
H3
Unit: mm [inch]
Frame W H1 D W1 H2 H3
D1* D2 S1 S2
D0-1
280.0
[11.02]
500.0
[19.69]
255.0
[10.04]
235.0
[9.25]
475.0
[18.70]
442.0
[17.40]
94.2
[3.71]
16.0
[0.63]
11.0
[0.43]
18.0
[0.71]
D1*: Flange mounting
