Delta VFD150C43A User Manual

Chapter 1 IntroductionC2000 Series
1-8

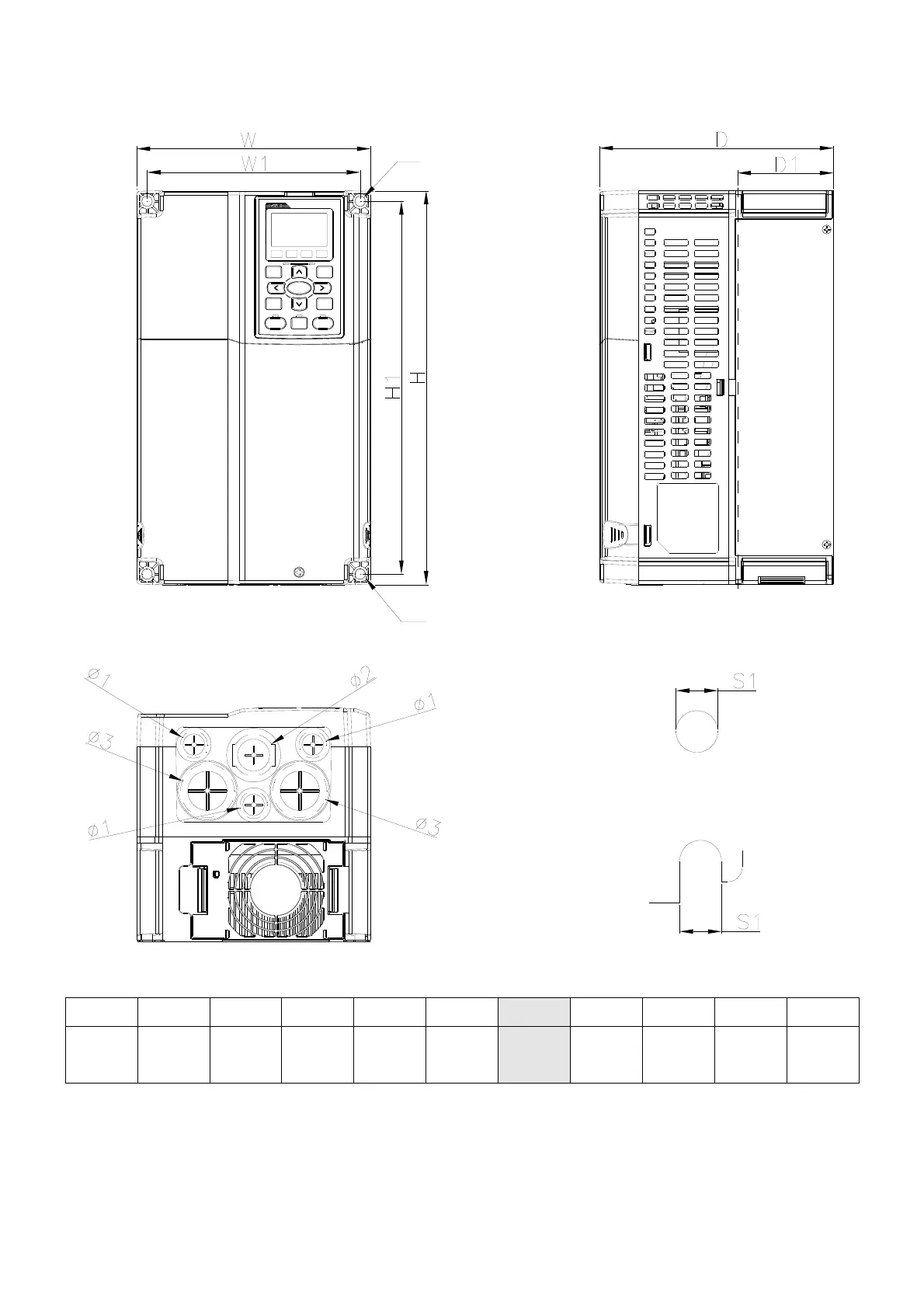

Frame B
VFD055C23A; VFD075C23A; VFD075C43A/E; VFD110C23A; VFD110C43A/E; VFD150C43A/E
Detail A (Mounting Hole)
Detail B (Mounting Hole)
See Detail A
See Detail B
Unit: mm [inch]
Frame
W H D W1 H1
D1* S1 Φ1 Φ2 Φ3
B1
190.0
[7.48]
320.0
[12.60]
190.0
[7.48]
173.0
[6.81]
303.0
[11.93]
77.9
[3.07]
8.5
[0.33]
22.2
[0.87]
34.0
[1.34]
43.8
[1.72]
D1*: Flange mounting
