Chapter 7 Optional AccessoriesMS300
141

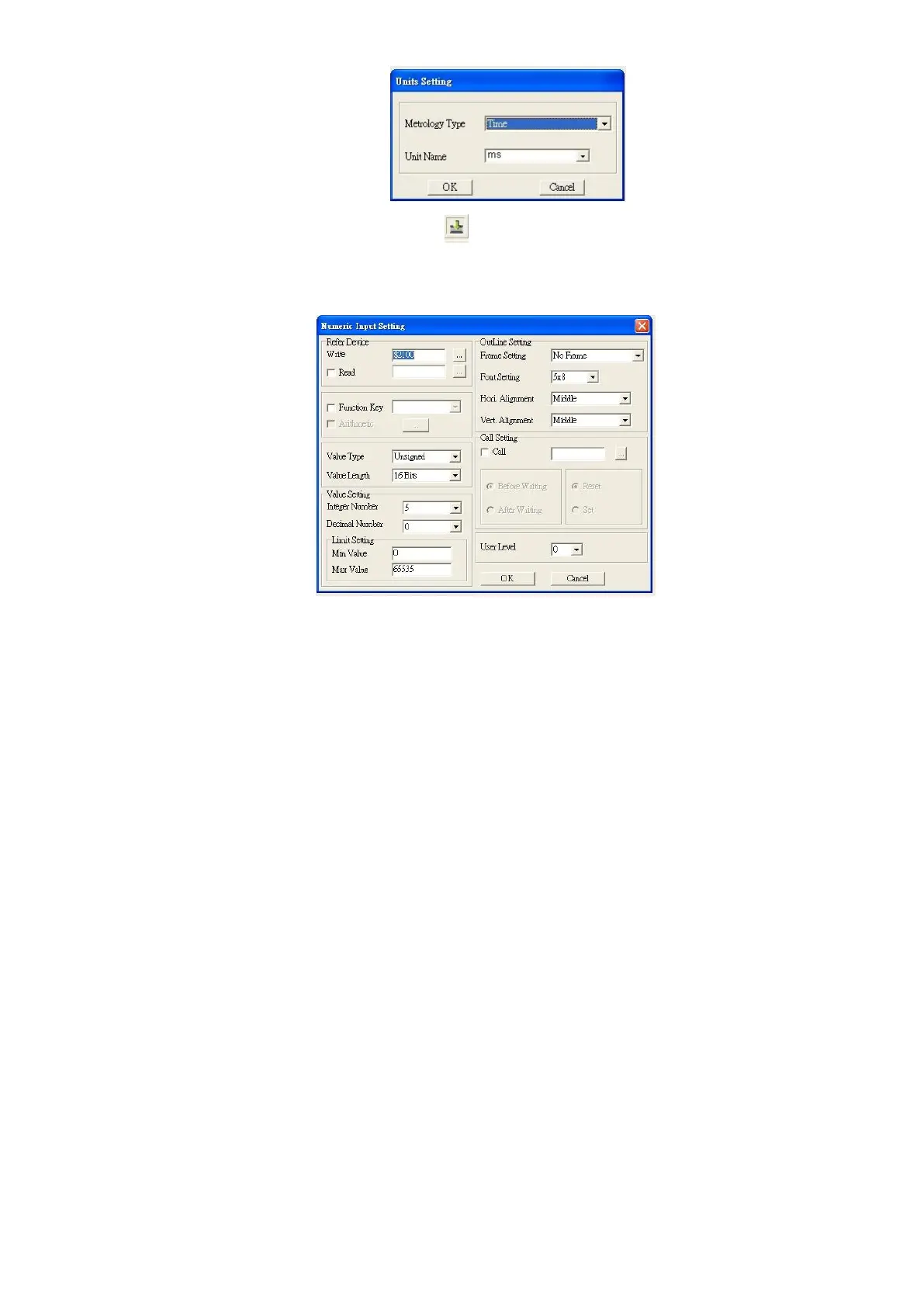

10. Numeric Input Setting: on the toolbar, click .
This object enables you to provide parameters or communication ports (0x22xx) and to input numbers.
Open a new file and double click on that window to display the Numeric Input Setting dialog box.
a. Refer Device: specifies the Write and the Read values. Enter the numbers to display and the
corresponding parameter and communication port numbers. For example, enter 012C to Read and
Write Parameter Pr.01-44.
b. OutLine Setting: specifies the Frame Setting, Font Setting, Hori. Alignment, and Vert.
Alignment for the outline.
c. Function Key: specifies the function key to program on the keypad in the Function Key box. The
corresponding key on the keypad starts to blink. Press ENTER to confirm the setting.
d. Value Type and Value Length: specify the range of the Min Value and Max Value for the Limit
Setting. Note that the corresponding supporting values for MS300 must be 16 bits. 32-bit values
are not supported.
e. Value Setting: automatically set by the keypad itself.
f. Limit Setting: specifies the range for the numeric input here.
For example, if you set Function Key to F1, Min Value to 0 and Max Value to 4, when you press
F1 on the keypad, then you can press Up/Down on the keypad to increase or decrease the value.
Press ENTER on the keypad to confirm your setting. You can also view the parameter table 01-44
to verify if you correctly entered the value.
11. Download the TP page. Press Up/Down on the keypad to select #15 PC Link.
Then press ENTER on the keypad. The screen displays “Waiting”. In TPEditor, choose a page that you
have created, and then on the Communication menu click Write to TP to start downloading the page to
the keypad
When you see “Completed” on the keypad screen, the download is finished. You can then press ESC on
the keypad to go back to the menu screen.
