Chapter 7 Optional AccessoriesMS300
140

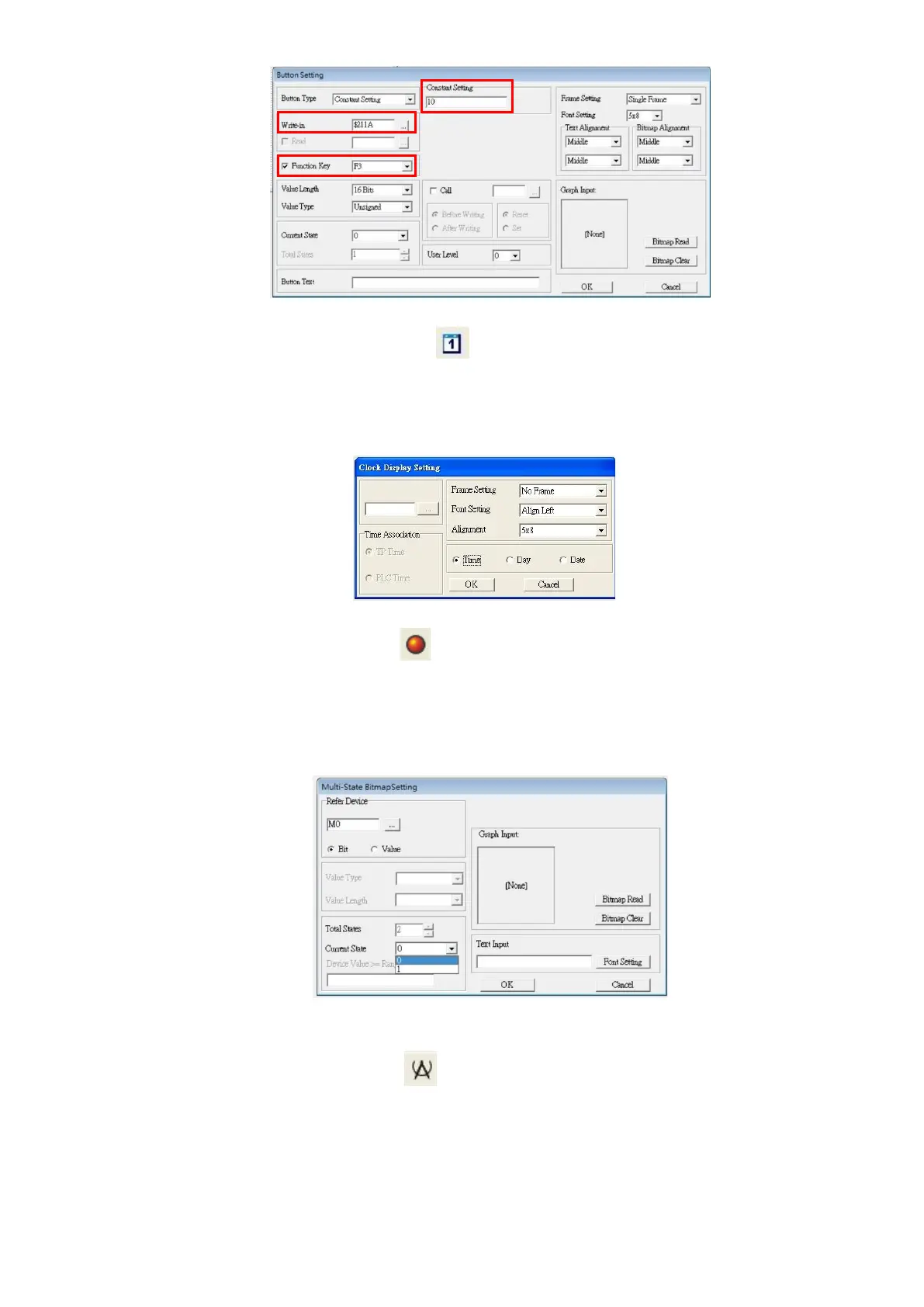

7. Clock Display Setting: on the toolbar, click . You can display the time, day, or date on the keypad.
Open a new page and click once in that window to add a clock display.
Choose to display Time, Day, or Date on the keypad. To adjust time, go to #8 on the keypad’s menu.
You can also specify the Frame Setting, Font Setting, and Alignment.
8. Multi-state bitmap: on the toolbar, click . Open a new page and click once in that window to add a
Multi-state bitmap. This object reads a bit’s property value from the PLC. It defines the image or text that
appears when this bit is 0 or 1. Set the initial status (Current State) to be 0 or 1 to define the displayed
image or text.
9. Unit Measurement: on the toolbar, click .
Open a new blank page, and double-click on that window to display the Units Setting dialog box.
Choose the Metrology Type and the Unit Name. For Metrology, the choices are Length, Square
Measure, Volume/Solid Measure, Weight, Speed, Time, and Temperature. The unit name changes
automatically when you change metrology type.
