Chapter 7 Optional AccessoriesMS300
139

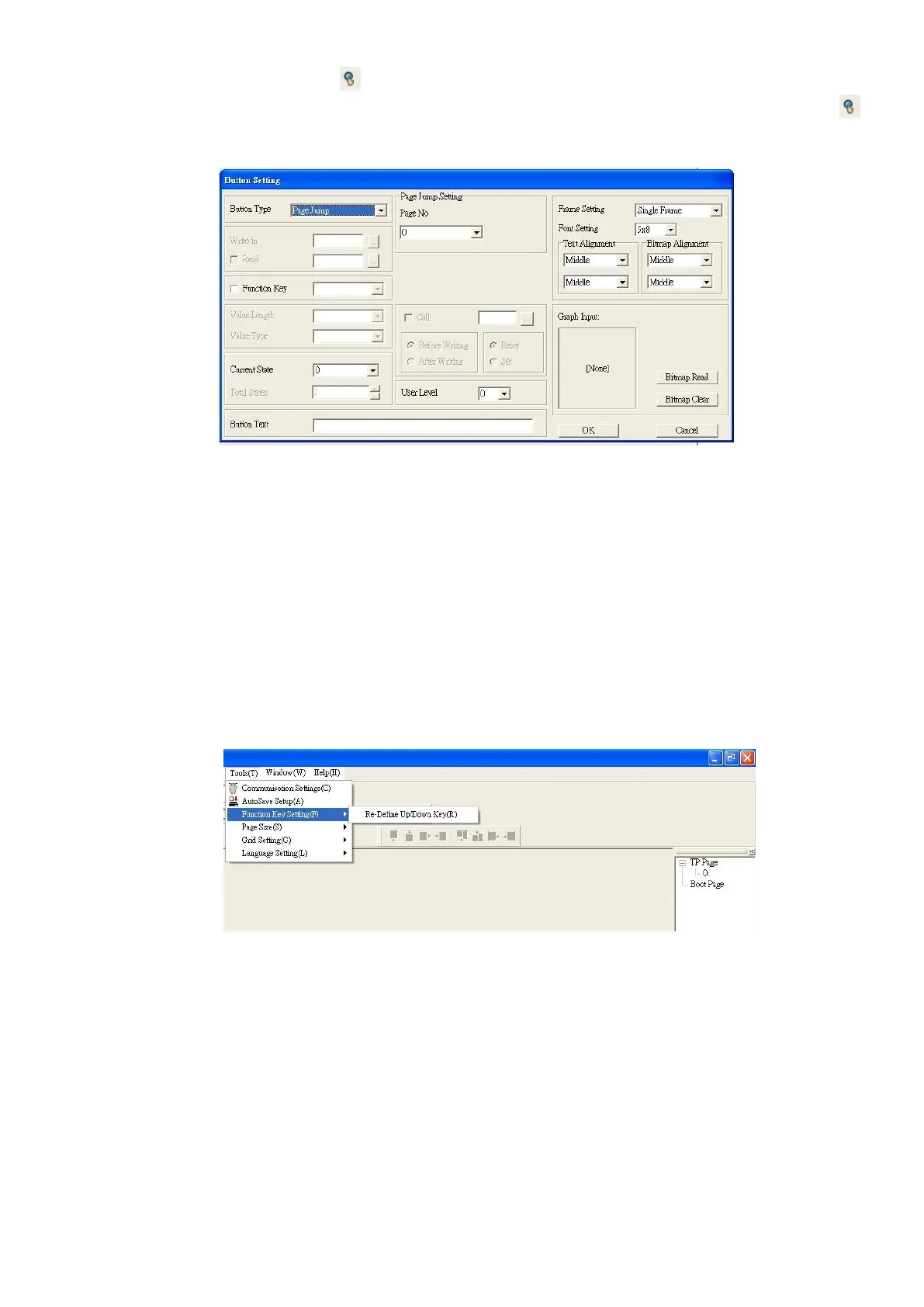

6. Button: on the toolbar, click . Currently this function only allows the keypad to switch pages; other
functions are not yet available (including text input and insert image). In the blank page, double-click
to open the Button Setting dialog box.
Button Type: specifies the button’s functions.
Page Jump and Constant Setting are the only functions currently supported.
A. Page Jump Setting
Page Jump Setting: in the Button Type list, choose Page Jump to show the Page Jump
Setting.
Function Key: specifies the functions for the following keys on the KPC-CC01 keypad: F1, F2, F3,
F4, Up, Down, Left and Right. Note that the Up and Down keys are locked by TPEditor. You cannot
program these two keys. If you want to program Up and Down keys, on the Tool menu, click
Function Key Setting, and then click Re-Define Up/Down Key.
Button Text: specifies the text that appears on a button. For example, when you enter Next Page
for the button text, that text appears on the button.
B. Constant Setting
This function specifies the memory address’ values for the VFD or PLC. When you press the Function
Key, it writes a value to the memory address specified by the value for Constant Setting. You can use
this function to initialize a variable.
