TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019
Ticket Specifications
The Ticket Eater is designed to count industry standard tickets. These tickets are 1 5/32"
wide by 2" long. They have a 1/4" diameter hole in the middle of the ticket which is
centered on the perforation between tickets. For use in ticket dispensers they will also
have a 1/4" diameter half hole on each side of the ticket at the perforation.

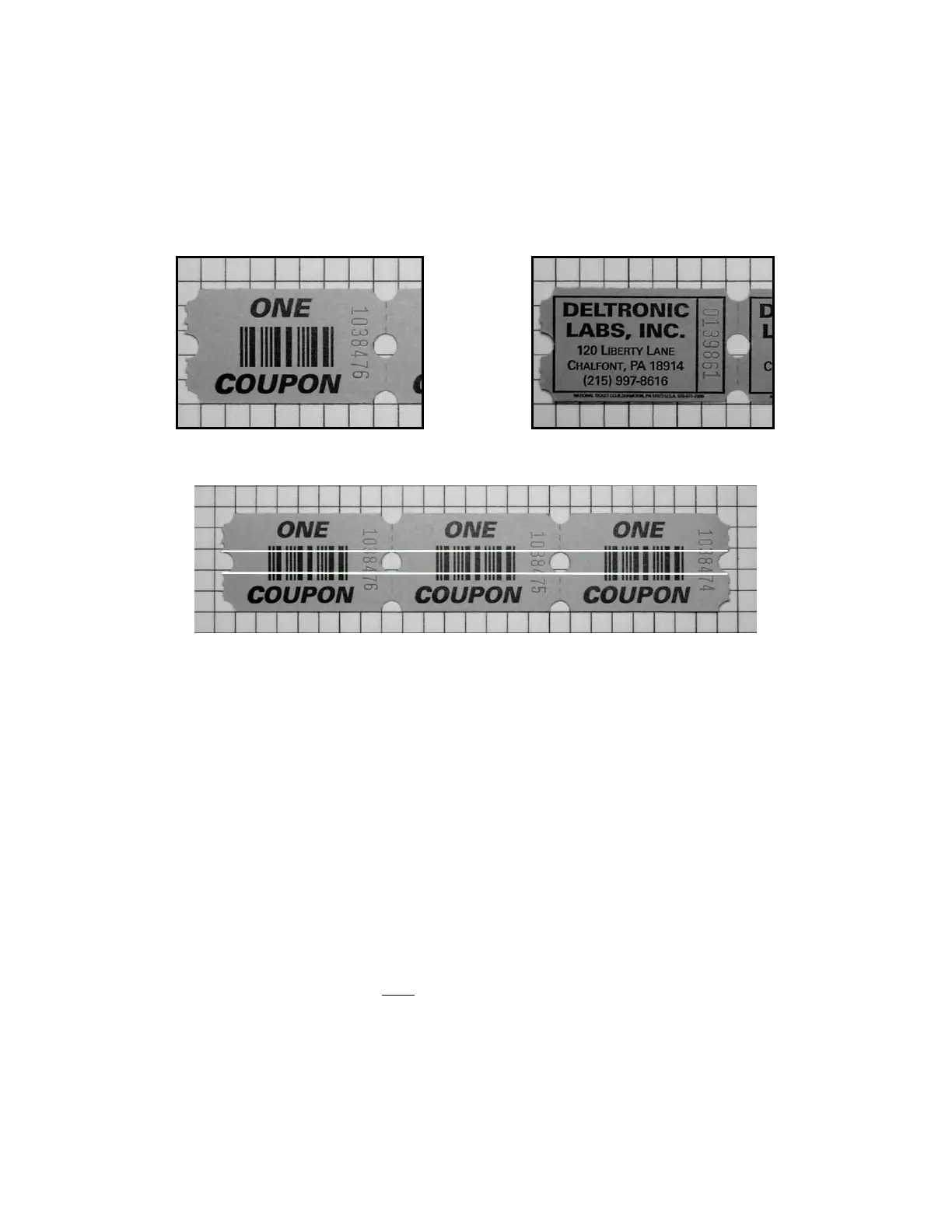

Barcoded and Holes-Only Tickets photographed on 1/4" grid.
White Lines Show Reserved Center Area
The barcode on barcoded tickets is 4 digits of interleaved 2 of 5 code. This gives it 14
bars and 13 spaces. There are 18 thin bars/spaces and 9 thick bars/spaces. Thick
bars/spaces are 3 times as wide as thin bars/spaces.
The overall length of the barcode should be 0.7 to 1 inch. A stripe in the middle of the
tickets in line with the holes is reserved for the barcodes (see photo above). The barcode
must be wide enough to fill this area, but it can be wider. Thus the minimum width of the
barcode is the same as the hole diameter (1/4 inch). Other than a light red (no other color
is allowed) sequence number, nothing (not even a border) should be printed in the center
stripe area. No other color is allowed for the sequence number. Anything can be printed
on the tickets outside of the reserved center area.
The barcode bars should be printed with a dark color (black is preferred). The ink should
be dense enough that no background color shows through the bars
The barcode must be printed on both sides of the tickets.
The barcode background color should not be a dark color such as dark brown, dark blue,
dark gray, etc.
