Deltronic Labs Ticket Eater TT-2000 - Sensor Boards

TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019
35
Sensor Boards
HO1000 Rev. 4

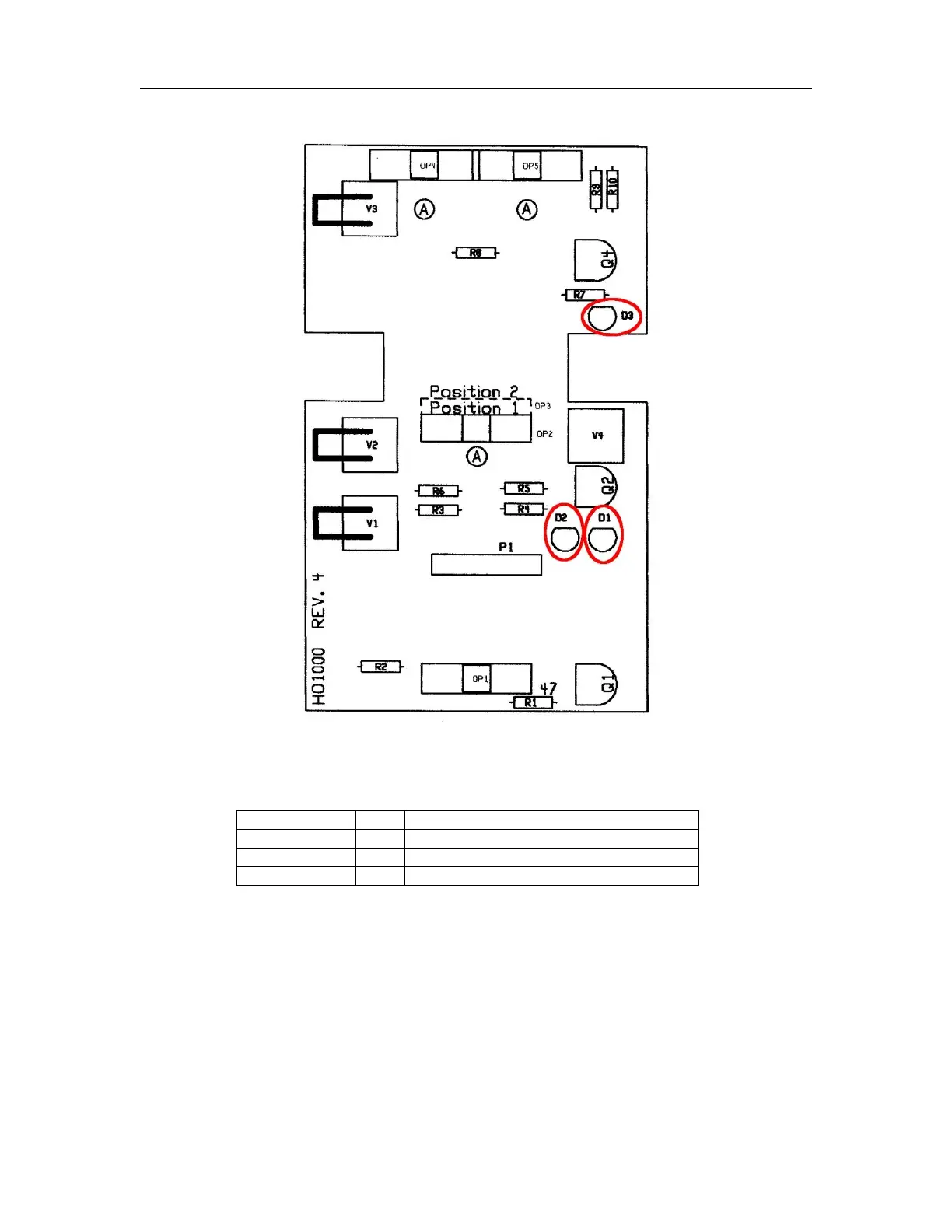

This drawing shows the HO1000 Rev. 4 sensor board. This board does not read barcodes. It has 3 LED’s
which are circled in red.
SENSOR
LED
NOTES
Front
D1
Off when sees ticket
Middle
D2
Off when sees ticket
Rear
D3
Off when both sensors see ticket
