TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019
36
HO2000 Rev. 4

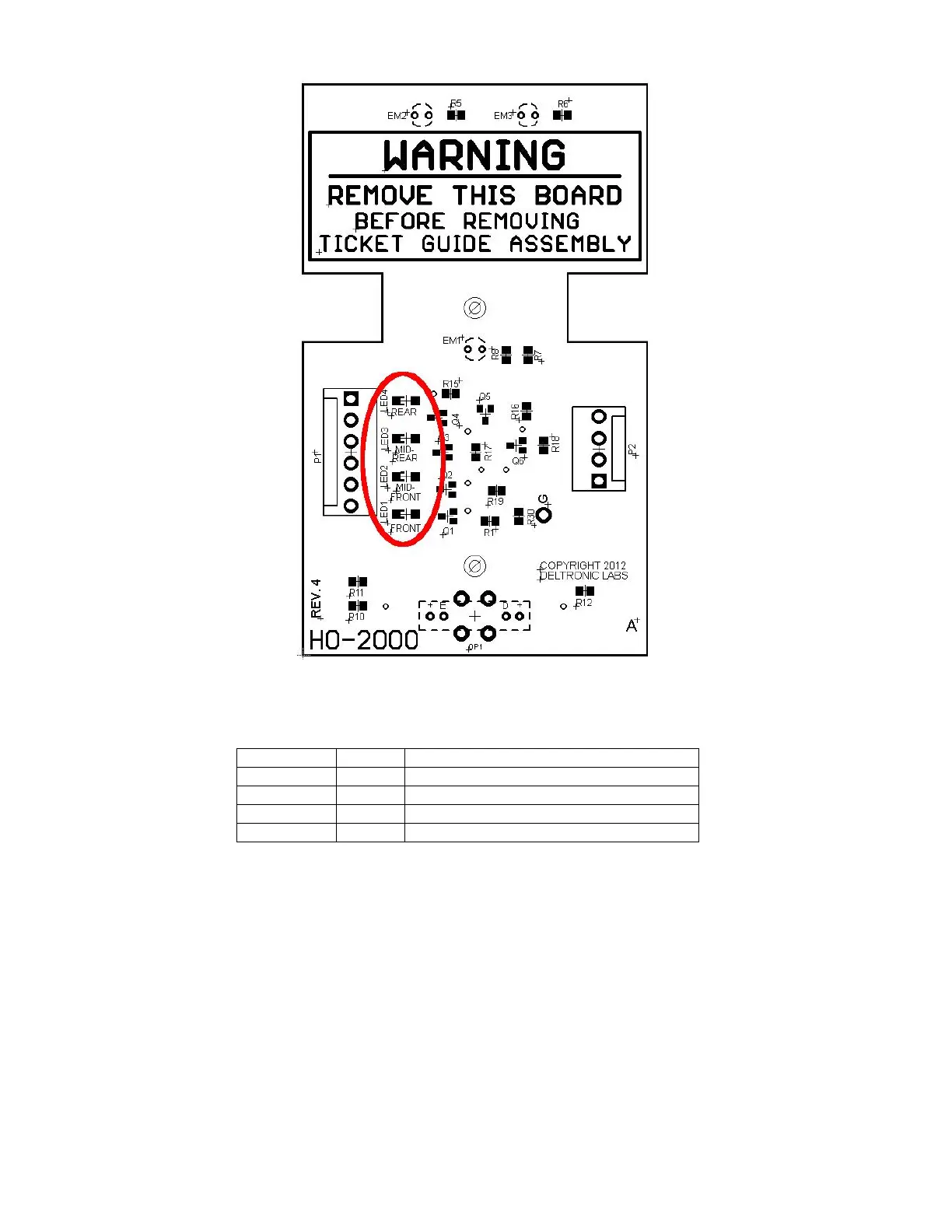

This drawing shows the HO2000 Rev. 4 sensor board. This board works with the LS2000 board that
mounts below the tickets. It does not read barcodes. The board has 4 LED’s which are circled in red.
SENSOR
LED
NOTES
Front
LED1
Off when sees ticket
Mid-front
LED2
On when sees ticket
Mid-rear
LED3
On when sees ticket
Rear
LED4
Off when both sensors see ticket
