TT-2000, TTD-2000, TT-4000 Ticket Eaters™ by Deltronic Labs June 2019

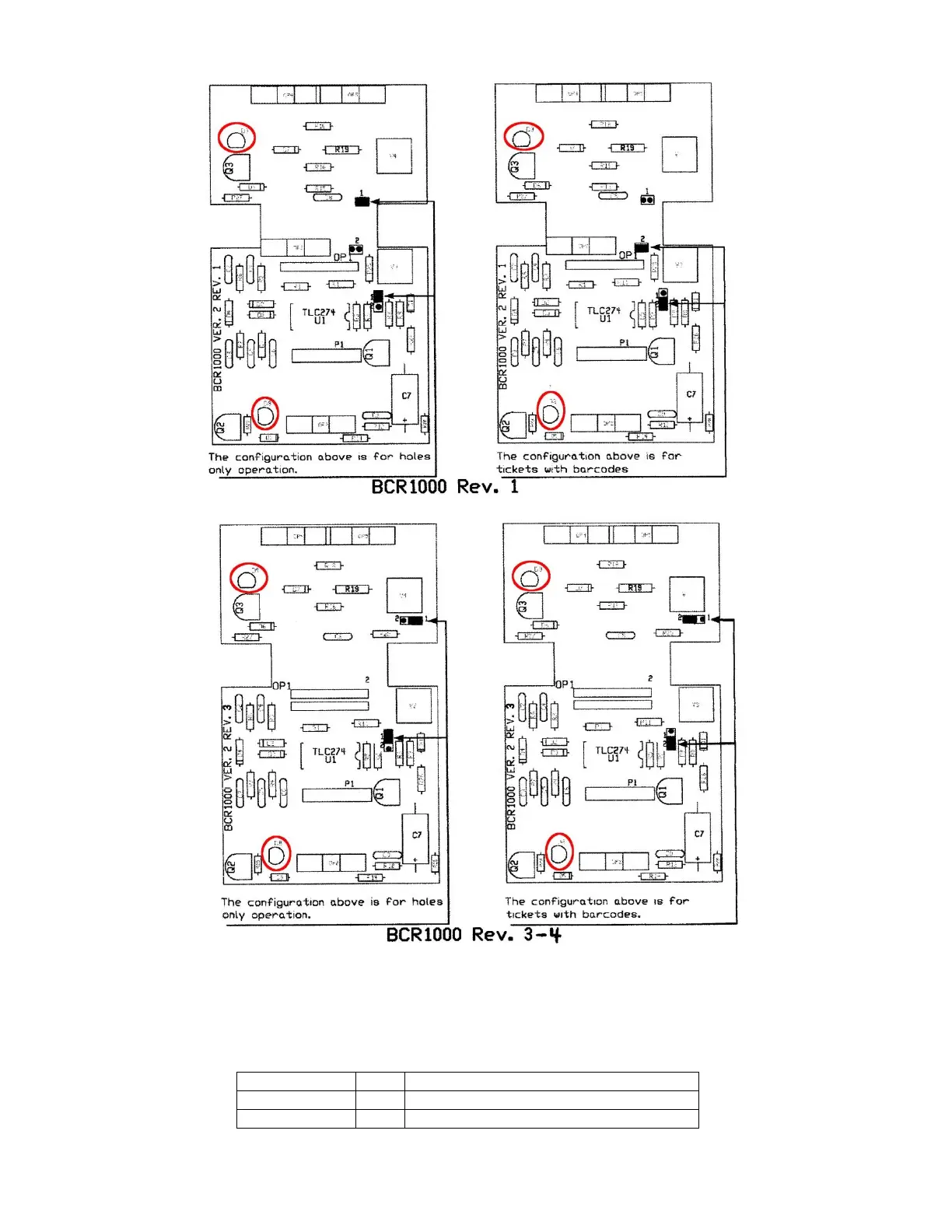

These drawings show configurations for BCR1000 Rev. 1, 3 & 4 sensor boards. By moving jumpers these
boards can be configured to read barcoded or holes-only tickets. The drawing on the right shows the
jumper positions for barcoded tickets. The one on the left is for holes-only tickets. Note that the logic
board options must also be changed to match the jumpers.
These boards have 2 LED’s which are circled in red.
Off when both sensors see ticket
