Den-Sin C-200E - Wiring Diagrams (Auto Start Stop 3 Phase)

C-110-170-200E R11 Page 36

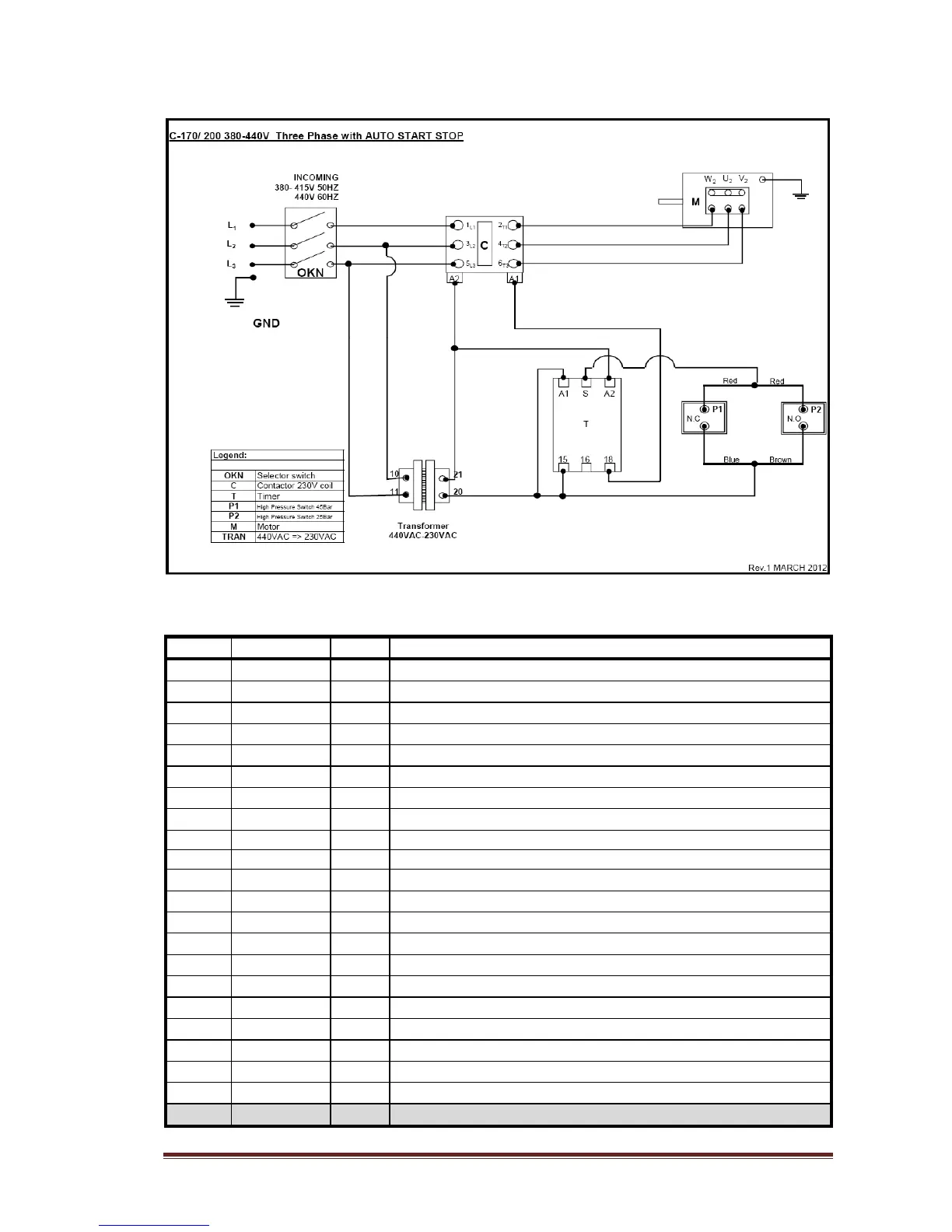

Wiring diagrams (Auto Start Stop 3 phase)
Kit Auto Start Stop
Pos: Part no.: Qty.: Description:
A2 700530005 1 On/Off Switch w/ Overload Relay
B2 700530610 1 Contractor LC1-D25/Coil 220V-230V
C2 700530614 1 Transformer 415V/230V
D2 700530695 1 Timer
E2
700530154
1
Press
ure Switch 3/8
”
F2
700530155
1
Pressure Switch 1/4
”
G2*
700530613
1
Electrical Box
H2* 700530624 1 SELECTOR SWITCH 230V-500V
-
-
-
-
- - - -
K2* 700540114 1 T JOINT 3/8` BSP M-F 1/4` BSP
L2* 700540117 1 T JOINT 3/8` BSP M-F-F BRASS
M2* 700540113 1 NIPPLE 3/8` BSPP M-M ZN
N2* 700520563 1 ON/OFF SWITCH MOUNTING
O2* 700510178 2 SCREW M6X3/8”
P2* 700510061 2 BOLT M5 X 20 ALLEN BLACK
Q2* 700510051 1 Bolt M6 X 18 HEX
R2* 700510007 1 Locknut M6
S2* 700540317 1 Dowty Seal M6
T2* 700540186 2 ELBOW 3/8` BSP F-M
U2*
700510136
6
CONTRA NUT 3/8` BSPP BRASS
B2
-
U
2
700530649
1
Kit Auto Start Stop
*Not Shown
