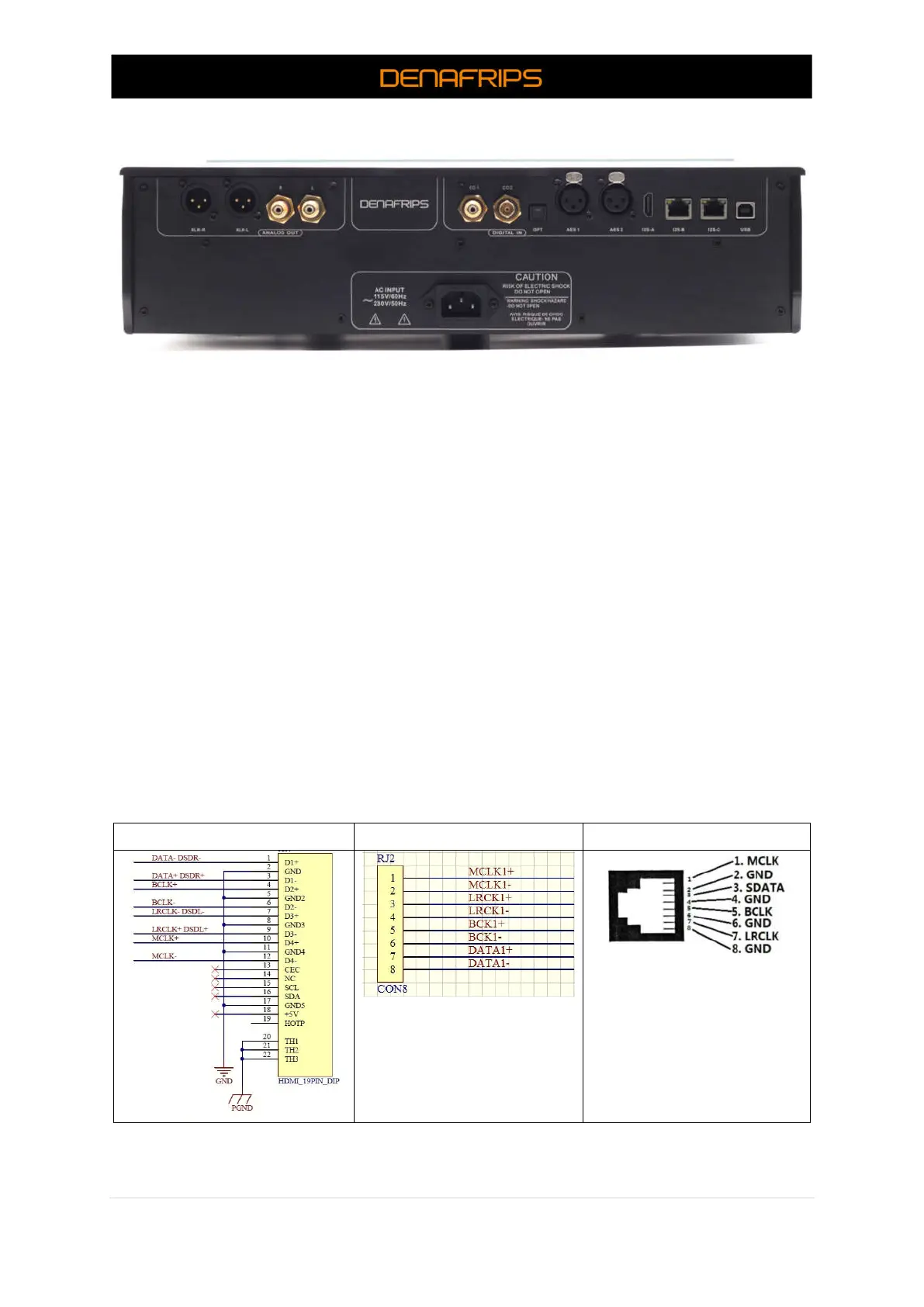

Figure 2. Terminator Rear Panel
Description:
(1) AC Power Supply
CAUTION! Worldwide AC Power Supply voltage supported. The AC input voltage is
automatically ranged thanks to the DENAFRIPS smart power management technology.
(2) Analog Audio Signal Output
Balanced output via XLR (pin2 hot), singled ended output via RCA. The Terminator is a true
balanced DAC, we recommend using balanced output whenever possible. The RCA and XLR
output are shared, please use either of the output at a time. It is not recommended to use
both RCA and XLR output simultaneously.
(3) Digital Audio Signal Input
There are 9 inputs, namely, COAX 1, COAX 2, OPT, AES 1, AES 2, I2S A, B, C and USB.
I2S-A HDMI (LVDS) I2S-B (LVDS) I2S-C RJ45 (LVCMOS)
