DencoHappel MATRIX OP21C User Manual

Technical Description MATRIX control panel
14 PR-2011-0110-GB • Subject to modifications • R9-03-2016

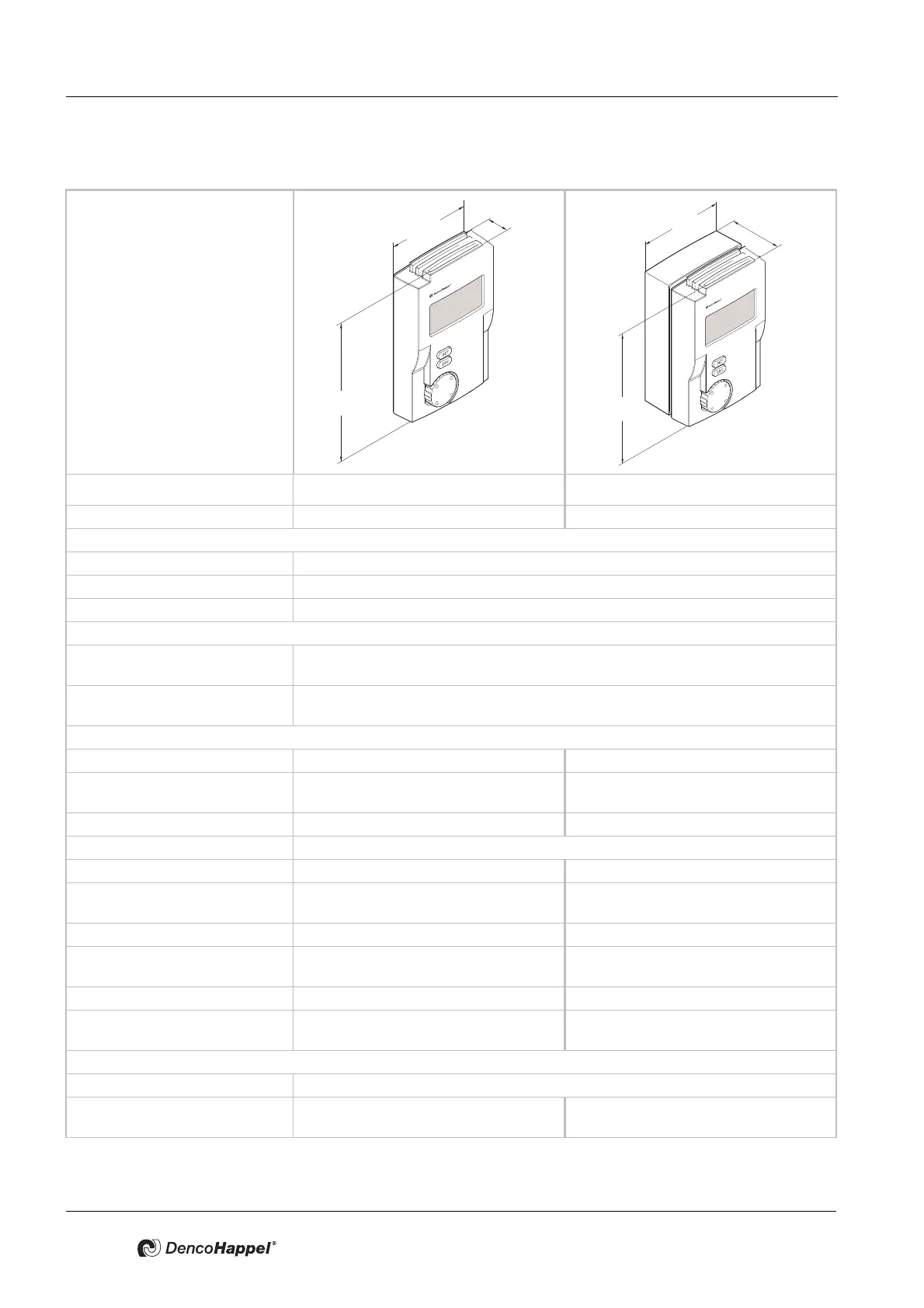

4.3 Technical data and accessories
Type series OPxxC (Comfort) OPxxI (Industry)
Area of application Comfort area Industrial area
Ambient conditions
Allowed ambient temperature 0 °C to 45 °C
Allowed storage temperature -10 °C to 65 °C
Allowed relative humidity 15% to 75% no condensation
Electromagnetic compatibility
Electromagnetic interference
(EMI)
according to DIN EN 55022/DIN EN 61000
Electromagnetic interference
shielding (EMS)
according to DIN EN 61000
Mechanical data
External dimensions (W/H/D) 83 x 135 x 30 mm 83 x 135 x 55 mm
Fixation directly on the wall or socket for flush
mounting
on the wall
Weight 184 g 248 g
Casing material N185 Noryl UL 94 V-0
Casing front panel similar to RAL 9016 (traffic white) similar to RAL 7035 (light grey)
Casing rear section (if necessary
surface-mounted socket)
similar to RAL 9016 (traffic white) similar to RAL 7016 (anthracite)
Pushbutton similar to RAL 7074 (telegrey 4) similar to RAL 7016 (anthracite)
Protection type (according to DIN
40050)
IP20 IP54
Application position installed vertically installed vertically
Cable entry point from behind from behind via 3 membrane grommets
M16
Electrical data
Supply voltage Through power supply of the unit
Temperature sensor integrated room temperature sensor type 903.454
supplied loose
30 mm
135 mm
83 mm
83 mm
55 mm
135 mm

DencoHappel MATRIX OP21C Specifications

General

Brand	DencoHappel
Model	MATRIX OP21C
Category	Controller
Language	English
