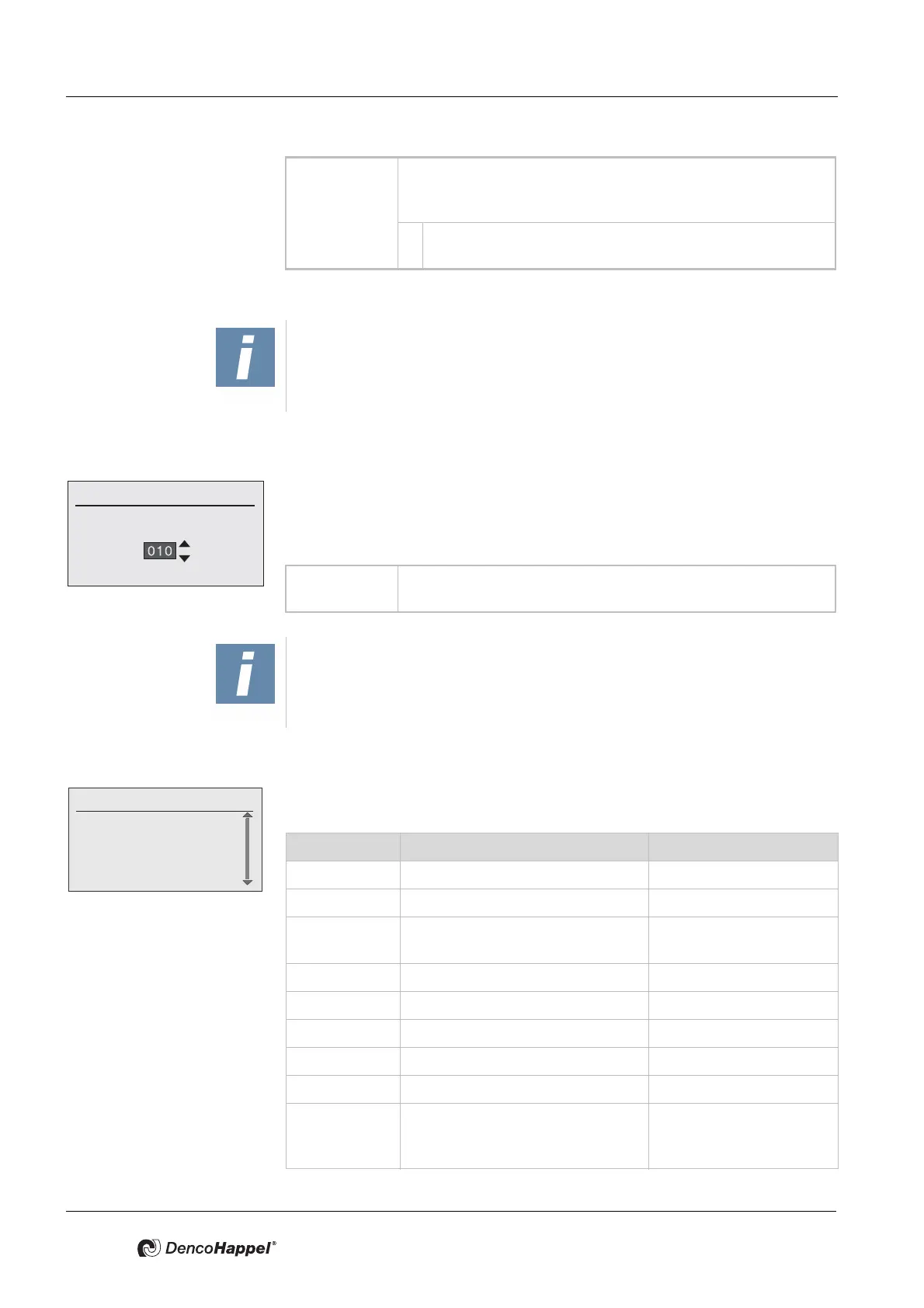

Operating MATRIX control panel MATRIX control panel
54 PR-2011-0110-GB • Subject to modifications • R9-03-2016
Morning warmup time submenu
The time in minutes when the air warmup should start before the actual switching
point of the time program. The initial air treatment takes place during switch over
from economy to normal mode. In this phase the mixing-air damper of the outside-
air units remains closed.
7.21.3 Actual values submenu
All actual values are displayed in the submenu as long as they are available or
valid. These values are updated every second.
Value range: 1st line: Monday to Sunday or “disabled”*
2nd line: Time from 00:00 to 23:59 or “--:--”*.
Factory setting: Monday and 02:00
* If “Disabled” or “--:--“ is selected, then the block-up protec-
tion is switched off.
NOTICE!
The menu is displayed only if there is no clock module in the network.
Morning warmup time
Time in minutes
Value range: 5 to 60 min.
Factory setting: 10 min
NOTICE!
If the value "---" is set, the program is disabled.
Actual values
Room : 22.4 °C
Outdoor : 18.6 °C
Supply air : 16.6 °C
Inlet line : 48.5 °C
Display Meaning Unit
Room Room temperature in °C or °F
Outdoor Outdoor temperature in °C or °F
Supply air Minimum supply-air temperature of
all units in group
in °C or °F
Inlet line Inlet temperature in °C or °F
DX Evaporation temperature in °C or °F
ERS temp ERS icing protection in °C or °F
rHRoom Relative humidity in the room in % relative humidity
rHOut Outside relative humidity in % relative humidity
AQRoom Air quality (maximum value of all
possible and valid sources: Con-
troller, MATRIX.AI, MATRIX.LON)
in ppm
