Connections Playback Remote Control Information Troubleshooting Specifications
ENGLISH
Multi-ZoneSettings
q w e r t y u
o iQ2Q5 Q3Q6Q7
Q0
Q1
Q4
Part Names and Functions

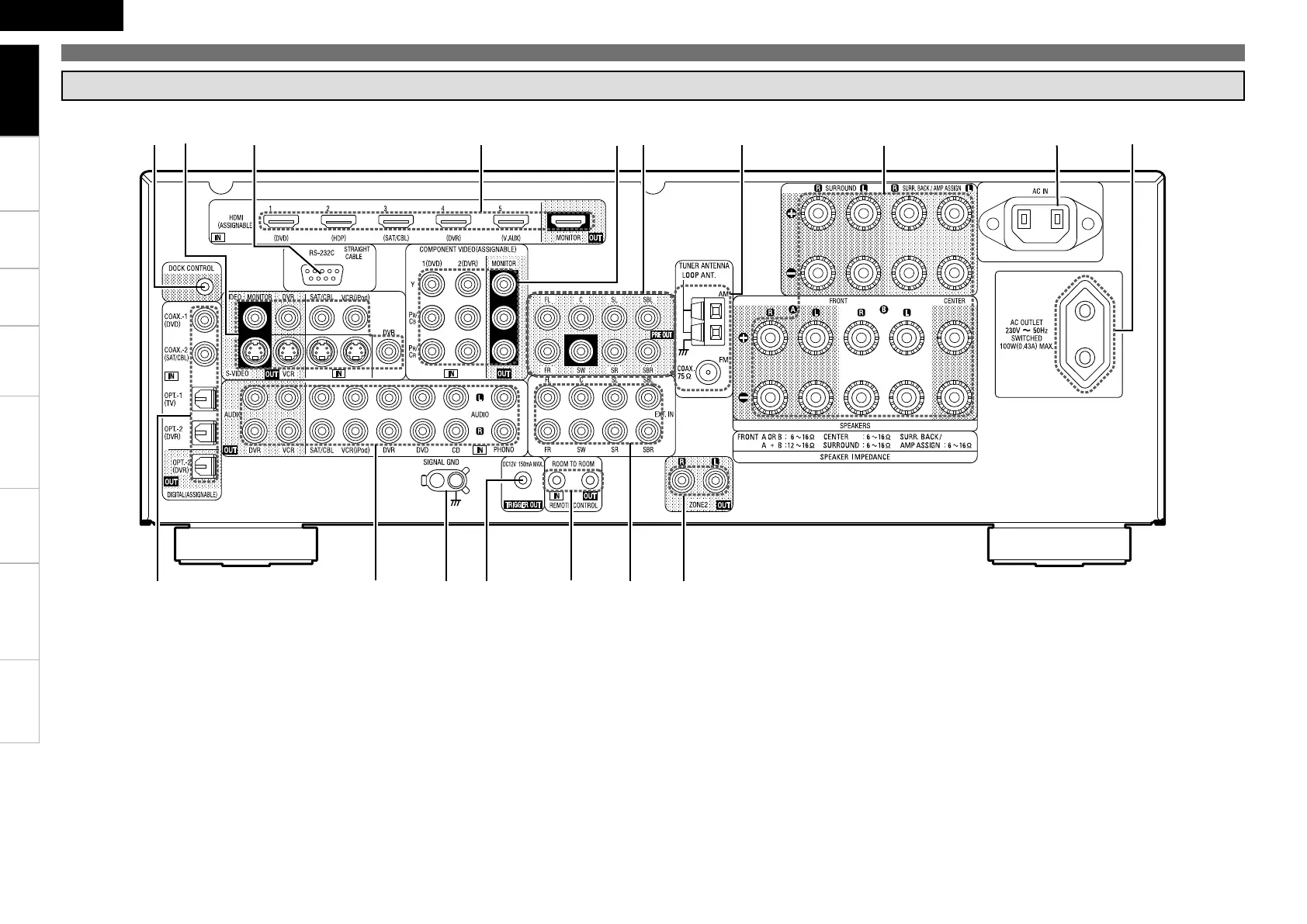

Rear Panel
q Digital audio connectors ···························(15)
w Analog audio connectors ··························(14)
e SIGNAL GND terminal ······························(15)
r TRIGGER OUT jacks ··································(18)
t REMOTE CONTROL jacks ·························(18)
y EXT. IN connectors ····································(16)
u ZONE2 connectors ····································(54)
i AC OUTLET ················································(18)
o AC inlet (AC IN) ··········································(18)
Q0 Speaker terminals ····································· (11)
Q1 FM/AM antenna terminals ·······················(17)
Q2 PRE OUT connector ··································· (11)
Q3 COMPONENT VIDEO connectors ·············(14)
Q4 HDMI connectors ······································· (13)
Q5 RS-232C connector ····································(18)
Q6 VIDEO/S-VIDEO connectors ····················· (15)
Q7 Control dock for iPod
DOCK CONTROL jack ································(14)
Getting Started
