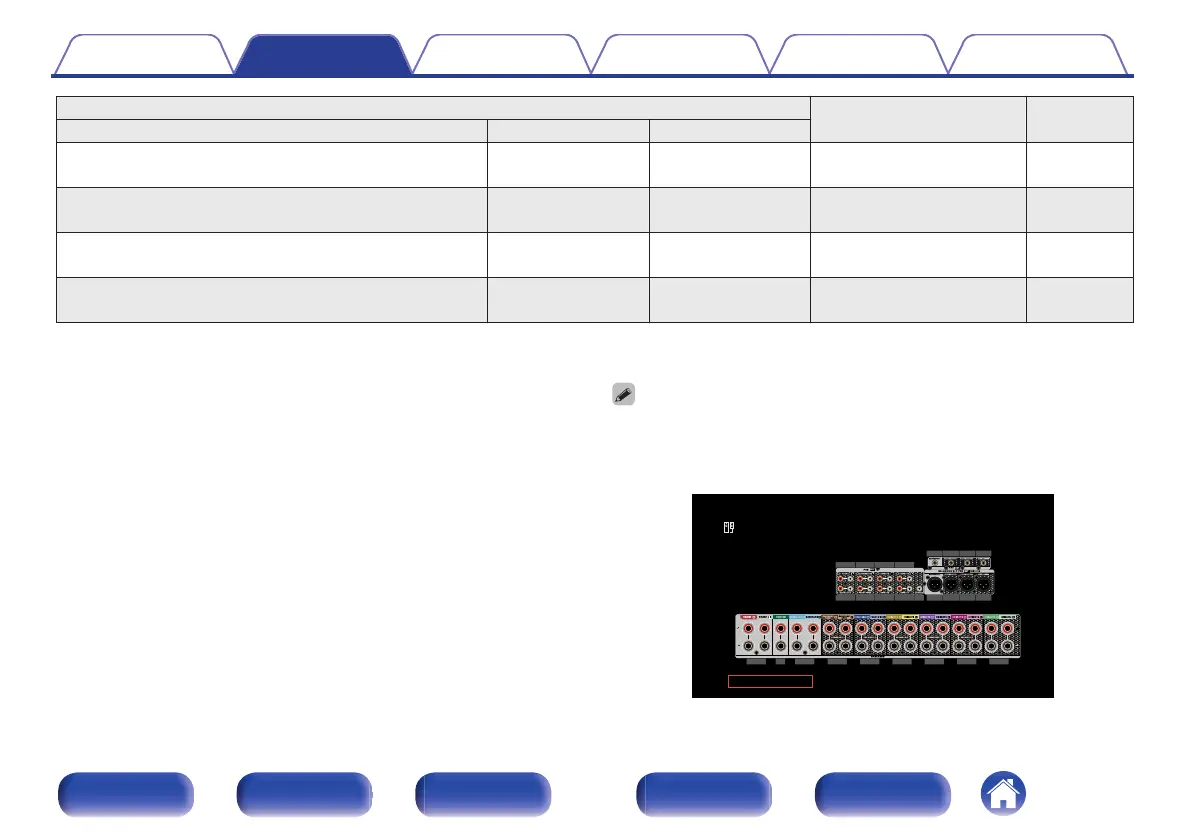

Playback speaker in each zone
“Amp Assign” settings
Connection
page
MAIN ZONE ZONE2 ZONE3
11.1-channel playback (bi-amp connection of front
speakers)
2-channel
(Speaker out)
2-channel (Pre-out) 11.1ch (Bi-Amp) + ZONE2 66
11.1-channel playback
2-channel
(Speaker out)
2-channel
(Speaker out)
11.1ch + ZONE2/3 67
13.1-channel playback
1-channel
(Speaker out)
1-channel
(Speaker out)
13.1ch + ZONE2/3-MONO 68
15.1-channel playback (using this unit as a
preamplifier)
2-channel (Pre-out) 2-channel (Pre-out) Preamplifier 43
The sound mode that can be selected varies according to the speaker configuration.
The following pages provide basic connection examples.
Refer to the example connection for “Example layout for Auro-3D 11.1
channel system” (v p. 55) when playing Auro-3D with a 11.1-channel
system using the basic 5.1-channel system and the front height, surround
height, Top Surround and Center Height speakers.
Also refer to the connection example for “Example layout for Auro-3D 13.1
channel system” (v p. 58) when playing Auro-3D with a 13.1-channel
system by adding the surround back, top surround and center height
speakers.
0
In addition to the connections described in p. 47 - 68, this unit allows for various
speaker connections with the “Amp Assign” setting.
Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign”
setting screen, which shows how to make connections in your environment.
Front
Center
Center
Surround Surround Back Front Wide Front Height
Subwoofer 1 Subwoofer 2 Subwoofer 3 Subwoofer 4
Rear Height Top Middle CH / TS
Surround Front Wide Rear Height CH / TS
Subwoofer 1 Subwoofer 2 Subwoofer 3 Subwoofer 4
Front Surround Back Front Height Top Middle
Speakers/Amp Assign
Back
Contents
Connections Playback Settings Tips Appendix
46
