AVR-1709/1609/1519/1509/689/589, AVC-1509
サービス時の注意事項
AVサラウンドレシーバー / アンプの初期化
について
マイコンやマイコン周辺部品、Digital 基板等を交換した場
合は、AV サラウンドレシーバー / アンプの初期化を行って
下さい。
1. "ON/OFF" ボタンを OFF にします。
2. "INPUTMODE" "SPEAKERS" 2 つのボタンを押した
状態で、"ON/OFF" ボタンを押して ON にします。
3. ディスプレイ表示が約 1秒間隔で点滅するのを確認後、
2つのボタンから指を離します。
*マイコンが初期化されます。
サービス時に使用する治具について
基板を修理する際、使用する治具 ( 延長ケーブルキット)
は 下記のとおりです。
必要に応じて販社サービスへ注文下さい。
00DSPK-561EXTENSIONUNITKIT :1
00DSPK-5629120CONN.JOINTKIT :1
ファームウェアをアップデートする際、使用する治具
(RS232C →製品内部コネクタ変換基板 +8Pケーブルキッ
) は下記のとおりです。
必要に応じて販社サービスへ注文ください。
00DSPK-581WRITINGUNIT :1
注意 : ・上記 3 の状態にならない場合は、もう一度操作 1
からやり直してください。
・初期化を行うとお客様が設定した内容が工場出
荷状態に戻りますので、あらかじめ設定内容を
控えておき初期化後再設定してください。
CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER/AM-
PLIFIER
AV SURROUND RECEIVER/AMPLIFIER initialization should
be performed when the µcom, peripheral parts of µcom, and
Digital P.W.B. are replaced.
1. Switch off the unit.
2. With the "INPUTMODE" and "SPEAKERS" buttons
pressed, press the "ON/OFF" button to turn the power on.
3. Check that the entire display is flashing with an interval of
about 1 second, and release your fingers from the 2 but-
tons and the microprocessor will be initialized.
JIG to use for servicing
When you repair the printing board, you can use the following
JIG (Extension cable kit). Please order to Denon Official Ser-
vice Distributor in your region if necessary.
00D SPK- 561 EXTENSION UNIT KIT : 1 Set
00D SPK- 562 9120 CONN. JOINT KIT : 1 Set
When you update the firmware, you can use the following
JIG (RS232C to internal connector conversion adapter with
8P cable kit ). Please order to Denon Official Service Distrib-
utor in your region if necessary.
00DSPK-581 WRITING UNIT : 1 Set
Note:If step 3 does not work, start over from step 1.
All user settings will be lost and this factory setting
will be recovered when this initialization mode.
So make sure to m+emorize your setting for re-
storing after the initialization.

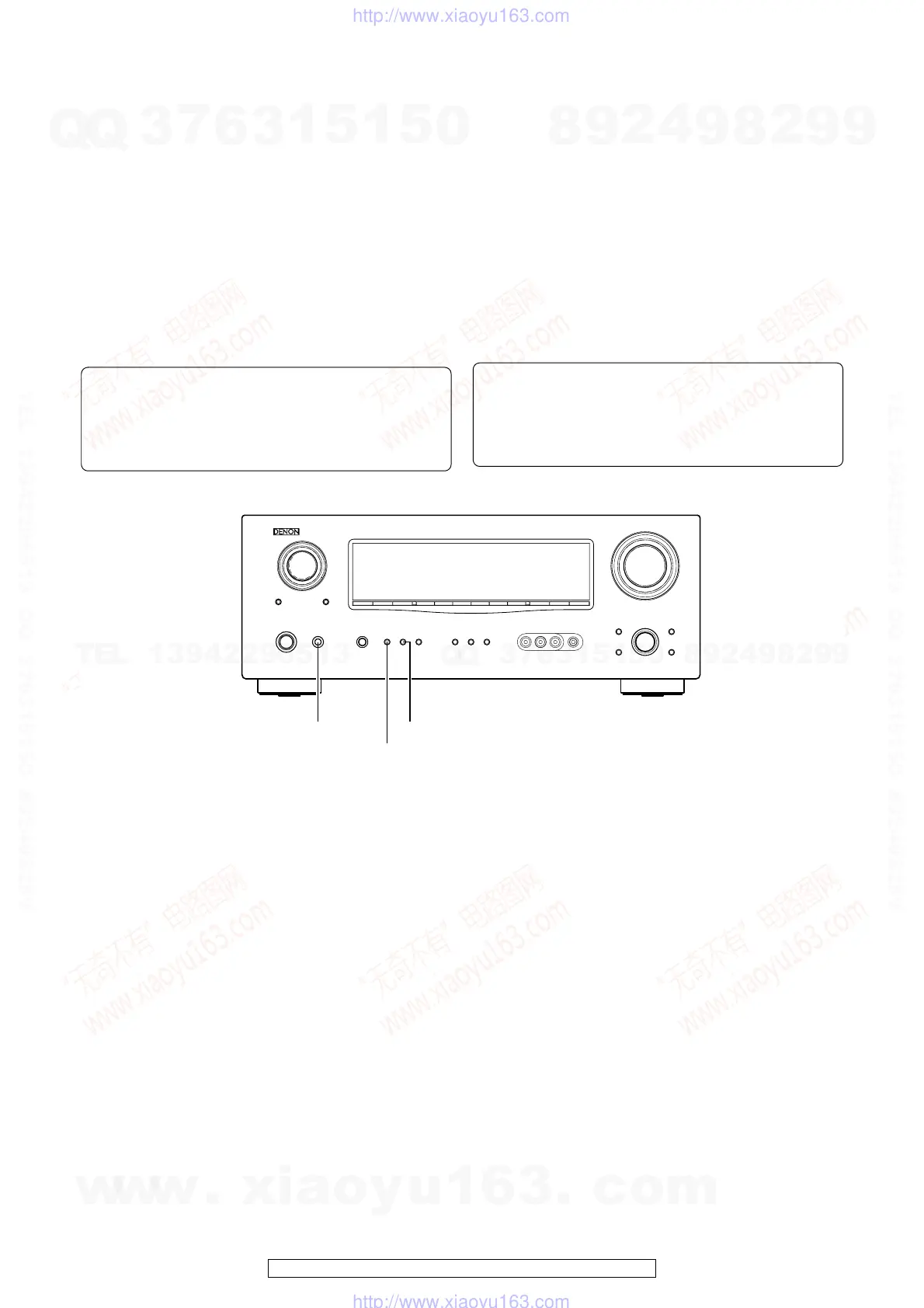

ON/OFF SPEAKERS
