Denon AVR-1509 Service Manual

21
AVR-1709/1609/1519/1509/689/589, AVC-1509

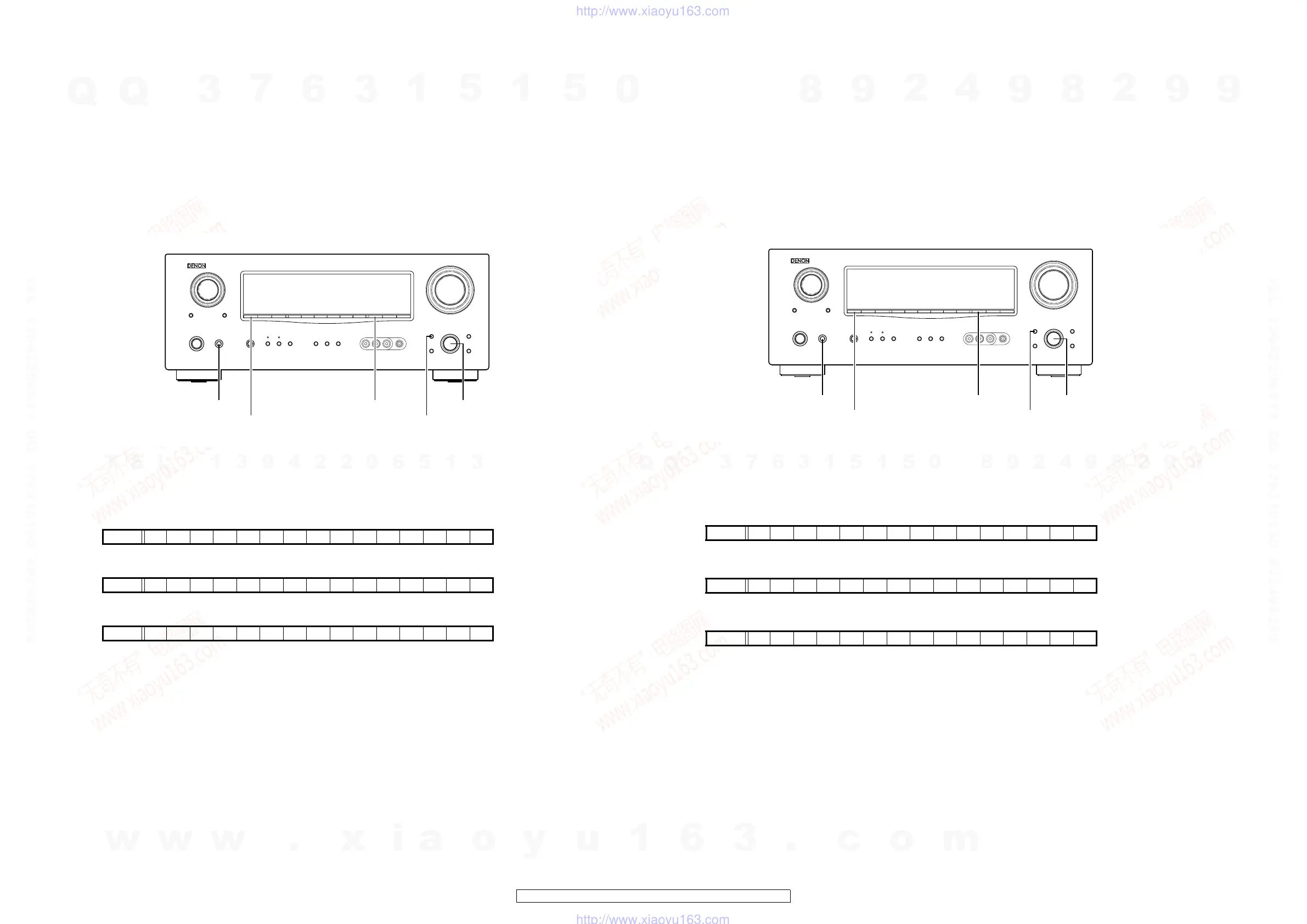

PROCEDURE FOR CHECKING ERRORS (Displaying the protection history)
Errors checking mode (Displaying the protection history)
1. Operation specifications
Error mode (Displaying the protection history):
When started up, the error information is displayed.
Starting up:
● All model commonness
With the "SYSTEM SETUP" and "MULT EQ" buttons pressed, press the "ON/OFF" button to turn the power on. The error (protection
history display) mode is set.
Now, press the "STATUS" button to turn on the FL display.
2. About the display on the FL display
When the "STATUS" button is pressed after setting the error (protection history display) mode, a history like the one shown below is
displayed, depending on the conditions.
(1) Normally (when there has been no protection incident)
(2) For ASO/DC (when the last protection incident was ASO or DC protection)
(3) For THERMAL (when the last protection incident was THERMALprotection)
When the "STATUS" button is pressed again after the above protection history is displayed, the normal display reappears.
FLD N O P R O T E C T
FLD P R T : A S O / D C
FLD P R T : T H E R M A L
ON/OFF MULT EQ ENTER
SYSTEM SETUP
STATUS
ERROR 確認 (PROTECTION 履歴表示 ) 方法
ERROR 確認 (PROTECTION 履歴表示 ) モード
1. 動作仕様
ERROR(PROTECTION 履歴表示 ) モード :
起動状態にて、ERROR 情報を表示します。
起動方法 :
●全モデル共通
"SYSTEMSETUP" と "MULTEQ" の２つのボタンを押した状態で、"ON/OFF" ボタンを押して電源を入れると、ERROR（PROTECTION
履歴表示）モードとなります。
その後、"STATUS" ボタンを押すと FLDisplay 表示されます。
2. FLDisplay 表示に関して
ERROR（PROTECTION 履歴表示）モード後に、"STATUS" ボタンを押すと、状況によって以下ような履歴を表示します。
(1) 正常時 ( 今まで PROTECTION が発生していない場合 )
(2) ASO/DC 時 ( 最後の PROTECTION が ASO または DCPROTECTION の場合 )
(3) THERMAL 時 ( 最後の PROTECTION が THERMALPROTECTION の場合 )
上記の PROTECTION 履歴表示後に、再度 "STATUS" ボタンを押すと、定常表示となります。
FLD
NO PROTECT
FLD
PRT : ASO / DC
FLD
PRT : THERMAL
ON/OFF MULT EQ ENTER
SYSTEM SETUP
STATUS
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-1509 Specifications

General

Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Response Bandwidth	10Hz-100kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
Output Impedance / Channel	8 ohms
Frequency Response	10Hz-100kHz
Digital Audio Inputs	2 Optical, 1 Coaxial
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS, DTS Neo:6
Surround Sound Effects	Virtual Surround
Audio D/A Converter	192kHz/24-bit
Output Power / Channel	75 W
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/Outputs	Component video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs	4 Analog Audio Inputs, 1 Analog Audio Output
