7.1-channel (Front height speaker) connection

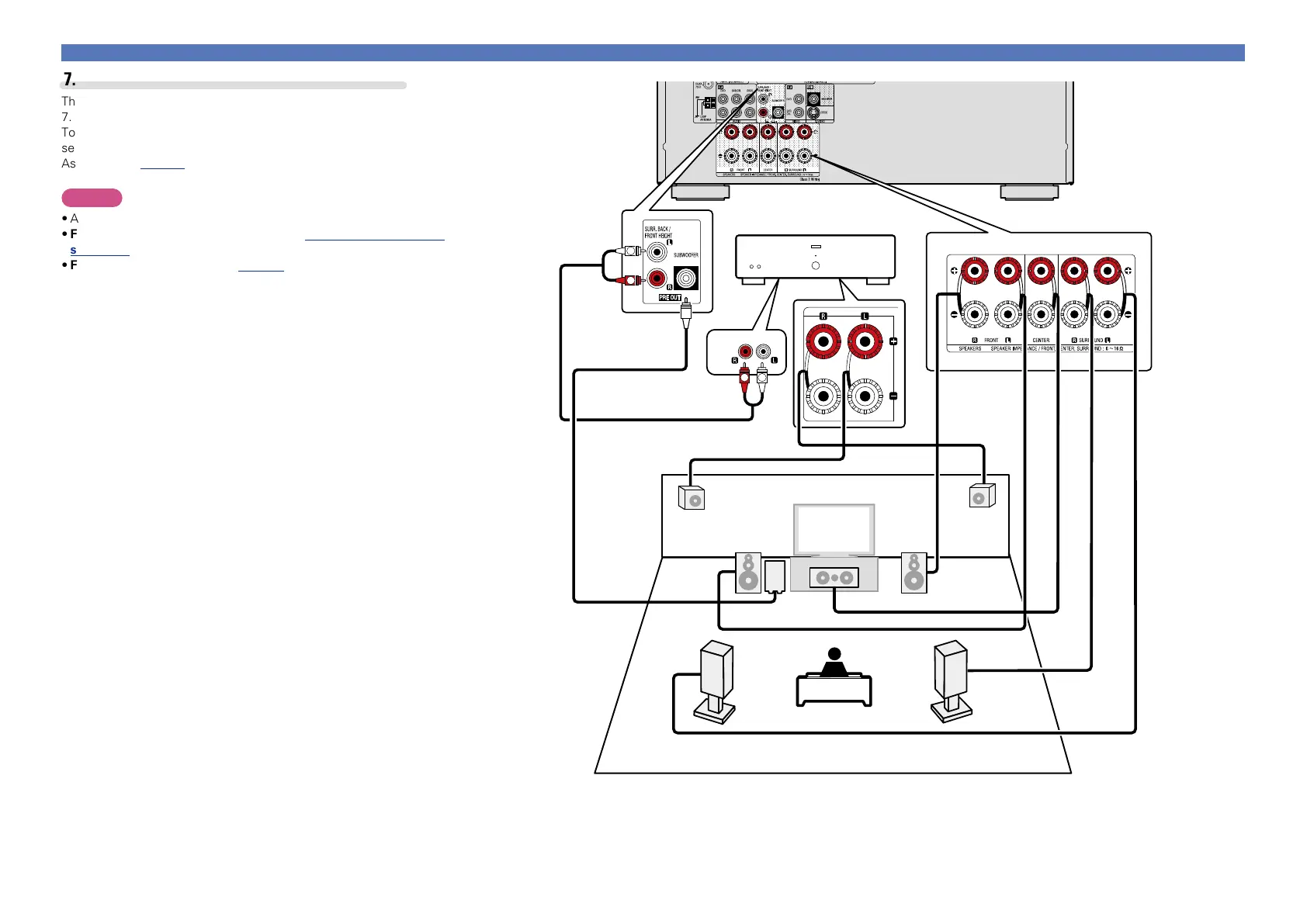

The illustration on the right shows a connection example for performing
7.1-channel playback using the front height speakers.
To perform 7.1-channel playback using the front height speaker,
set “Pre Assign” to “F.HEIGHT” in steps 3 and 4 for “Set up “Pre
Assign”” (vpage40).
NOTE
•A power amplifier (sold separately) is required for this connection.
•For speaker cable connections, see C page 6 “Connecting the
speakers”.
•For speaker impedance, see page36.
