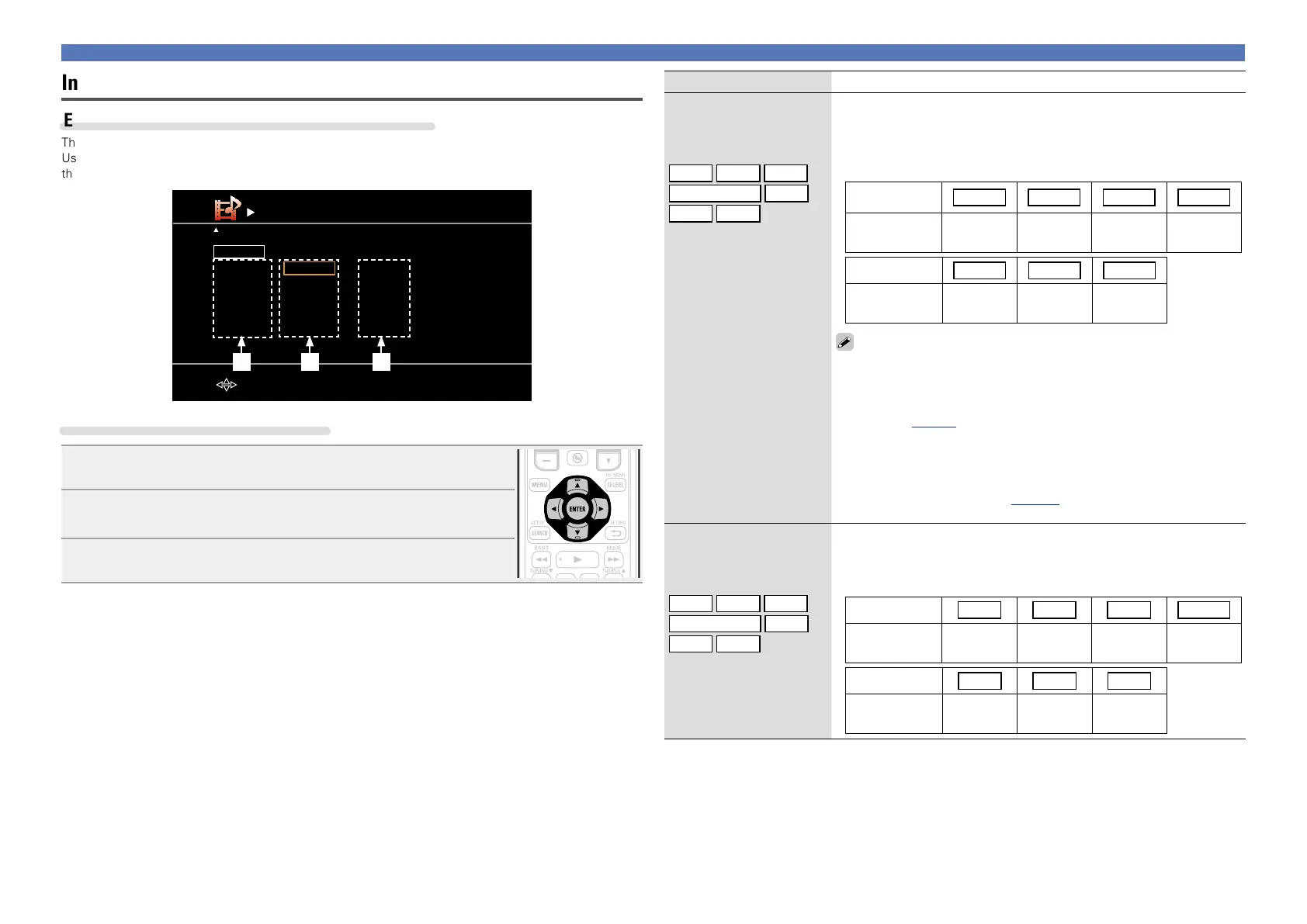

Denon AVR-1612 Owner's Manual

68
Input Assign
Examples of “Input Assign” menu screen displays
This screen appears when the “Input Setup” – “each input source” – “Input Assign” menu is selected.
Use the “Input Assign” menu to change the w HDMI input connectors and e Digital input connectors
that are assigned to the q input sources in default settings.
Default
BD
DVD
TV
SAT/CBL
GAME
HDMI1
HDNI2
None
HDMI3
HDMI4
None
None
OPT
COAX
None
Input Assign
G HDMI H G DIGITAL H
[ENTER] Enter[ ] Select
[1/2]
[RETURN] Return
ewq
Input assignments menu operations
1
Use uio p to move the highlight to the item you want to set.
2
Press ENTER, then use o p to select the input connector to be
assigned.
3
Press ENTER to register the setting.
Input Setup
Setting items Setting details
HDMI
Set this to change the HDMI
input connectors assigned
to the input sources.
BD DVD TV
SAT/CBL GAME
V.AUX DOCK
HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4
None : Do not assign an HDMI input connector to the selected input
source.
•At time of purchase, the settings of the different input sources are as
shown below.
Input source BD DVD TV SAT/CBL
Default
setting
HDMI
1
HDMI
2
None
HDMI
3
Input source GAME
V.AUX
DOCK
Default
setting
HDMI
4
None None
•An input source to which an HDMI input connector cannot be assigned
is displayed as “– – –”.
•To play the video signal assigned at “HDMI” combined with the audio
signal assigned at “Input Assign“ – “Digital”, select “Digital” at “Input
Mode” (vpage69).
•The audio signals input from the analog and digital connectors are not
output to the monitor.
•When a control dock for iPod is connected, signals cannot be assigned
to the HDMI connectors.
•When “HDMI Control” (vpage 62) is set to “ON”, HDMI input
connector cannot be assigned to “TV”.
Digital
Set this to change the digital
input connectors assigned
to the input sources.
BD DVD TV
SAT/CBL GAME
V.AUX DOCK
COAX (coaxial) / OPT (optical)
None : Do not assign a digital input connector to the selected input source.
•At time of purchase, the settings of the different input sources are as
shown below.
Input source BD
DVD TV SAT/CBL
Default
setting
None None OPT COAX
Input source GAME V.AUX
DOCK
Default
setting
None None None
