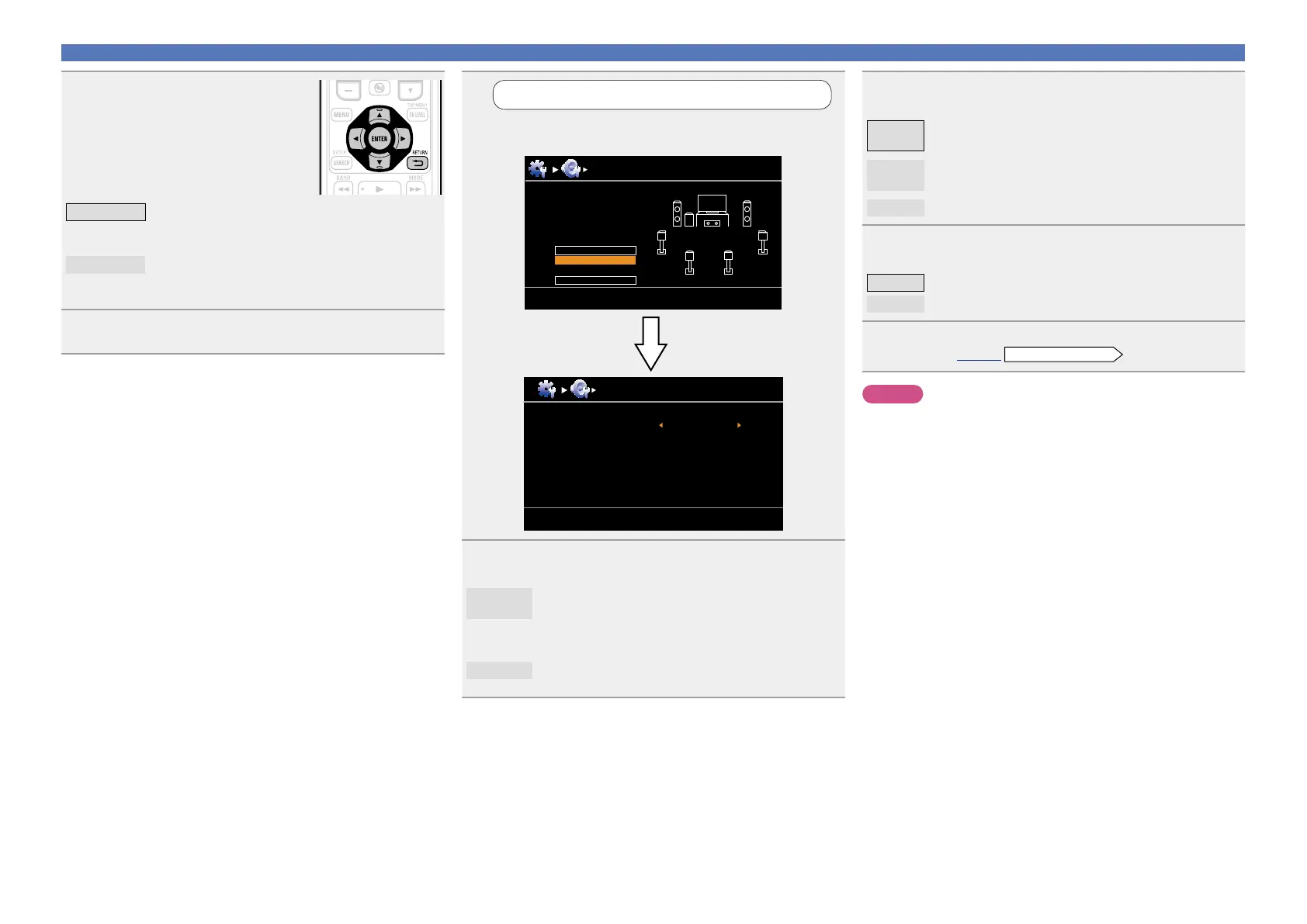

Set up speakers
7
Set up “Channel Select”
Use ui to select “Channel Select”, and then press
ENTER.
Subwoofer Measure
Channel Select
Surround Back Measure (2 sp)
[RETURN] Return
MultEQ
Preparation
Set the following items
if necessary.
Pre Assign
Channel Select
Audyssey Auto Setup
Auto Setup Start
[RETURN][ENTER] Enter Cancel
8
Use ui to select a channel.
Surround
Back
Select the number of surround back speakers to be
used. In this case, go to step 9.
•“Surround Back” can be set when “Pre Assign” is
set to “NORMAL”.
Subwoofer
Select for no subwoofer to be used. In this case, go
to step 10.
9
Use o p to set whether or not a surround back
channel is measured.
Measure
(2 sp)
Set for measuring two surround back speakers.
Measure
(1 sp)
Set for measuring a surround back speaker.
Skip
Set for no measuring of a surround back speaker.
10
Use o p to set whether or not a subwoofer channel
is measured.
Measure Set for measuring a subwoofer.
Skip
Set for no measuring of a subwoofer.
11
Press RETURN B.
Proceed to page13
STEP1 Preparation
step 6.
NOTE
After performing Audyssey
®
Auto Setup, do not change the speaker
connections or subwoofer volume. In event of a change, perform
Audyssey
®
Auto Setup again.
5
Use o p to select the
conguration of the connected
speakers.
NORMAL
Set for connecting the surround back speakers to
the SURR.BACK/FRONT HEIGHT connector in PRE
OUT.
F.HEIGHT
Set for connecting the front height speakers to the
SURR.BACK/FRONT HEIGHT connector in PRE
OUT.
6
Press RETURN B to exit the “Pre Assign” setting.
Basic version
Advanced version
Information
Advanced version
BD

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
