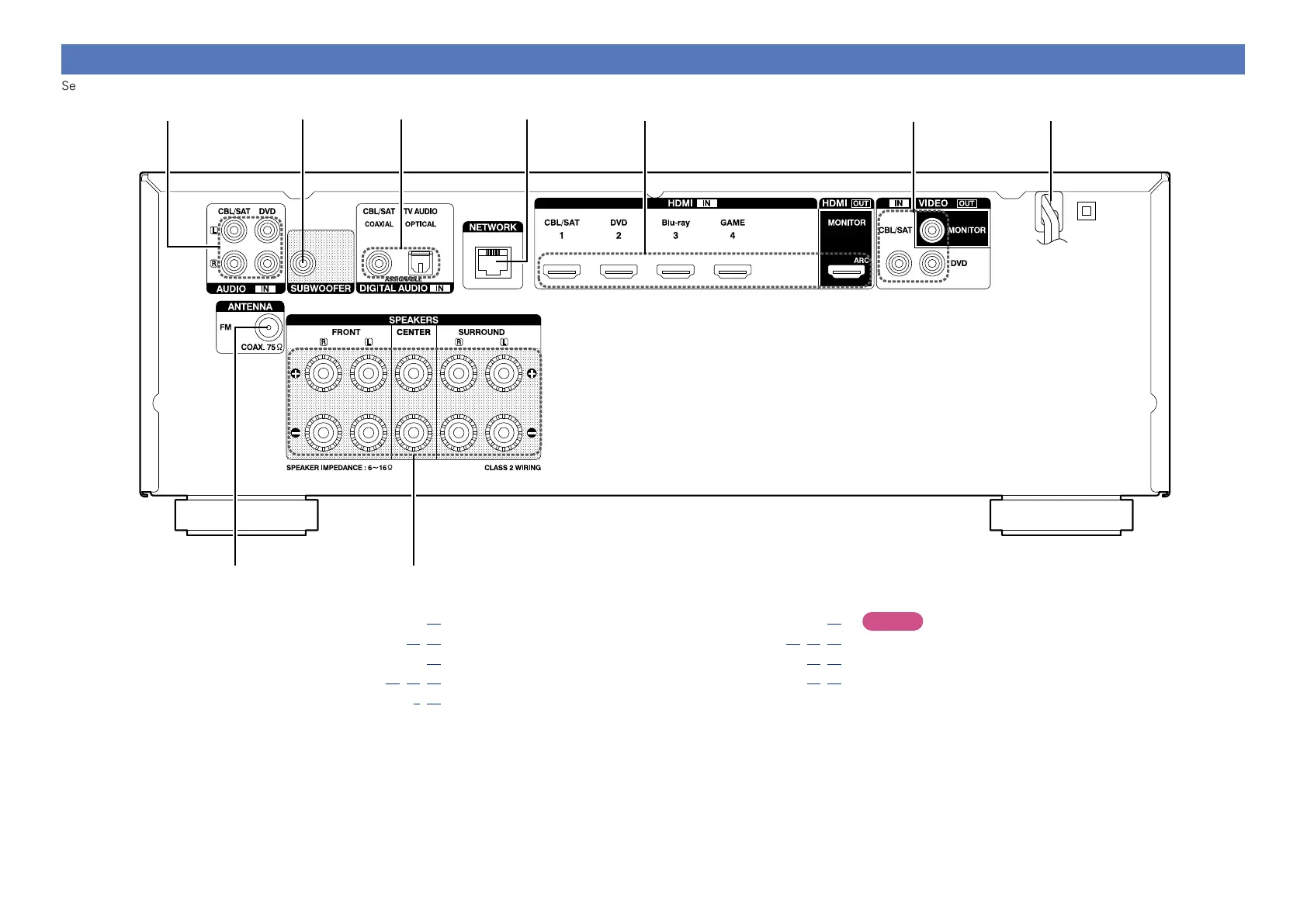

Rear panel
See the page indicated in parentheses ( ).
q w
t r
ei yuo
q FM antenna terminal (ANTENNA) ········································· (17)
w Speaker terminals (SPEAKERS) ······································· (71, 72)
e Power cord ··············································································· (19)
r Video connectors (VIDEO) ·········································· (13, 14, 15)
t HDMI connectors ································································· (9, 10)
y Network connector (NETWORK) ··········································· (18)
u Digital audio connectors (DIGITAL AUDIO) ·············· (13, 14, 15)
i Subwoofer connector (SUBWOOFER) ···························· (71, 72)
o Analog audio connectors (AUDIO) ·································· (14, 15)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
