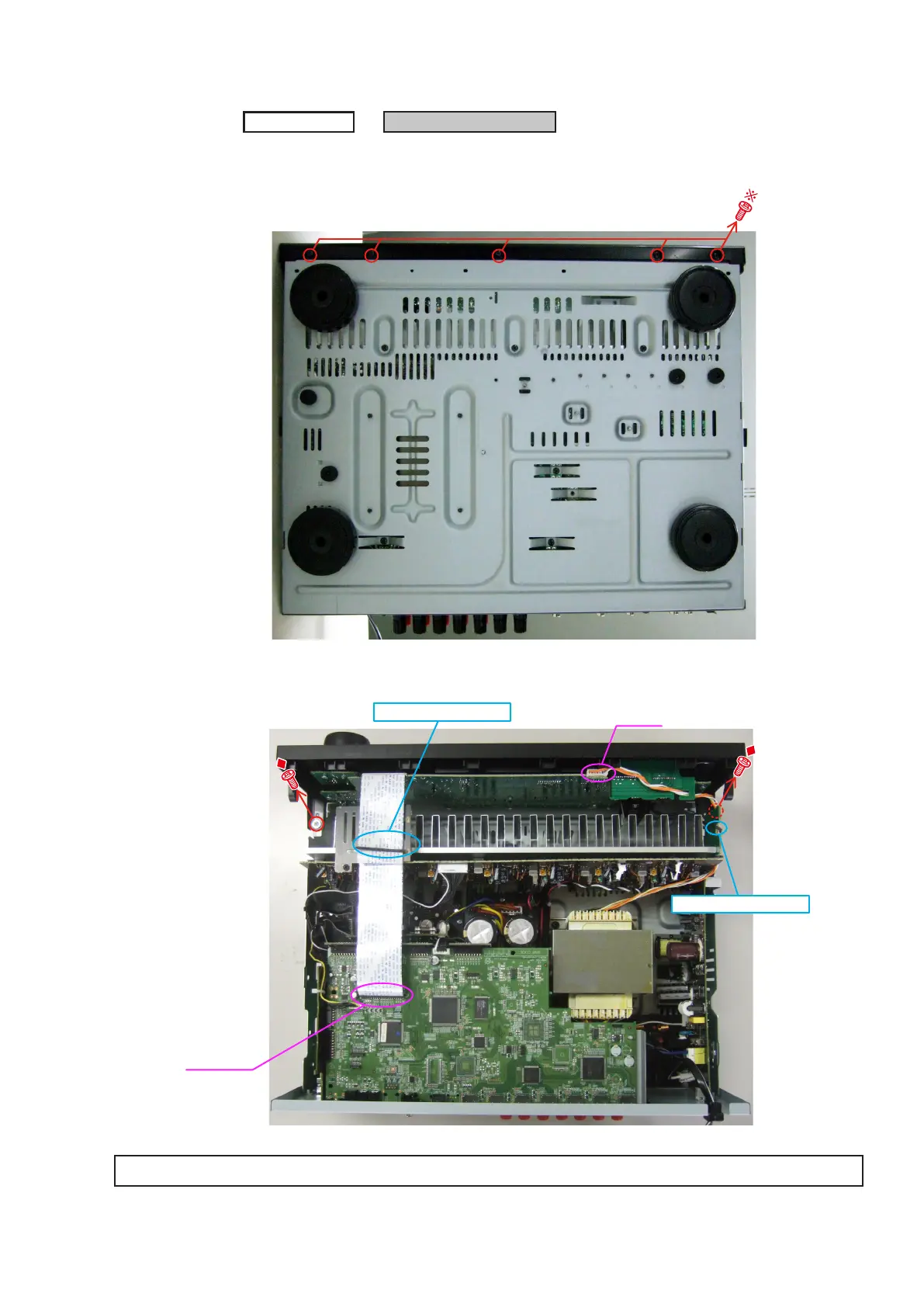

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Disconnect the connector wires and FFC cable, then remove the screws.
TOP COVER
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
CP101
FFC cable
STYLE PIN : Loosen
STYLE PIN : Loosen
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
