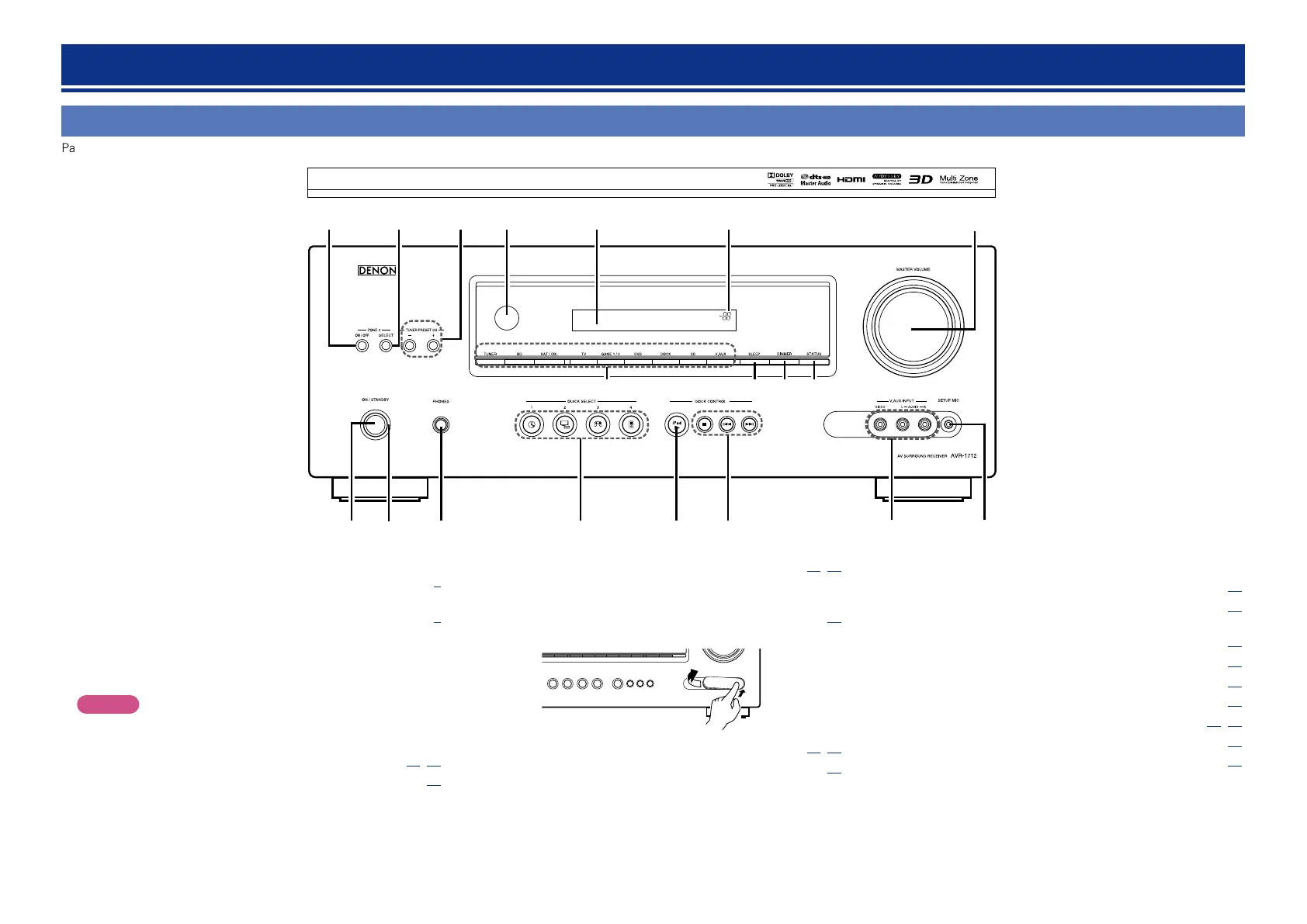

Panel delantero
Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
Q2Q3Q5 Q4 Q1
Q0 o
i
u
Q7Q6 Q8 Q9
tr yewq
q Botón de alimentación
(ON/STANDBY) ································································· (C 5)
Enciende y apaga la unidad (modo de espera).
w Indicador de alimentación ················································ (C 5)
e Conector de auriculares (PHONES)
Cuando enchufe unos auriculares a este conector, se dejará de oír
el audio a través de los altavoces conectados o de los conectores
PRE OUT.
NOTA
Para evitar pérdida de audición, no suba el volumen
excesivamente cuando use los auriculares.
r Botones QUICK SELECT ··················································· (44, 46)
t Botón de reproducción del iPod (iPod 1) ····························· (24)
Q0 Indicador de volumen principal
Q1 Pantalla ····················································································· (82)
Q2 Sensor de mando a distancia ················································· (85)
Q3 Botones de los canales presintonizados
(TUNER PRESET CH +, –) ························································ (26)
Q4 Botón ZONE2 SELECT ····························································· (45)
Q5 Botón ZONE2 ON/OFF ···························································· (45)
Q6 Botones selectores de fuente de entrada ····························· (20)
Q7 Botón SLEEP ······································································ (42, 46)
Q8 Botón DIMMER ········································································ (66)
Q9 Botón STATUS ········································································ (58)
y Botones del sistema iPod ················································· (23, 96)
•Botón de parada (2)
•Botones de omisión (8, 9)
u Conectores V.AUX INPUT ······················································ (10)
Quite la tapa de los conectores cuando quiera utilizarlos.
i Conector SETUP MIC ························································ (15, 39)
o Control MASTER VOLUME ····················································· (21)
