Front panel

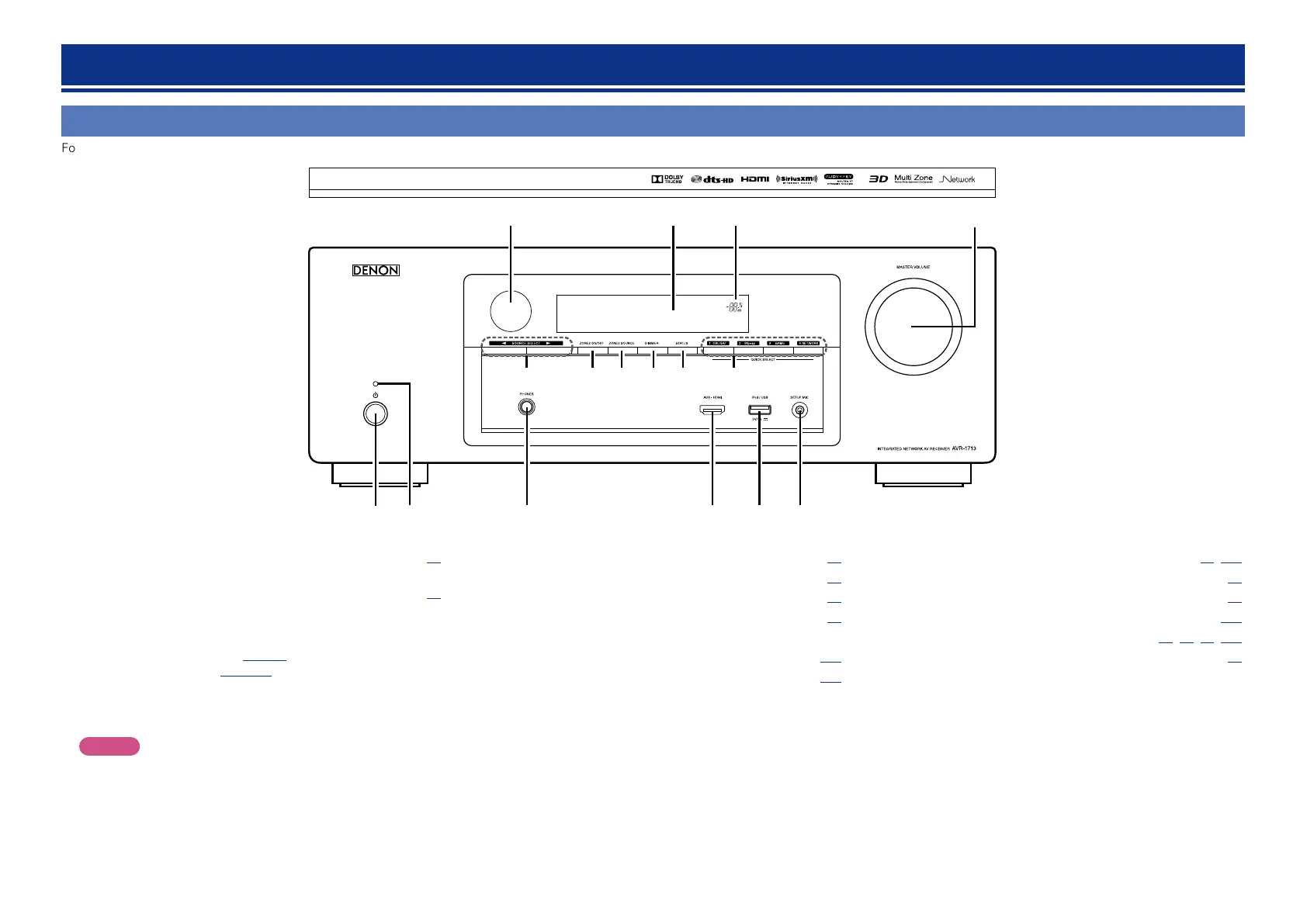

For buttons not explained here, see the page indicated in parentheses ( ).
Q1 Q6Q2 Q3 Q4 Q5
yr teq w
o
iQ0 u
q Power operation button (X) ··················································· (27)
Turns power to this unit on and off (standby).
w Power indicator ······································································· (27)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•When “HDMI Control” (vpage90) is set to “On” : Red
•When “IP Control” (vpage101) is set to “Always On” : Red
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q1 SOURCE SELECT buttons (0 1) ··································· (27, 126)
Q2 ZONE2 ON/OFF button ··························································· (78)
Q3 ZONE2 SOURCE button ·························································· (78)
Q4 DIMMER button ····································································· (105)
Q5 STATUS button ··················································· (30, 44, 48, 106)
Q6 QUICK SELECT buttons ·························································· (75)
r AUX-HDMI connector ····························································· (10)
t iPod/USB port ········································································· (16)
y SETUP MIC jack ······································································· (21)
u MASTER VOLUME knob ························································· (28)
i Master volume indicator
o Display ···················································································· (111)
Q0 Remote control sensor ························································· (114)
