Denon AVR-1713 Service Manual

13

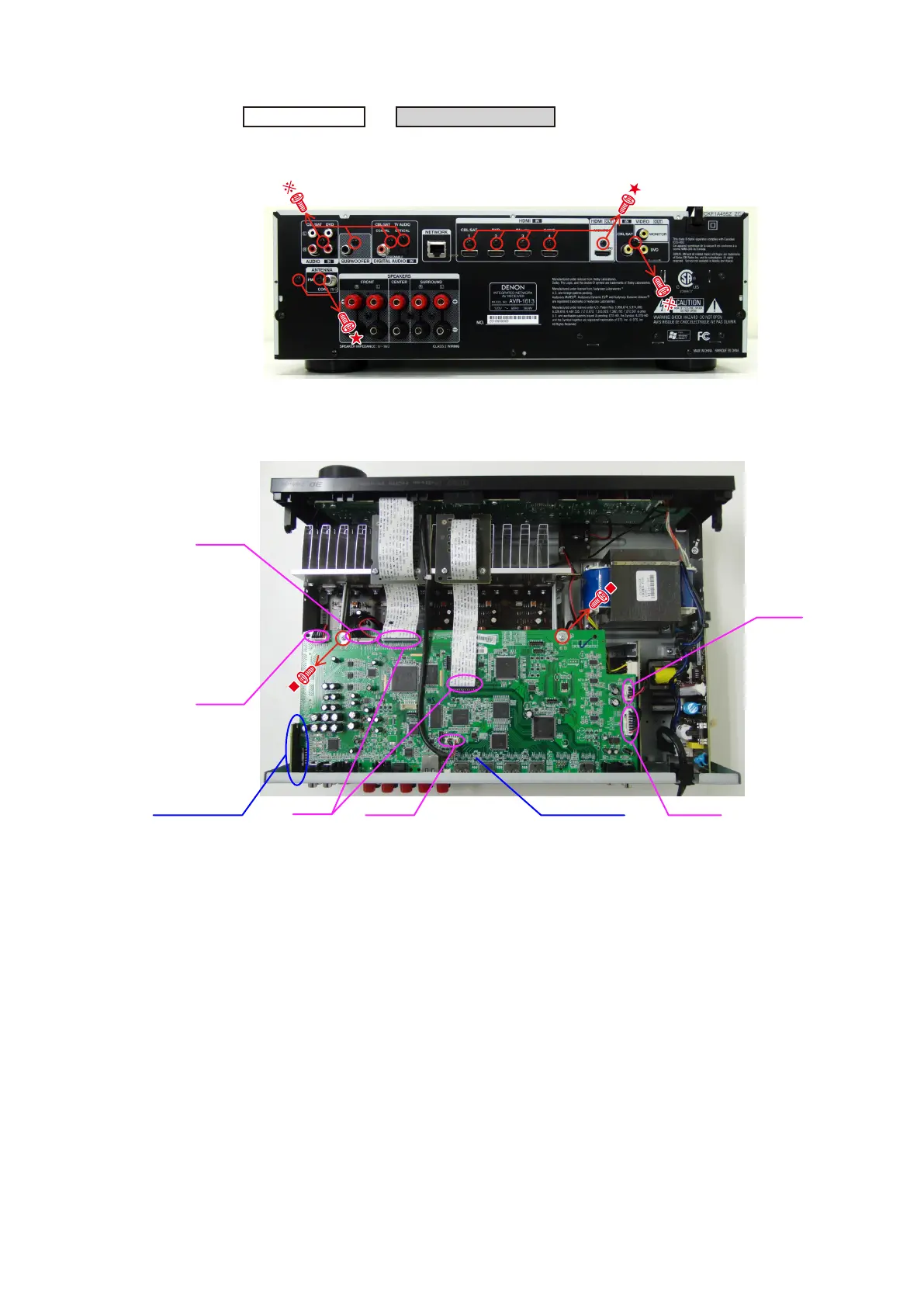

2. DIGITAL PCB ASSY
(1) Remove the screws.
(2) Remove the screws.
Disconnect the connector wires and FFC then disconnect the TUNER PCB.
CABINET TOP
DIGITAL PCB ASSY
→
Proceeding :

Shooting direction: A
CN751
CN893
TUNER PCB
FFC
CN851
CN892
CN771
DIGITAL PCB

Denon AVR-1713 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
Preset stations quantity	56
Internet radio services supported	Last.fm
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	151 mm
Weight	8300 g
