Denon AVR-1713 Service Manual

66
YES
YES
YES
(20) Check xtal oscillator.
Is there 28.6363MHz oscillation of X7201?
(21) Check RESET.
Is RESET waveform conrmed at IC721 (97pin)? (If reference
waveform, proceed to "YES".)
HDMI output circuitry is defective (IC721 and surrounding circuitry).
Replace the IC721.
(22) Check control signal(I2C).
Is waveform conrmed at Test point (SDA/SCL). (If not continued
to " L", proceed to "YES".)
The X7201 or IC721 is defective.
Replace the new parts.
The RESET pattern or IC721 is defective.
Replace the new parts.
The SDATA/SCL line pattern is defective.
NO
NO
NO
YES

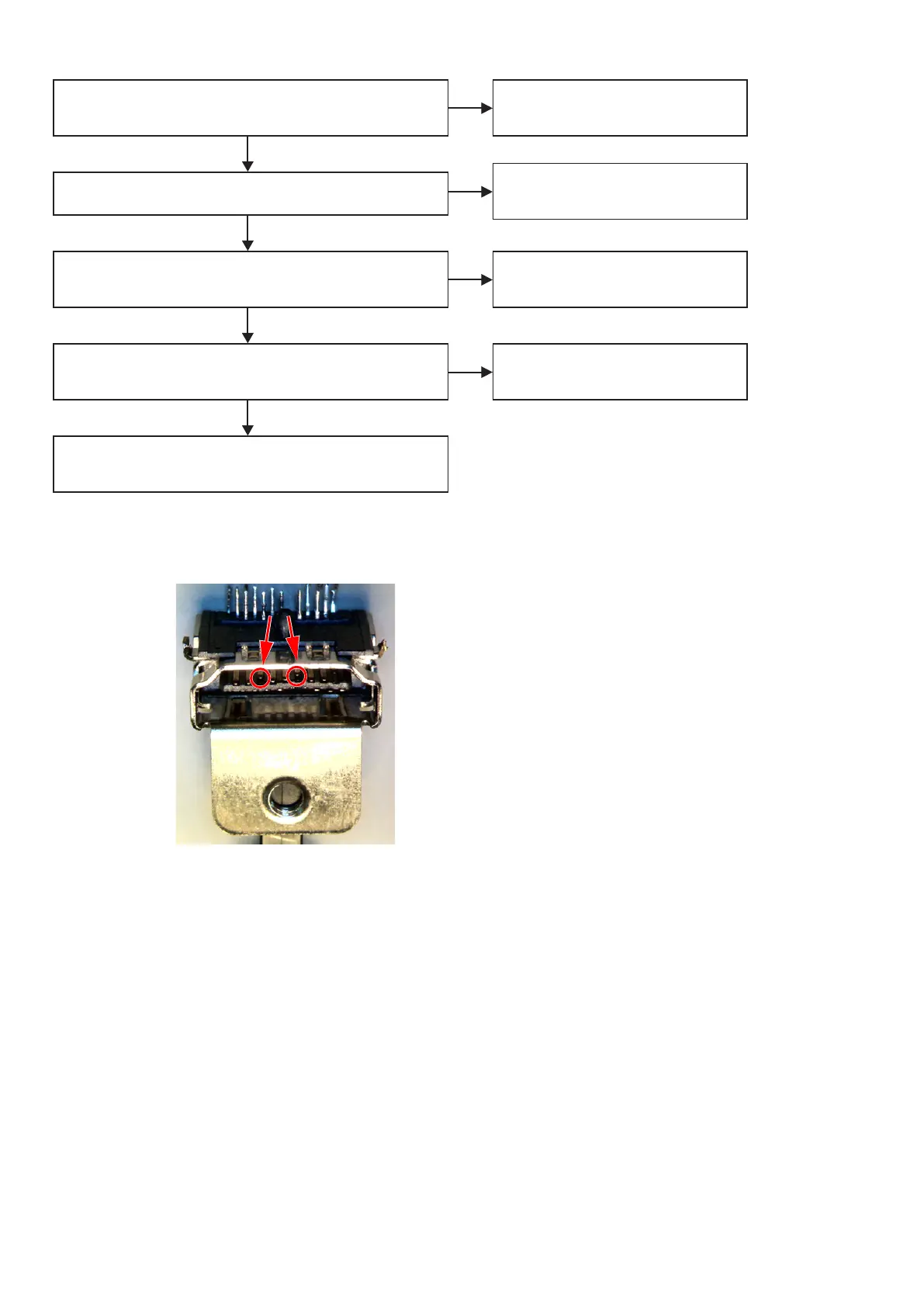

(19) Check power supply.
Are 1.8V or 3.3V supplied to IC721 (each power supply pin)?
The power supply circuitry is defective.
NO
(*1) Abnormal sample of HDMI connector : The internal terminal has bent.

Denon AVR-1713 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
Preset stations quantity	56
Internet radio services supported	Last.fm
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	151 mm
Weight	8300 g
