136
NJM2595M (DIGITAL : IC901)
NJM2595
- 1 -
5-INPUT 3-OUTPUT VIDEO SWITCH
GENERAL DESCRIPTION PACKAGE OUTLINE
FEATURES
5-input 3-output
Operating Voltage ±4.0 to ±6.5V
Operating current ±15mAtyp. at Vcc=±5V
Crosstalk -65dBtyp.
Internal 6dB Amplifier
Internal 75 Driver
Bipolar Technology
Package Outline DIP16,DMP16

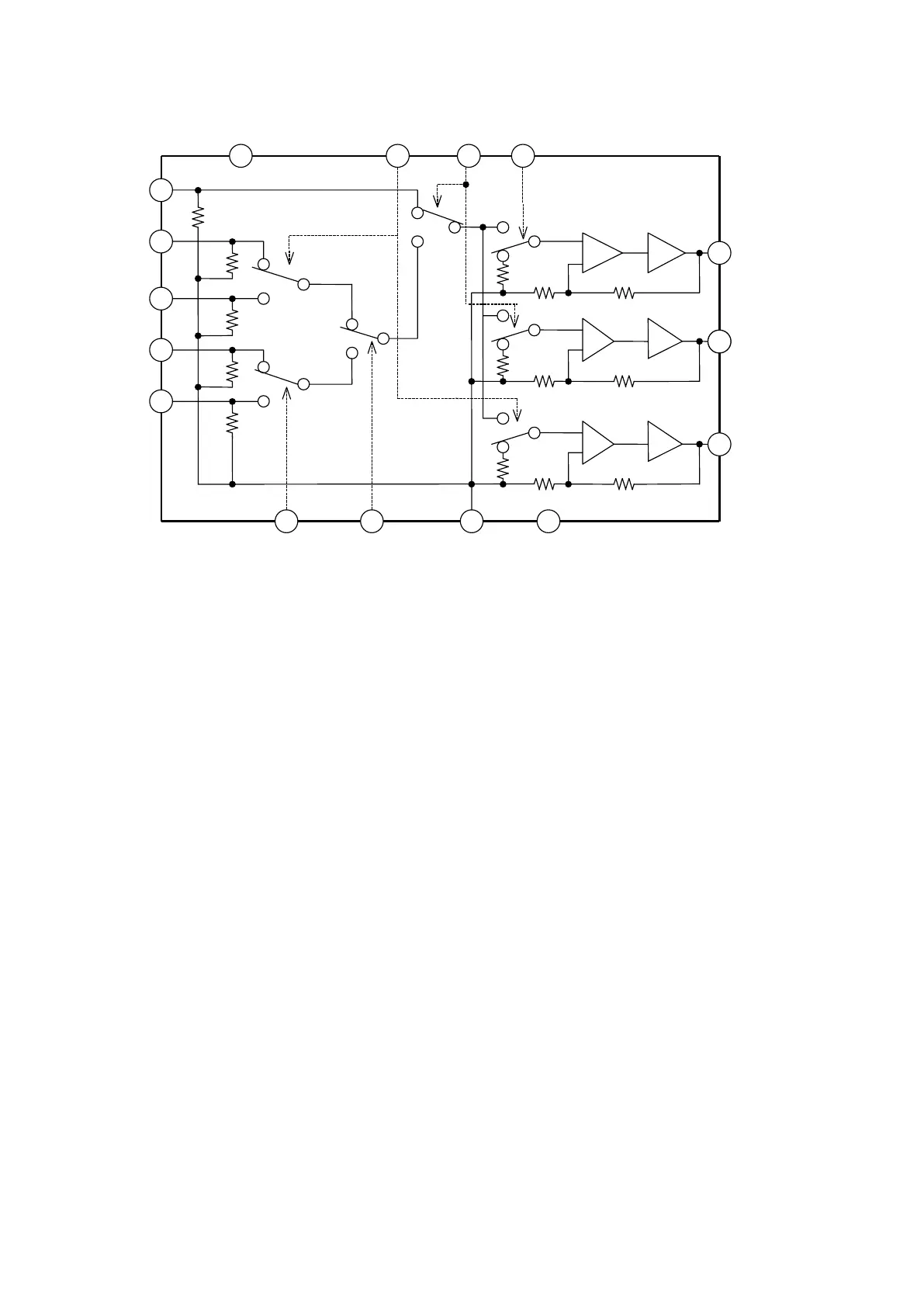

PIN CONFIGURATION and BLOCK DIAGRAM
13
9
7
5
3
20k
20k
20k
20k
16
10 14 2
1
15
11
81264
6dB
Amp
75
Driver
S3
S2
S4
S1
20k
20k
20k
S5
S6
S7
Vin1
Vin2
Vin3
Vin4
Vin5
SW3 SW4
SW5SW1SW2V
+
GND V
-
Vout3
Vout2
Vout1
6dB
Amp
6dB
Amp
75
Driver
75
Driver
The NJM2595 is a 5-input 3-output video switch. Its switches
select one from five signals received from VTR,TV,DVD,
TV-GAME and others.
The NJM2595 is designed for audio items, such as AV amplifier
and others.
NJM2595D NJM2595M
