Denon AVR-1905 Service Manual

8
AVR-1905/785 AVC-1590
714±50mV
p-p
Volts
IRE:FLT
Y-Signal
-20.0 -10.0 0.0
10.0
20.0 30.0
0.5
0.0
100.0
0.5
40.0 50.0 60.0
486±50mV (U.S.A. & Canada model)
p-p
Volts
IRE:FLT
0.0
20.0
40.0
-0.5
-50.0
50.0
0.0
0.5
0.0
60.0
80.0
486±50mV (U.S.A. & Canada model)
p-p
Volts
IRE:FLT
0.0
20.0
40.0
-0.5
-50.0
50.0
0.0
0.5
0.0
60.0
80.0

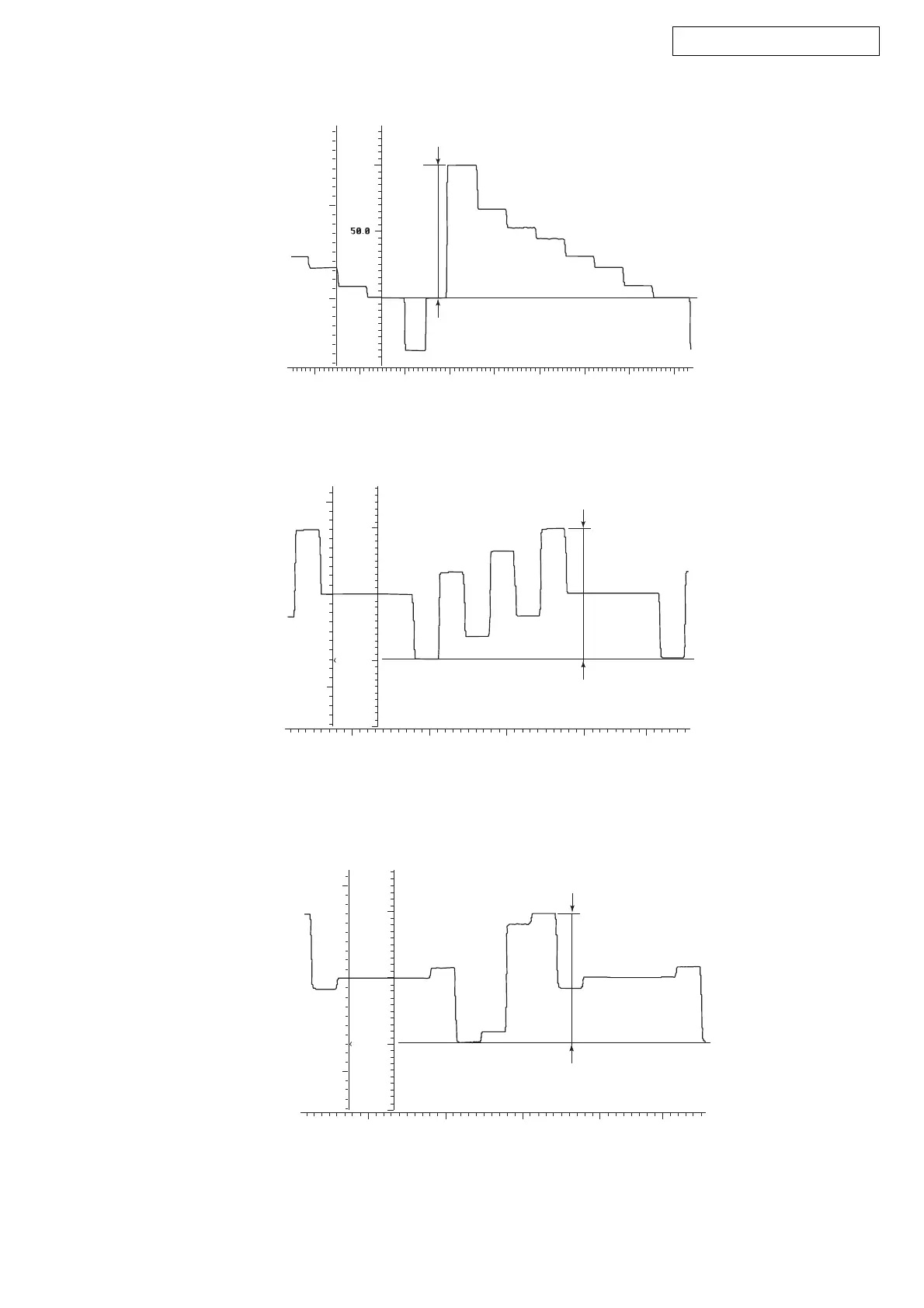

Fig.1 Component Video Y signal
Fig.2 Cb signal
Fig.3 Cr signal

Denon AVR-1905 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	80 W
Product color	Black
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital EX, Dolby Pro Logic IIx
Digital Signal Processing (DSP)	Yes
HDMI in	0
Composite video in	4
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	3
S-Video outputs quantity	2
Ethernet LAN	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	171 mm
Width	434 mm
Height	416 mm
Weight	11900 g
