Denon AVR-2105 Service Manual

230
AVR-2105/885 / AVC-1890

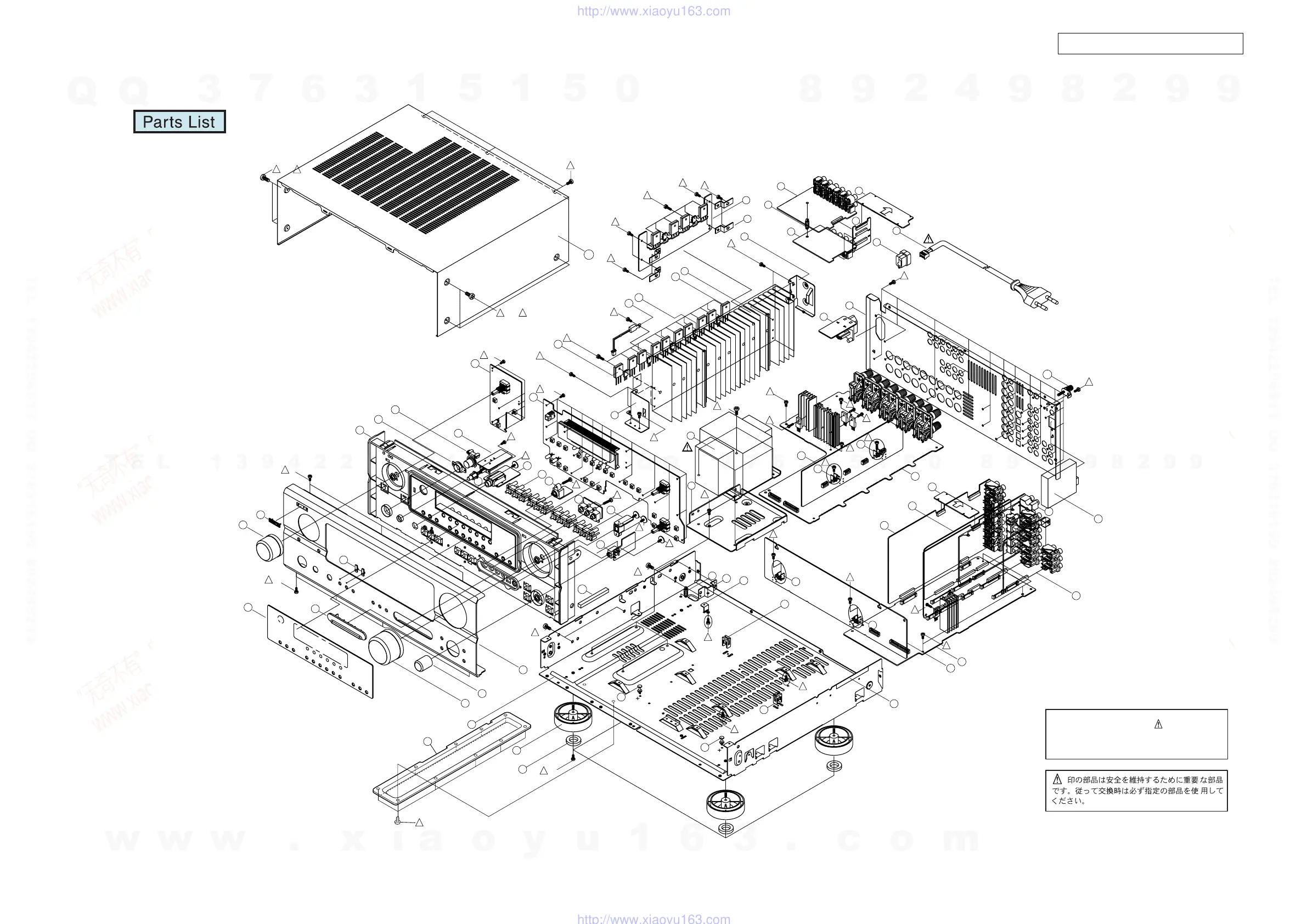

EXPLODEDB VIEW (FOR EUROPE, ASIA, KOREA MODEL)
65
AX10
55
56
AX19
AX2
EX2
LX2
AX4
A
58
22
64 X4
29
27
24
23 X4
25
61
24
28
60
25
26
AX2
AX2
AX2
A
57
A
A
EX4
A
BX39
B
AX3
JX3;
KX3
JX3;
KX3
AX2
AX6
BX3
38
HX6
FX4
53 x4
54
45
19
17
38
38
HX15
1
2
3
BX4
5
6
49
AX2
12
15
16 X4
21
9
10
11
13
4
8
14
18
20
A
A
59
42
41
43
27
40
C
GX2
CX2
46
C
DX2
D
7
39
A
G
34
37
35
36
A
AX2
A
50
52
48
51
47
38
63
31
32
Ax3
30
A
A
AX2
44
33
B
A
C
K
B
A
C
K
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by the
manufacturer.
WARNING:
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-2105 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Number of Channels	7.1
Component Video Inputs	3
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	102 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Digital Sound Processor (DSP)	Yes
HDMI Switching	No
Video Conversion/Scaling	No
Output Impedance / Channel	8 ohm
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Dolby Decoding	Dolby Digital, Dolby Pro Logic II
DTS Decoding	DTS, DTS Neo:6
Digital Audio Inputs	2 coaxial, 5 optical
Audio D/A Converter	24bit / 192kHz
Tuner Frequency Range	AM: 522 - 1611kHz, FM: 87.5 - 108MHz
Dimensions (W x H x D)	434 x 171 x 377 mm
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
