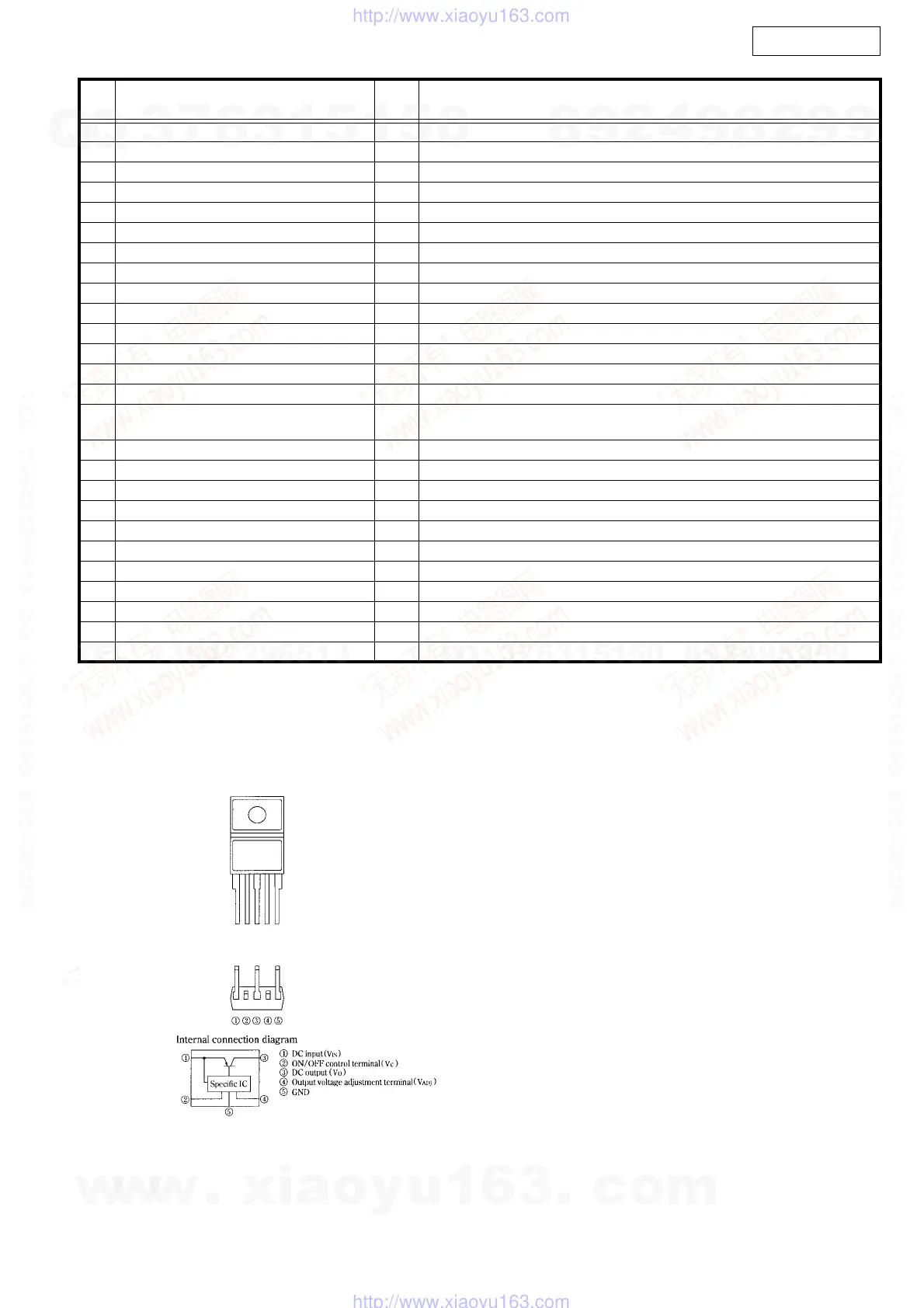

Denon AVR-2106 Service Manual

14
AVR-2106/886
PQ20RX11J00H (IC103X)
75 MIC_DET I MIC DETECT INPUT
76 POWER_RELAY O POWER RELAY CONTROL
77 STBY_LED(RED) O STBY LED RED CONTROL
78 VCR_MUTE/94A27_STB O TA94A27(IC201T,202T) STB
79 3811/94A27_CLK O TA94A27(IC201T,202T) CLK/BD3811 CLK
80 3811/94A27_DATA O TA94A27(IC201T,202T) DATA/DB3811 DATA
81 MUTE_POWER O MUTE CONTROL
82 4094_STB(RLY) O BU4094(IC551) STB
83 4094_STB(RLY_MUTE) O BU4094(IC553) STB
84 4094_STB(MUTE) O BU4094(IC552) STB
85 S-MON_DET I S-MONITOR DETECT
86 COMP_VIDEO_DET I COMPONENT SIGNAL INPUT DETECT
87 C_VIDEO_DET I CONPOSIT SIGNAL INPUT DETECT
88 S_VIDEO_DET I S VIDEO SIGNAL INPUT DETECT
89 RS232C_SW O
SN74HAHCT08(IC203) POWER CONTROL/ LMS202IMX(IC202) POWER
CONTROL
90 KEY_IN1 I KEY1 SIGNAL INPUT
91 KEY_IN2 I KEY2 SIGNAL INPUT
92 KEY_IN3 I KEY3 SIGNAL INPUT
93 XM-DACMDI I PCM1791ADBR(IC205X) MDI SIGNAL
94 STEP_OPTION I AREA OPTION SELECT
95 XM-DACMC O PCM1791ADBR(IC205X) MC SIGNAL
96 AVss GND GND
97 XM-DACMS O PCM1791ADBR(IC205X) MS SIGNAL
98 VREF 5V VREF
99 AVcc 5V POWER 5V
100 74781_CE/J I LC74781(IC1006) CS
PIN
No.
PIN NAME I/O FUNCTION
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
