Important information
tMake connections as follows before using this unit. Select an
appropriate connection type according to the devices to be
connected.
tYou may need to make some settings on this unit depending
on the connection method. Refer to each description for more
information.
tSelect the cables (sold separately) according to the devices
being connected.
NOTE
tDo not plug in the power cord until all connections have been
completed. (When the Setup wizard is running, follow the instructions
in the Setup wizard screen for making connections.)
tWhen running the Setup wizard, turn off the power supply of
connected devices.
tWhen making connections, also refer to the operating instructions of
the other devices being connected.
tBe sure to connect the left and right channels properly (left with left,
right with right).
tDo not bundle power cords together with connection cables. Doing
so can result in noise.
Connections
Converting input video signals for output (Video conversion function)
This unit is equipped with four types of video input connectors (HDMI, Component video, S-Video and video) and two types of video output
connectors (HDMI and video).
Use the connectors corresponding to the devices to be connected.
This function automatically converts various formats of video signals input to this unit into the formats used to output the video signals from
this unit to a monitor.

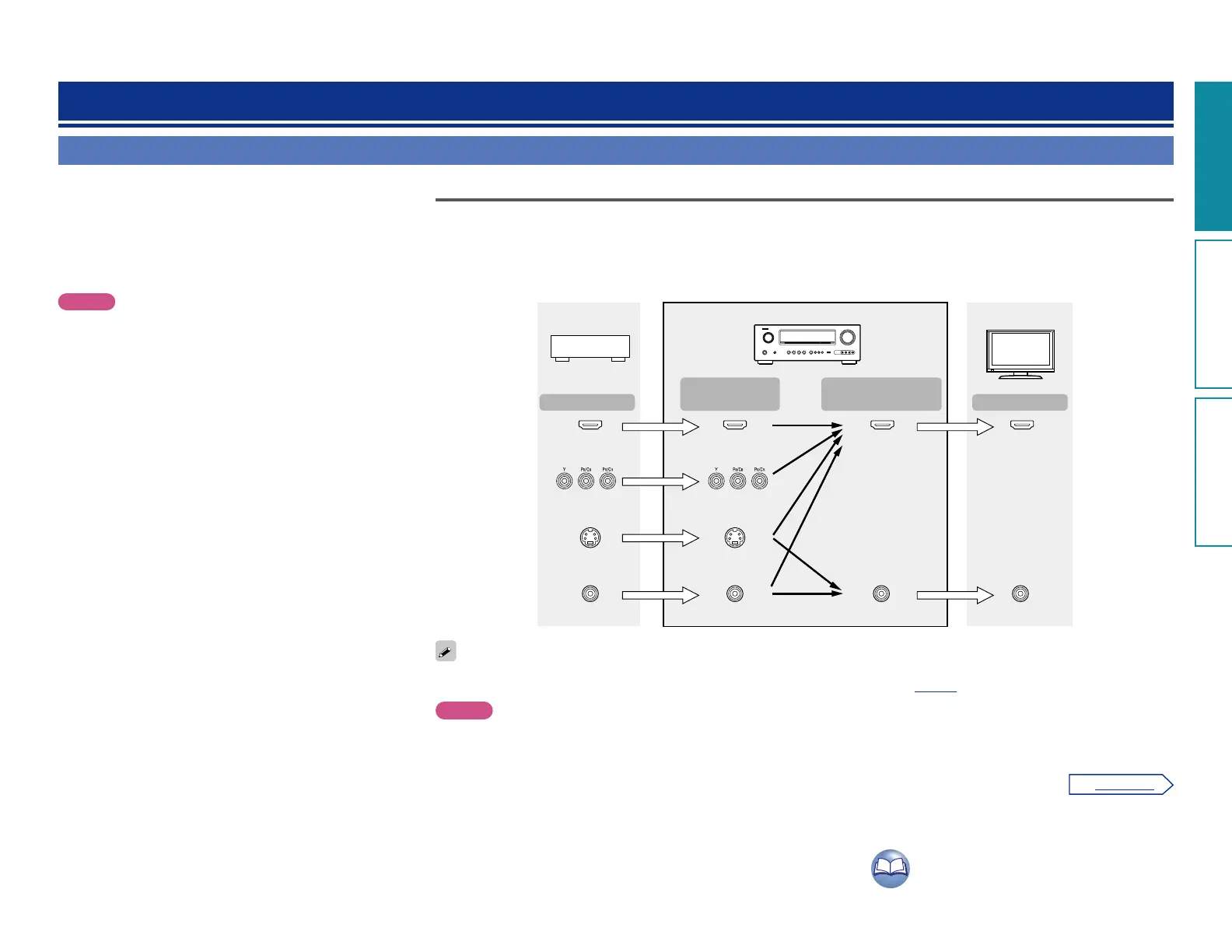

GFlow of video signals for MAIN ZONEH
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor (TV)
HDMI connector
Component video
connectors
S-Video
connector
Video connector
HDMI
connector
Video connector
HDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
tThe video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60 formats.
tResolutions of HDMI-compatible TVs can be checked at“HDMI Monitor Information” (
vpage84).
NOTE
tHDMI signals cannot be converted into analog signals.
tComponent video input signals cannot be converted into Video format.
tWhen a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate.
