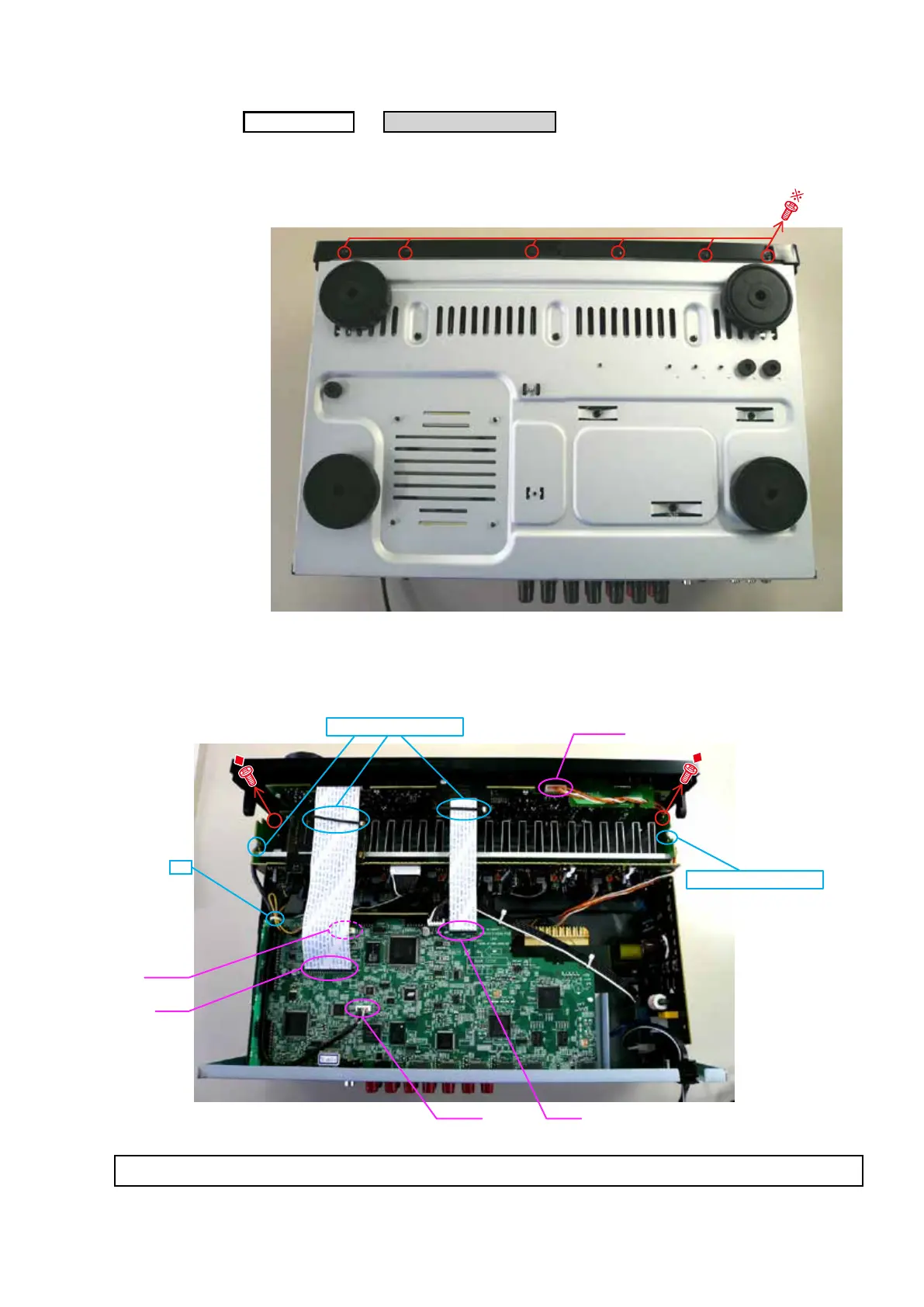

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Remove the screws.
TOP
COVER
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
N2801 FFC
CP4400
FFC
N3405
STYLE PIN : Loosen
STYLE PIN : Loosen
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
