15

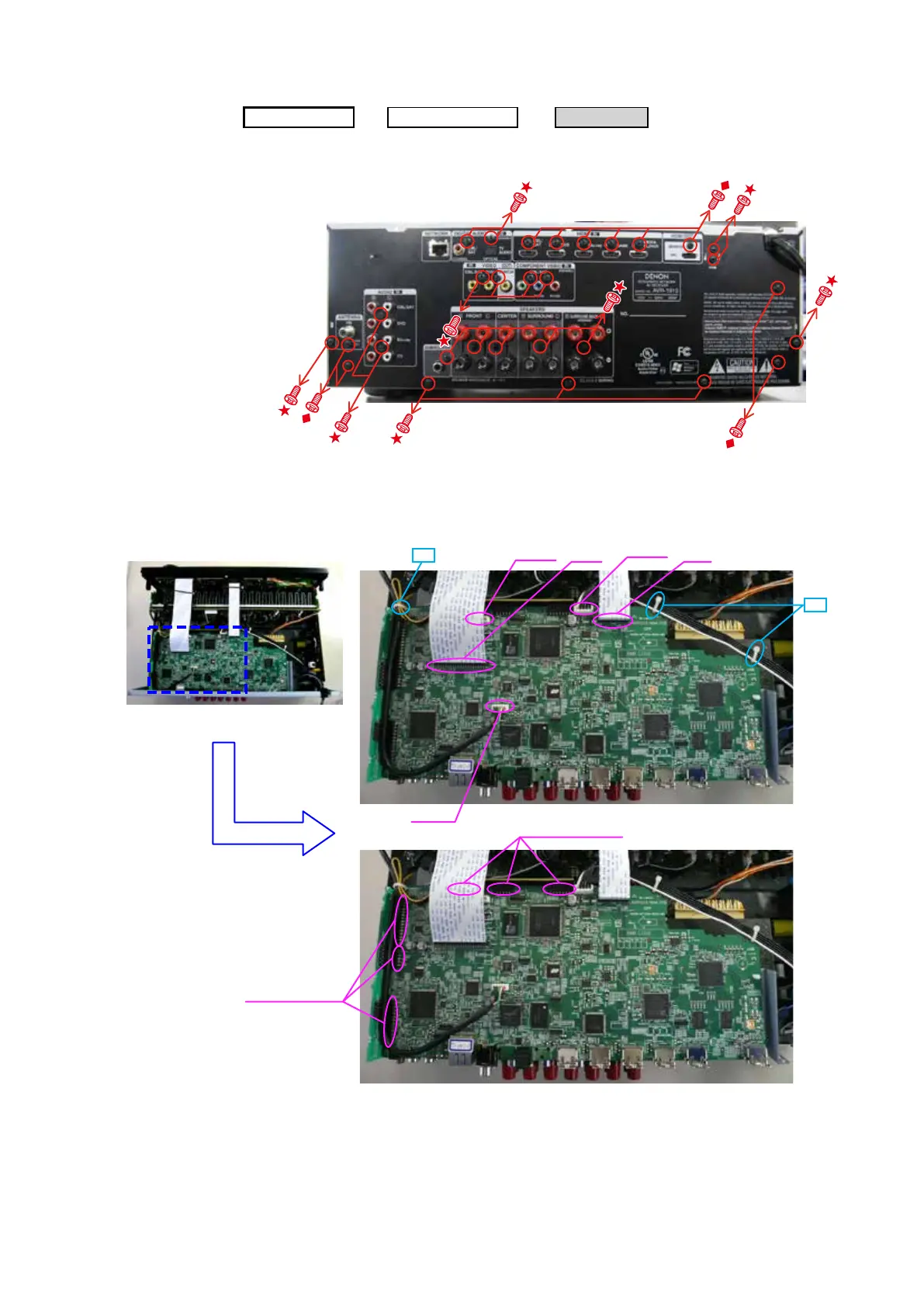

3. PCB HDMI
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Disconnect the connector board.
PCB HDMI
TOP
COVER
BACK CHASSIS
→ →
Proceeding :
Shooting of photograph: A
N3601
N2801
Board to board
Board to board
N3405
cut
cut
FFC FFC
