51

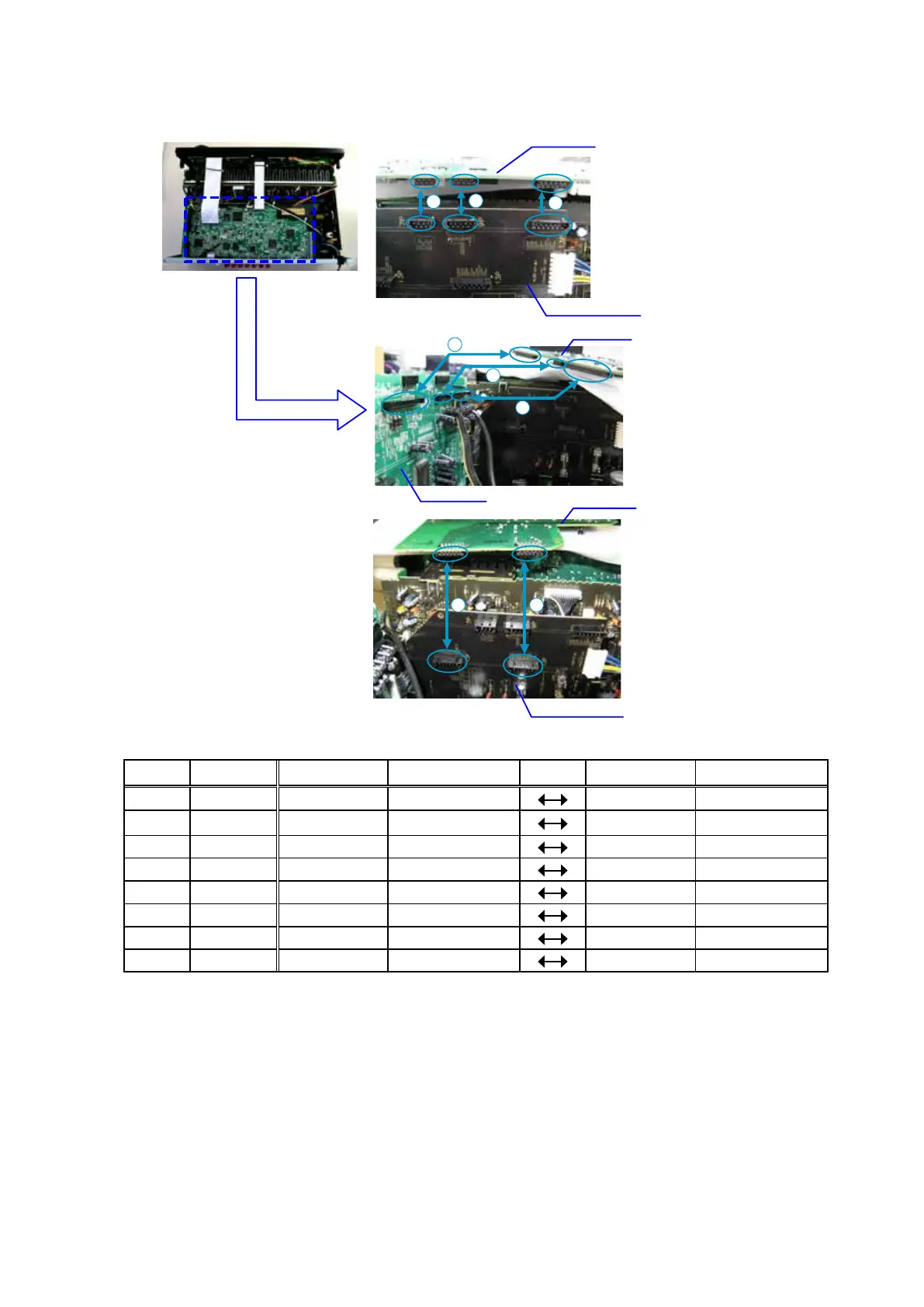

(4) Connect the eight extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
7pin CP3404 FRONT CNT
N3404 HDMI
w
9pin CP3402 FRONT CNT
N3402 HDMI
e
13pin CP3401 FRONT CNT
N3401 HDMI
r
23pin CP4200 INPUT PCB
N3407 HDMI
t
7pin CP4203 INPUT PCB
N3406 HDMI
y
31pin CP4201 INPUT PCB
N3403 HDMI
u
13pin CP5001 FRONT CNT CN5001 VIDEO
i
13pin CP5000 FRONT CNT CN5000 VIDEO
PCB HDMI
PCB FRONT CNT
PCB INPUT
PCB FRONT CNT
PCB HDMI
PCB VIDEO
1
3
4
5
6
7 8
2
