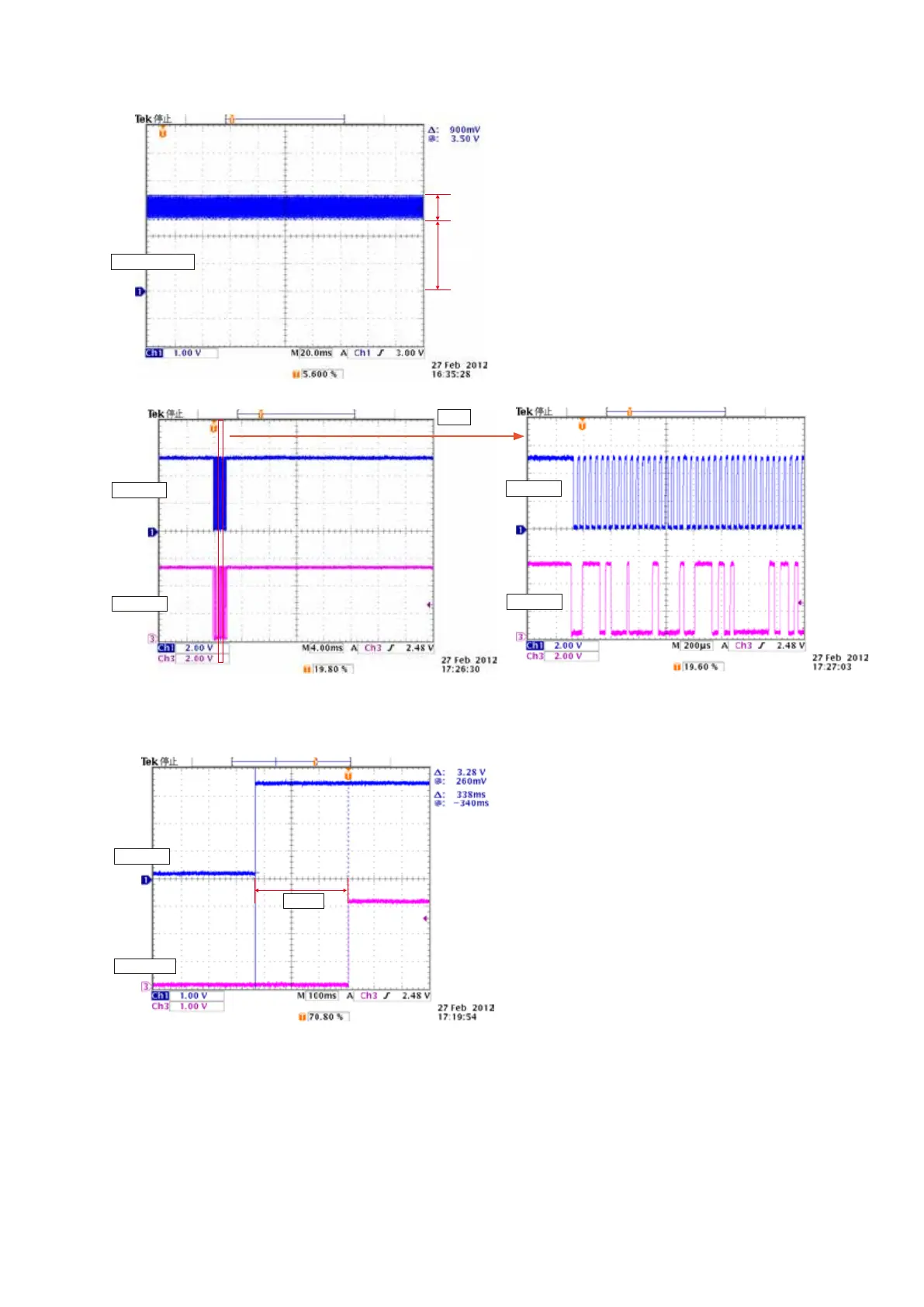

DDC_CLK/DDC_DATA/TMDS : Check items HDMI to HDMI (17)/(19)/(24)

Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (22)

TMDS Waveform

0.9V

2.6V

DDC_CLK

Zoom

DDC_DATA

CEC3.3V

338ms

3002RESET

DDC_CLK

DDC_DATA
