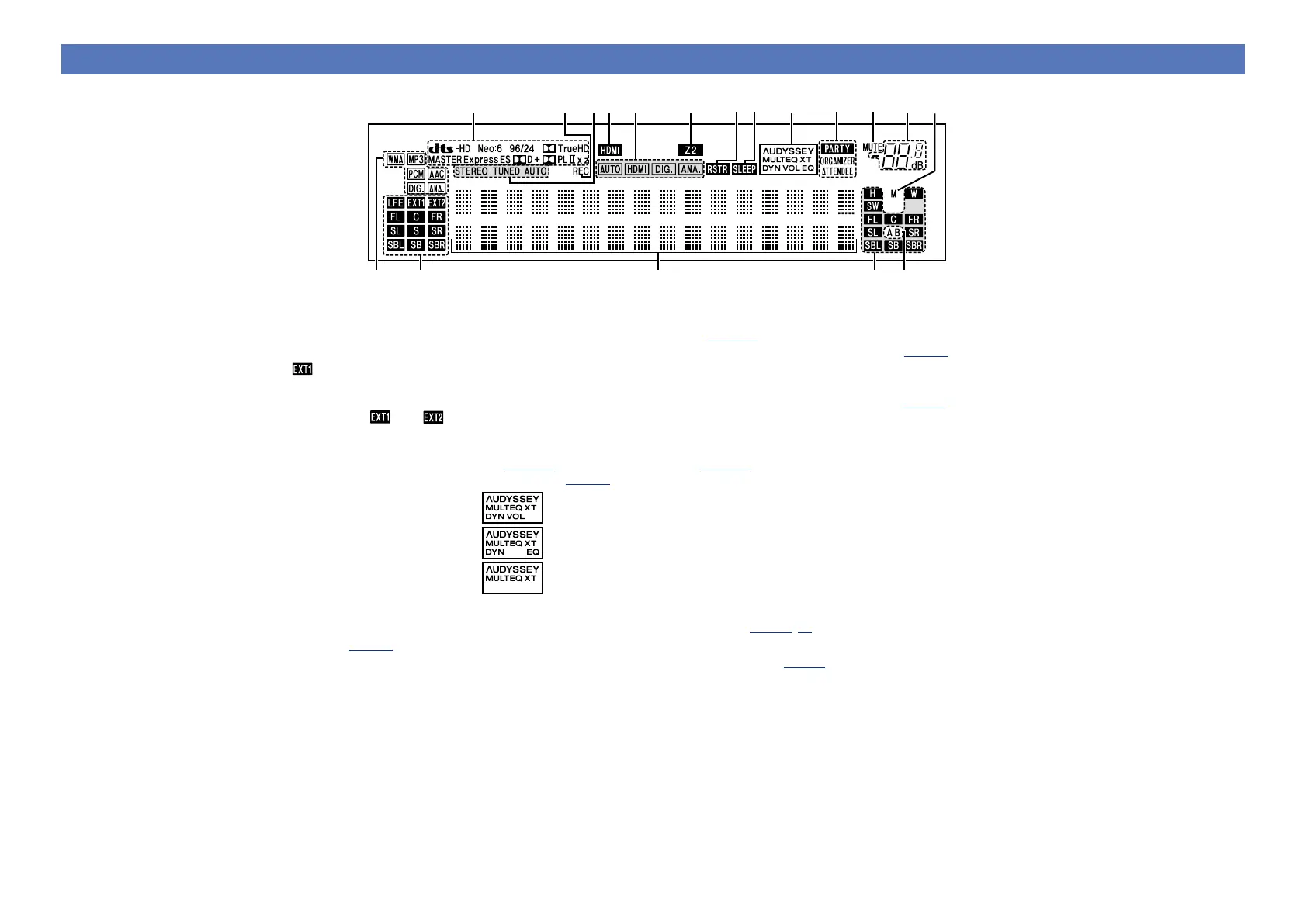

Display
yuiQ4
Q6
Q8 oQ0Q2Q3
Q1
Q5Q7
wq e r t
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the indicator lights when a
signal from an extension channel (a channel other than the front,
center, surround, surround back or LFE channel) is input.
If there are two or more extension channels, the and
indicators light.
e Information display
The input source name, surround mode, setting values and other
information are displayed here.
r Output signal channel indicators
Lights when audio signals are being output from the speakers.
t Front speaker indicator
This lights according to the setting of the front A and B speakers.
y Monitor output indicators
This indicator lights up when an HDMI monitor is connected.
u Master volume indicator
i MUTE indicator
This lights when the mute mode is selected (vpage27).
o PARTY indicators
These light during party mode (vpage 74 “Party mode
function”).
•ORGANIZER
This lights to indicate that party mode has started as Organizer.
•ATTENDEE
This lights to indicate that party mode has started as Attendee.
Q0 Audyssey
®
indicators
Lights up as follows, depending on the setting of “MultEQ
®
XT”,
(vpage 98), “Dynamic EQ
®
” (vpage 98) and “Dynamic
Volume
®
” (vpage98).
When “MultEQ
®
XT”, “Dynamic EQ
®
” and
“Dynamic Volume
®
” are “ON”.
When “MultEQ
®
XT” and “Dynamic EQ
®
” are
“ON” and “Dynamic Volume
®
” is “OFF”.
When “MultEQ
®
XT” is “ON” and “Dynamic EQ
®
”
and “Dynamic Volume
®
” are “OFF”.
Q1 Sleep timer indicator
This lights when the sleep mode is selected (vpage69, 81).
Q2 RESTORER indicator
This lights when the RESTORER mode is selected (vpage99).
Q3 Multi-zone indicators
This lights up when ZONE2 (separate room) power is turned on
(vpage80).
Q4 Input mode indicators
Set the audio input modes for the different input sources
(vpage91).
Q5 HDMI indicator
This lights when playing using HDMI connections.
Q6 Tuner reception mode indicators
These light according to the reception conditions when the input
source is set to “TUNER”.
STEREO : In the FM mode, this lights up when receiving stereo
broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
AUTO : Lights up when in the auto tuning mode.
Q7 Recording output source indicator
This lights when the REC OUT mode is selected.
Q8 Decoder indicators
These light when the respective decoders are operating.
Basic version
Advanced version
InformationInformation

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
