Denon AVR-2312 Owner's Manual

66

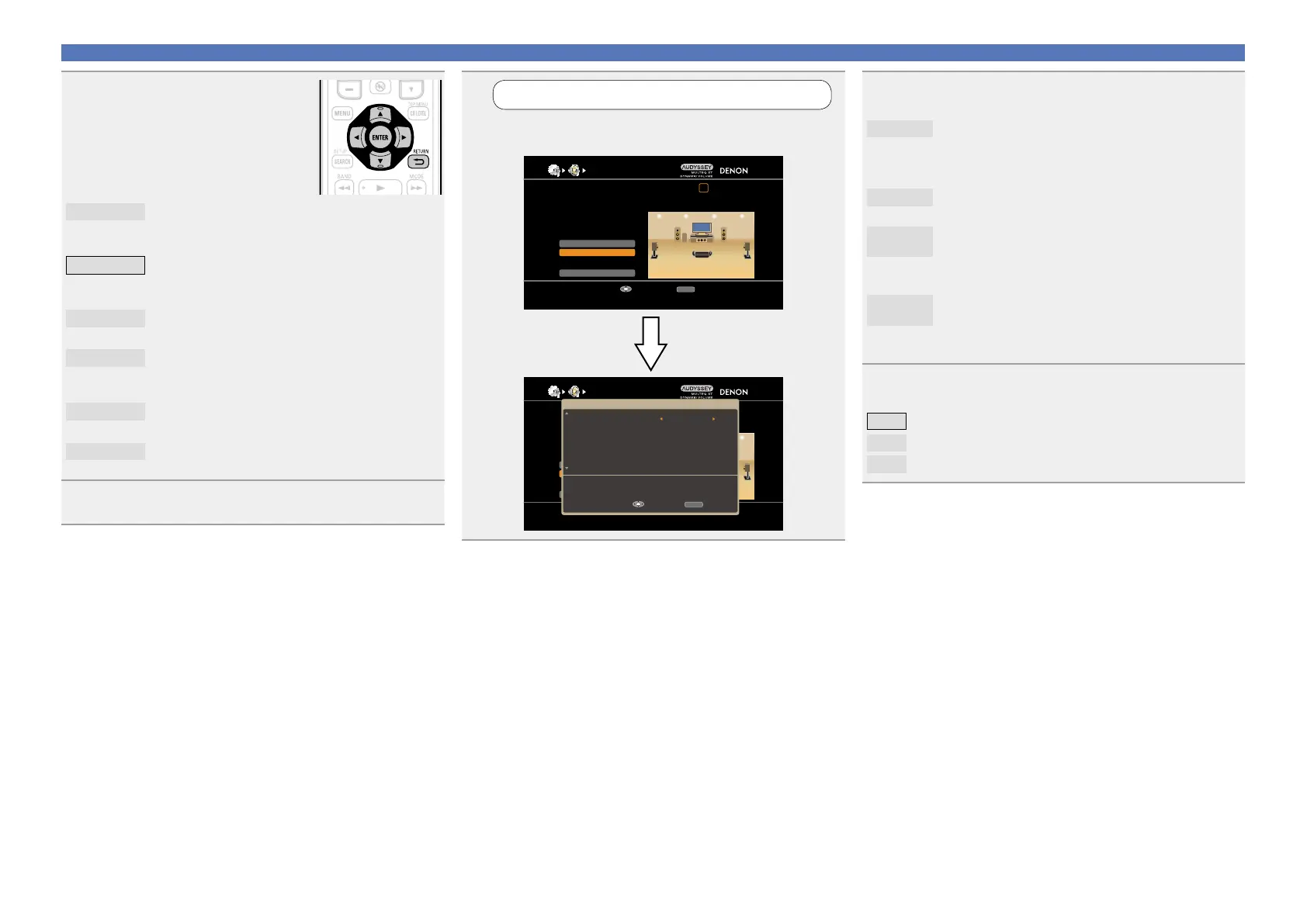

Set up speakers
6
Set up “Channel Select”
Use ui to select “Channel Select”, and then press
ENTER.
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
Amp Assign
RETURN
Auto Setup Start
Channel Select
STEP1 Preparation
Connect the speakers and place them according
to the recommendations in the manual,
Set the following items
If necessary.
Enable skip of measuring unused channels to reduce time
Enter Cancel
Subwoofer Measure
RETURN
Enter
Cancel
Measure subwoofer channel
Channel Select
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
Amp Assign
RETURN
Auto Setup Start
Channel Select
STEP1 Preparation
Connect the speakers and place them according
to the recommendations in the manual,
Set the following items
If necessary.
Enable skip of measuring unused channels to reduce time
Enter Cancel
7
Use ui to select a channel.
Front
Select for setting the front speakers to be used. In this
case, go to step 8.
•“Front” can be set when “Amp Assign” is set to
“Front B”.
Subwoofer
Select for no subwoofers to be used. In this case, go
to step 9.
Surround
Back
Select the number of surround back speakers to be
used. In this case, go to step 10.
•“Surround Back” can be set when “Amp Assign” is
set to “NORMAL”.
Front
Height
Select for no front height speakers to be used. In this
case, go to step 11.
•“Front Height” can be set when “Amp Assign” is set
to “F.Height”.
8
Press o p to select a front speaker.
A
Select this to use front speaker A.
B
Select this to use front speaker B.
A+B
Select this to use front speakers A and B simultaneously.
4
Use o p to select the
conguration of the connected
speakers.
NORMAL
Select the “NORMAL” setting to perform 7.2-channel
playback using the surround back or front height
speakers.
ZONE2
Select the “ZONE2” setting to assign the unit’s built-
in power amplifier for ZONE2 and output the audio
in stereo.
Bi-AMP
Select the “Bi-AMP” setting to connect the front
speakers via the bi-amp connection.
2CH
When you perform 2-channel playback in the DIRECT
or STEREO mode, select the “2CH” setting to use
the other front speakers for playback.
Front B
Select the “Front B” setting to use the second set of
front speakers for playback.
F.Height
Select the “F.Height” setting to use the front height
speaker for playback.
5
Press RETURN B to exit the “Amp Assign” setting.
Basic version
Advanced version
Information
Advanced version
vSee overleaf

Denon AVR-2312 Specifications

General

Impedance	8 Ω
Speaker selector	A+B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@8 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Internet radio services supported	Last.fm, Napster
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Display	VFD
HDMI version	1.4a
Product color	Black
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPad, iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	382 mm
Width	434 mm
Height	167 mm
Weight	11000 g
