Denon AVR-2803 Service Manual

+11.6V
-15V
+12V
+15V
-25.4V
+24.5V
+5V
+20V
-11.4V
-5V
+5V
+11.4V
+9.7V
+5V
+15V
+53V
-53V
-53V
+27.5V
+54V
+1.1V
-1.1V
-54V
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H

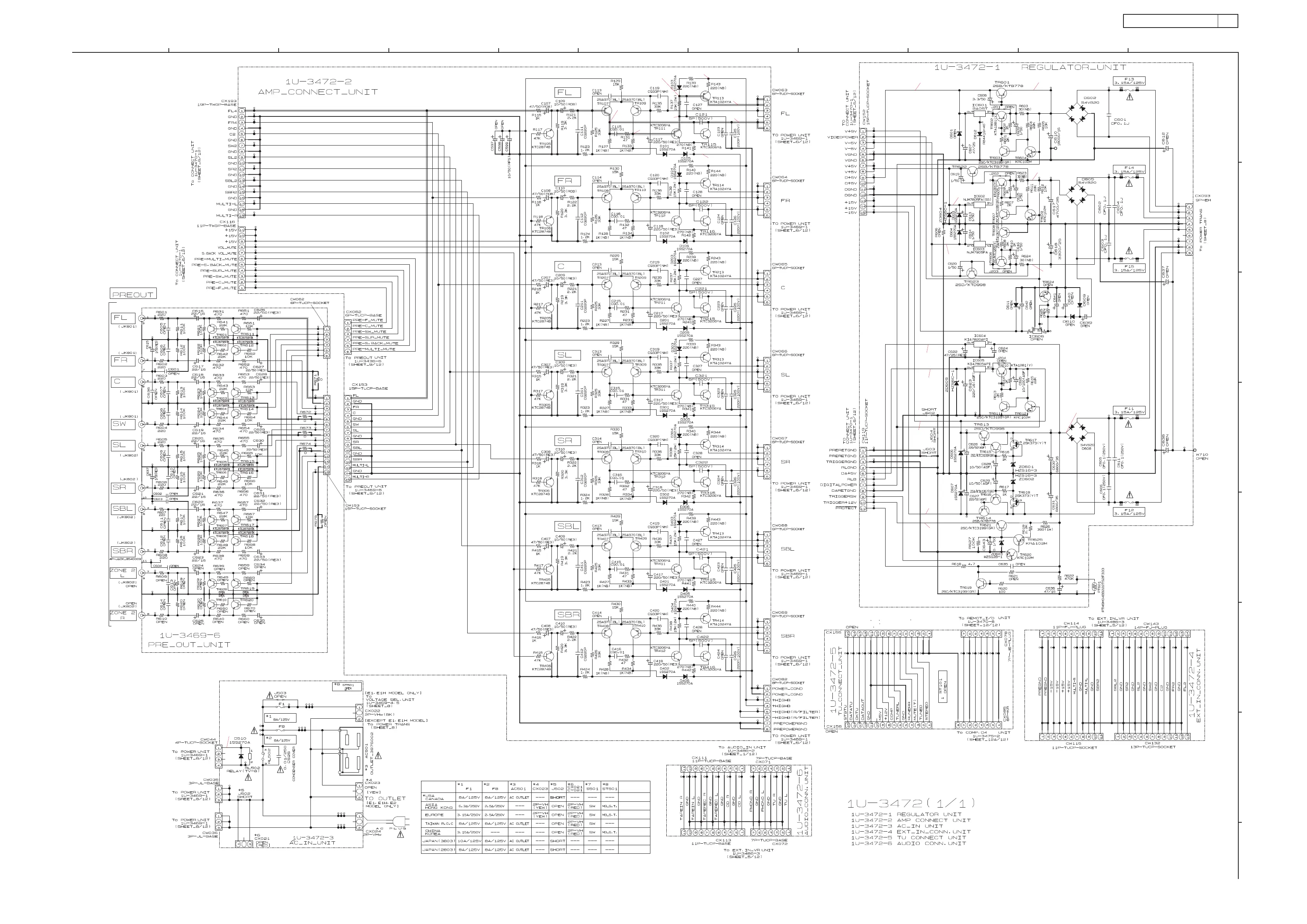

SCHEMATIC DIAGRAMS (7/12) (9/12)
AVR-2803/983/AVC-2870
108
SCHEMATIC DIAGRAMS (7/12) (9/12)
1U-3469-6
1U-3472-1
1U-3472-2
1U-3472-3
1U-3472-4
1U-3472-5
1U-3472-6
(For Japan model)
108
(9/12)

Denon AVR-2803 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Channels	7.1
Dolby Support	Dolby Digital, Dolby Pro Logic II
Digital Inputs	2 coaxial, 3 optical
Weight	14.5 kg
Type	AV Receiver
Output Power per Channel	90 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity	200 mV
Input Impedance	47 kOhms
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kOhms
Tuner Frequency Range	FM: 87.5 - 108 MHz, AM: 522 - 1611 kHz
DTS Support	DTS, DTS-ES, DTS Neo:6
Outputs	Composite: 2, Component: 1
Video outputs	Composite: 2
