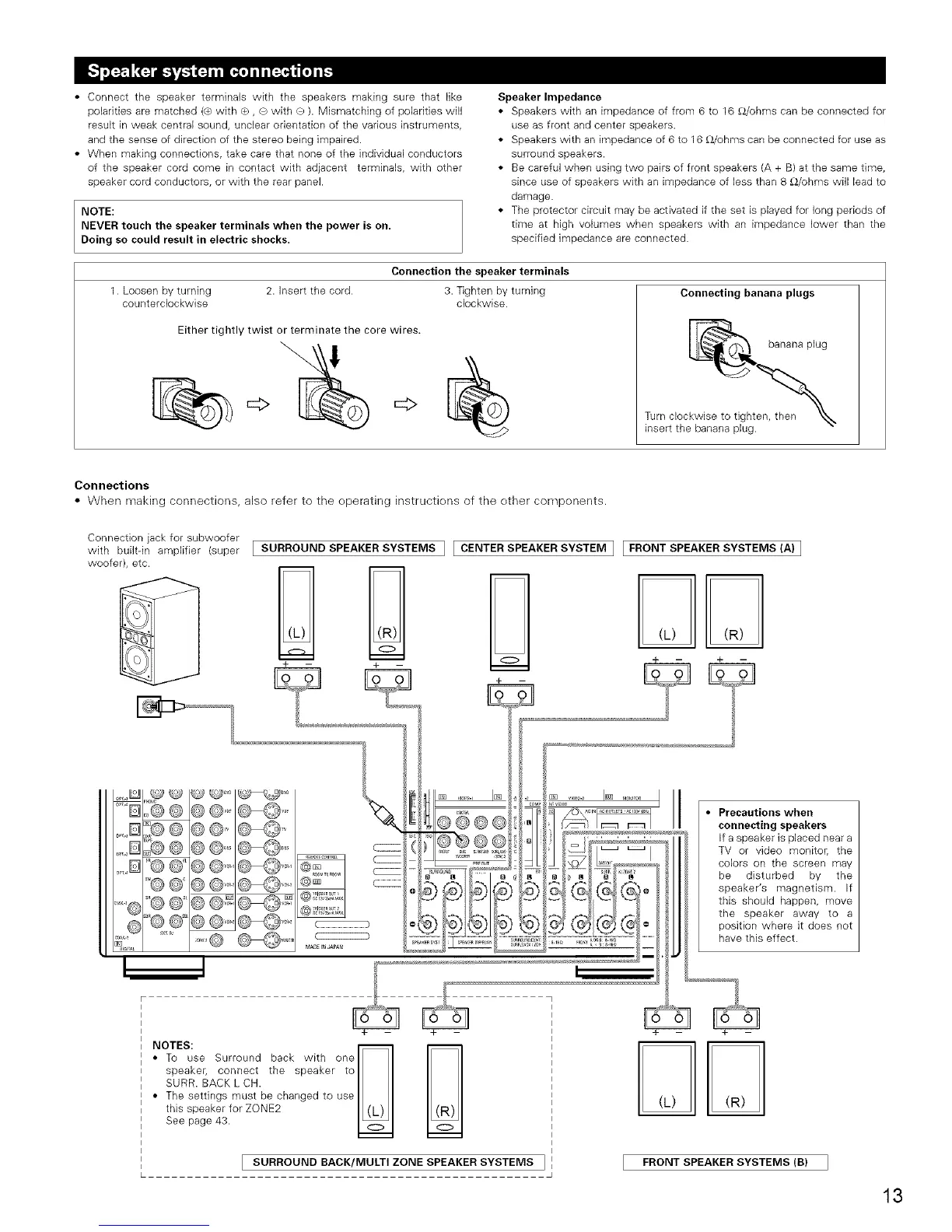

• Connect the speaker terminals with the speakers making sure that like
polarities are matched (® with _+_,O with ® ). Mismatching of polarities will
result in weak central sound, unclear orientation of the various instruments,
and the sense of direction of the stereo being impaired.
• When making connections, take care that none of the individual conductors
of the speaker cord come in contact with adjacent terminals, with other
speaker cord conductors, or with the rear panel.
NOTE:
NEVER touch the speaker terminals when the power is on.
Doing so could result in electric shocks.
Speaker Impedance
• Speakers with an impedance of from 6 to 16 £Z/ohms can be connected for
use as front and center speakers.
• Speakers with an impedance of 6 to 16 £Z/ohms can be connected for use as
surround speakers.
• Be careful when using two pairs of front speakers (A + B) at the same time,
since use of speakers with an impedance of less than 8 £Z/ohms will lead to
damage.
• The protector circuit may be activated if the set is played for long periods of
time at high volumes when speakers with an impedance lower than the
specified impedance are connected.
Connection the speaker terminals
1. Loosen by turning 2. Insert the cord.
counterclockwise
Either tightly twist or terminate the core wires.
3. Tighten by turning
clockwise.
Connecting banana plugs
banana plug
Turn clockwise to tighten,
insert the banana plug.
Connections
• When making connections, also refer to the operating instructiens of the other components.
Connection jack for subwoofer
with built-in amplifier (super [ SURROUND SPEAKER SYSTEMS I [ CENTER SPEAKER SYSTEM ] [ FRONT SPEAKER SYSTEMS (A) ]
woofer), etc.
NIES;seSurr°undbackw'th°nel l
i speaker, connect the speaker to I ISURR. BACK L CH. I I
The settings must be changed to use I I
this speaker for ZONE2 I (L) I
See page 43. I_1
[ SURROUND BACK/MULTI ZONE SPEAKER SYSTEMS ]
FRONT SPEAKER SYSTEMS (B)
13
